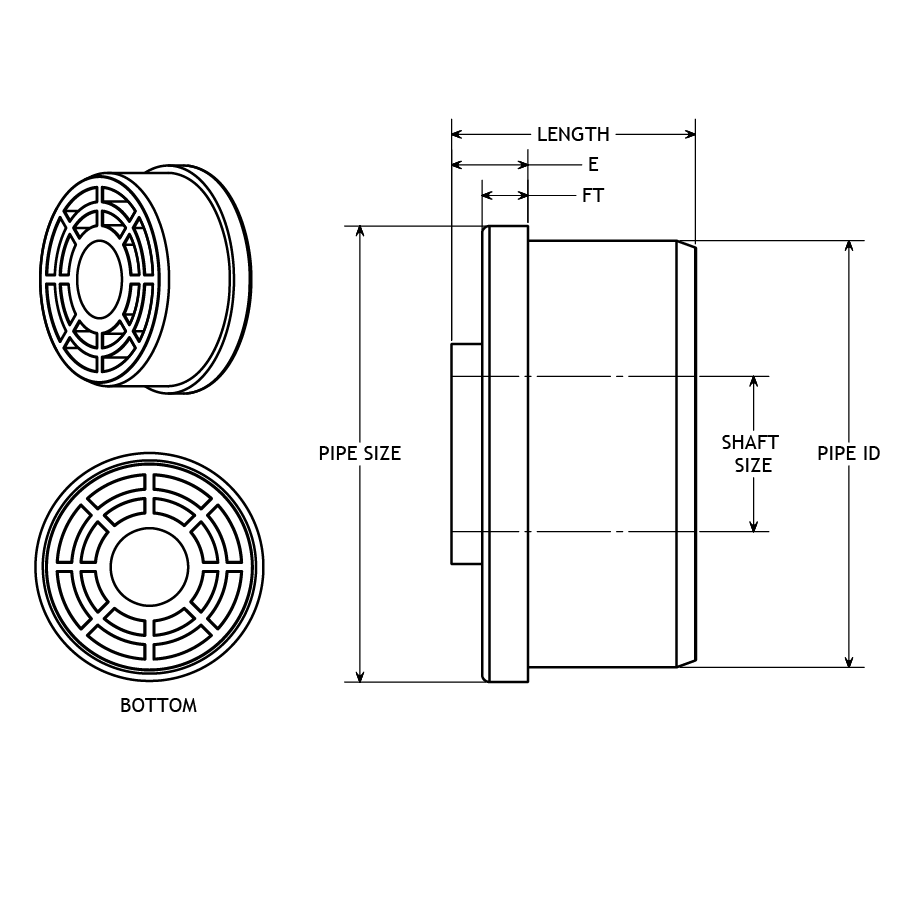

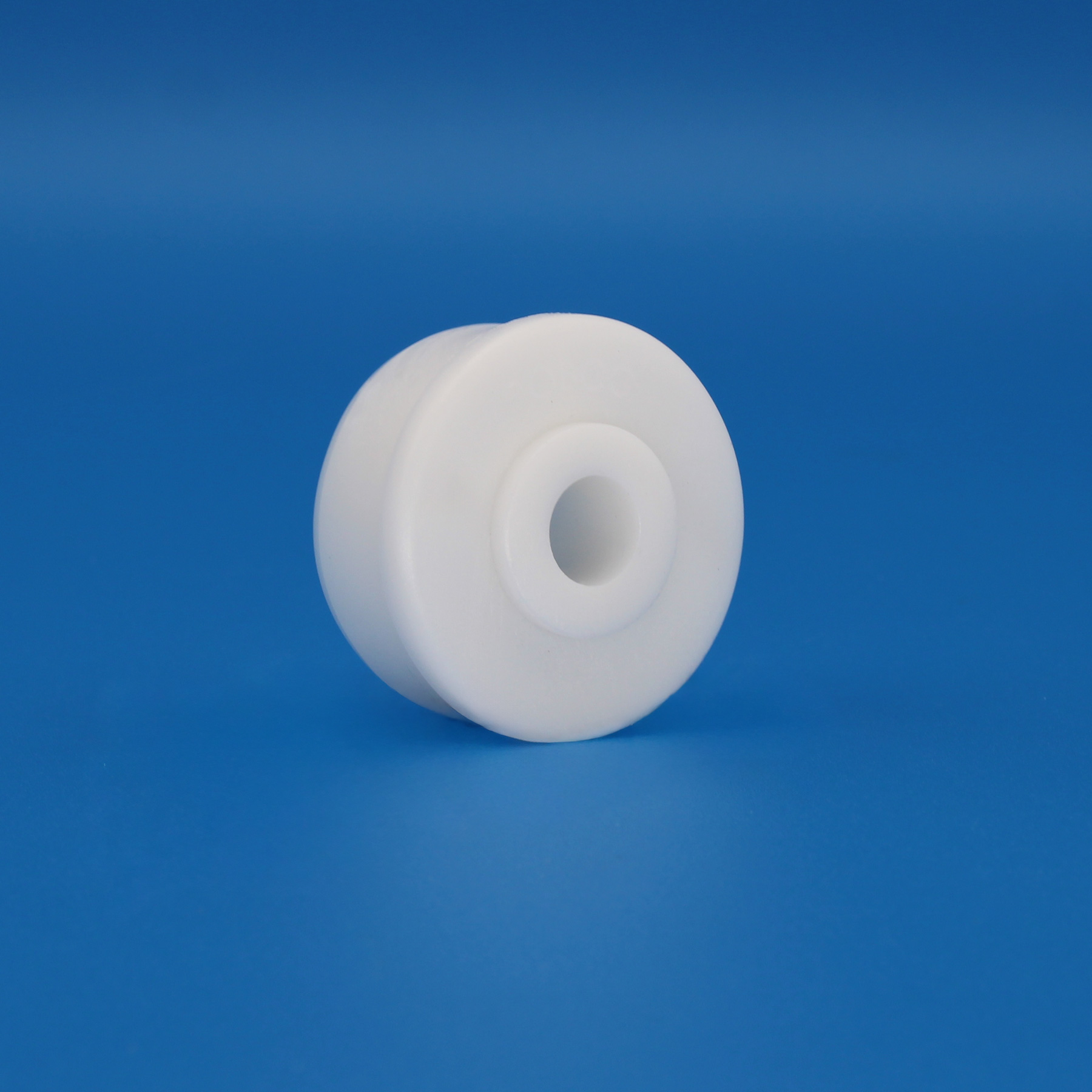

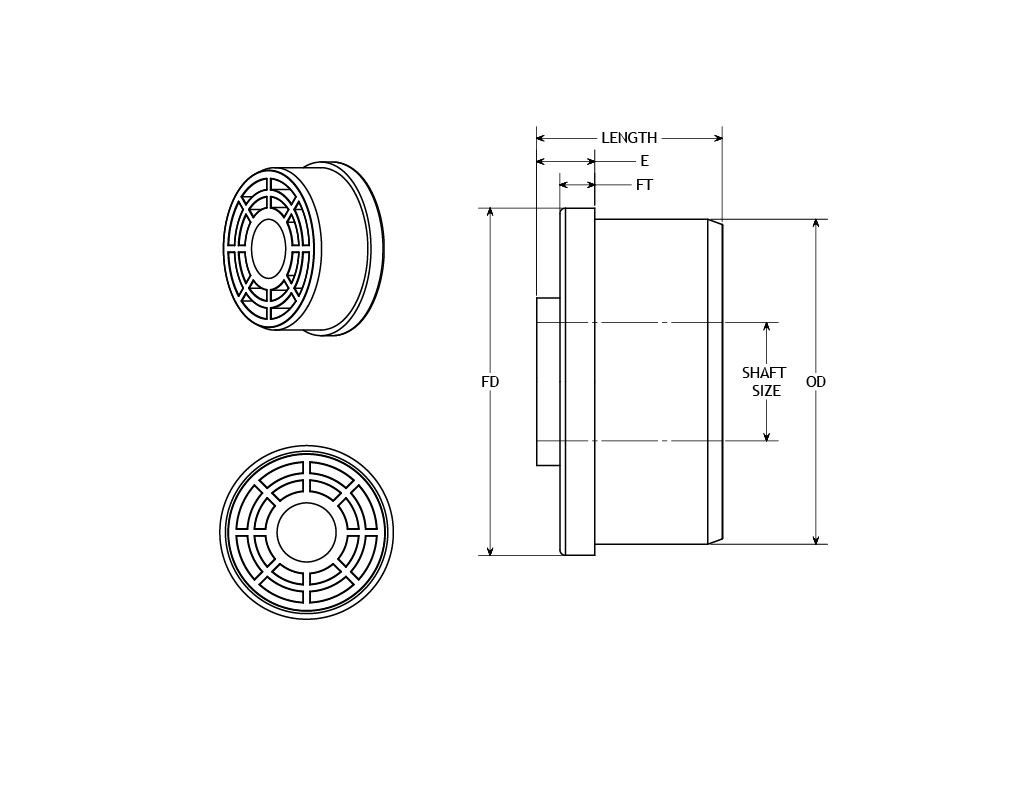

Delrin Roll End Bearings
| Part No. | Bore/Shaft Size | Tubing Gauge | OD | Material Code | Type | Length | Material | Quantity |
|---|---|---|---|---|---|---|---|---|
| D40P4012 | 3/4" | 2-1/2 Sch. 40 | 2.875 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D40P4010 | 5/8" | 2-1/2 Sch. 40 | 2.875 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D40P4008 | 1/2" | 2-1/2 Sch. 40 | 2.875 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D32P8012 | 3/4" | 2" Sch. 80 | 2.375 O.D | D | Delrin Roll End Bearings | 1" | Delrin | |
| D32P8010 | 5/8" | 2" Sch. 80 | 2.375 O.D | D | Delrin Roll End Bearings | 1" | Delrin | |
| D32P8008 | 1/2" | 2" Sch. 80 | 2.375 O.D | D | Delrin Roll End Bearings | 1" | Delrin | |
| D32P4012 | 3/4" | 2" Sch. 40 | 2.375 O.D | D | Delrin Roll End Bearings | 1" | Delrin | |
| D32P4010 | 5/8" | 2" Sch. 40 | 2.375 O.D | D | Delrin Roll End Bearings | 1" | Delrin | |
| D32P4009 | 9/16" | 2" Sch. 40 | 2.375 O.D | D | Delrin Roll End Bearings | 1" | Delrin | |
| D32P4008 | 1/2" | 2" Sch. 40 | 2.375 O.D | D | Delrin Roll End Bearings | 1" | Delrin | |
| D32P4006 | 3/8" | 2" Sch. 40 | 2.375 O.D | D | Delrin Roll End Bearings | 1" | Delrin | |
| D24P8012 | 3/4" | 1-1/2" Sch. 80 | 1.900 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D24P8010 | 5/8" | 1-1/2" Sch. 80 | 1.900 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D24P8008 | 1/2" | 1-1/2" Sch. 80 | 1.900 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D24P8006 | 3/8" | 1-1/2" Sch. 80 | 1.900 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D24P4010 | 5/8" | 1-1/2" Sch. 40 | 1.900 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D24P4009 | 9/16" | 1-1/2" Sch. 40 | 1.900 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D24P4008 | 1/2" | 1-1/2" Sch. 40 | 1.900 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D24P4006 | 3/8" | 1-1/2" Sch. 40 | 1.900 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D24P4005 | 5/16" | 1-1/2" Sch. 40 | 1.900 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D16P4008 | 1/2" | 1" Sch. 40 | 1.315 O.D. | D | Delrin Roll End Bearings | 5/8" | Delrin | |
| D16P4006 | 3/8" | 1" Sch. 40 | 1.315 O.D. | D | Delrin Roll End Bearings | 5/8" | Delrin | |
| D16P4004 | 1/4" | 1" Sch. 40 | 1.315 O.D. | D | Delrin Roll End Bearings | 5/8" | Delrin | |
| D481112 | 3/4" | 3 11 Ga. | 3.000 O.D. | D | Delrin Roll End Bearings | 1-1/2" | Delrin | |
| D481110 | 5/8" | 3 11 Ga. | 3.000 O.D. | D | Delrin Roll End Bearings | 1-1/2" | Delrin | |
| D481108 | 1/2" | 3 11 Ga. | 3.000 O.D. | D | Delrin Roll End Bearings | 1-1/2" | Delrin | |
| D481612 | 3/4" | 3 16 Ga. | 3.000 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D481610 | 5/8" | 3 16 Ga. | 3.000 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D481608 | 1/2" | 3 16 Ga. | 3.000 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D401612 | 3/4" | 2-1/2" 16 ga. | 2.500 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D401610 | 5/8" | 2-1/2" 16 ga. | 2.500 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D401608 | 1/2" | 2-1/2" 16 ga. | 2.500 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D401812 | 3/4" | 2-1/2 18 Ga. | 2.500 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D401810 | 5/8" | 2-1/2 18 Ga. | 2.500 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D401808 | 1/2" | 2-1/2 18 Ga. | 2.500 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D401806 | 3/8" | 2-1/2 18 Ga. | 2.500 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D361810 | 5/8" | 2-1/4 18 Ga. | 2.250 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D361808 | 1/2" | 2-1/4 18 Ga. | 2.250 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D32EM12 | 3/4" | 2" EMT | 2.197 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D32EM10 | 5/8" | 2" EMT | 2.197 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D32EM08 | 1/2" | 2" EMT | 2.197 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D321612 | 3/4" | 2 16 Ga. | 2.000 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D321610 | 5/8" | 2 16 Ga. | 2.000 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D321608 | 1/2" | 2 16 Ga. | 2.000 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D321606 | 3/8" | 2 16 Ga. | 2.000 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D321812 | 3/4" | 2 18 Ga. | 2.000 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D321810 | 5/8" | 2 18 Ga. | 2.000 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D321808 | 1/2" | 2 18 Ga. | 2.000 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D321806 | 3/8" | 2 18 Ga. | 2.000 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D301612 | 3/4" | 1-7/8 16 Ga. | 1.875 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D301610 | 5/8" | 1-7/8 16 Ga. | 1.875 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D301608 | 1/2" | 1-7/8 16 Ga. | 1.875 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D281612 | 3/4" | 1-3/4 16 Ga. | 1.750 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D281610 | 5/8" | 1-3/4 16 Ga. | 1.750 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D281608 | 1/2" | 1-3/4 16 Ga. | 1.750 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D281606 | 3/8" | 1-3/4 16 Ga. | 1.750 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D24EM10 | 5/8" | 1-1/2" EMT | 1.740 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D24EM08 | 1/2" | 1-1/2" EMT | 1.740 O.D. | D | Delrin Roll End Bearings | 1" | Delrin | |
| D241610 | 5/8" | 1-1/2 16 Ga. | 1.500 O.D. | D | Delrin Roll End Bearings | 7/8" | Delrin | |
| D241608 | 1/2" | 1-1/2 16 Ga. | 1.500 O.D. | D | Delrin Roll End Bearings | 7/8" | Delrin | |
| D241606 | 3/8" | 1-1/2 16 Ga. | 1.500 O.D. | D | Delrin Roll End Bearings | 7/8" | Delrin | |
| D201608 | 1/2" | 1-1/4 16 Ga. | 1.250 O.D. | D | Delrin Roll End Bearings | 5/8" | Delrin | |
| D201606 | 3/8" | 1-1/4 16 Ga. | 1.250 O.D. | D | Delrin Roll End Bearings | 5/8" | Delrin | |
| D201604 | 1/4" | 1-1/4 16 Ga. | 1.250 O.D. | D | Delrin Roll End Bearings | 5/8" | Delrin | |
| D161808 | 1/2" | 1 18 Ga. | 1.000 O.D. | D | Delrin Roll End Bearings | 9/16" | Delrin | |
| D161806 | 3/8" | 1 18 Ga. | 1.000 O.D. | D | Delrin Roll End Bearings | 9/16" | Delrin | |
| D161804 | 1/4" | 1 18 Ga. | 1.000 O.D. | D | Delrin Roll End Bearings | 9/16" | Delrin | |
| D142006 | 3/8" | 7/8 20 Ga. | .875 O.D. | D | Delrin Roll End Bearings | 9/16" | Delrin | |
| D142004 | 1/4" | 7/8 20 Ga. | .875 O.D. | D | Delrin Roll End Bearings | 9/16" | Delrin | |
| D142003 | 3/16" | 7/8 20 Ga. | .875 O.D. | D | Delrin Roll End Bearings | 9/16" | Delrin | |
| D122204 | 1/4" | 3/4 22 Ga. | .750 O.D. | D | Delrin Roll End Bearings | 9/16" | Delrin | |
| D122203 | 3/16" | 3/4 22 Ga. | .750 O.D. | D | Delrin Roll End Bearings | 9/16" | Delrin | |
| D122202 | 1/8" | 3/4 22 Ga. | .750 O.D. | D | Delrin Roll End Bearings | 9/16" | Delrin |
