Blind Bore Roll End Bearings

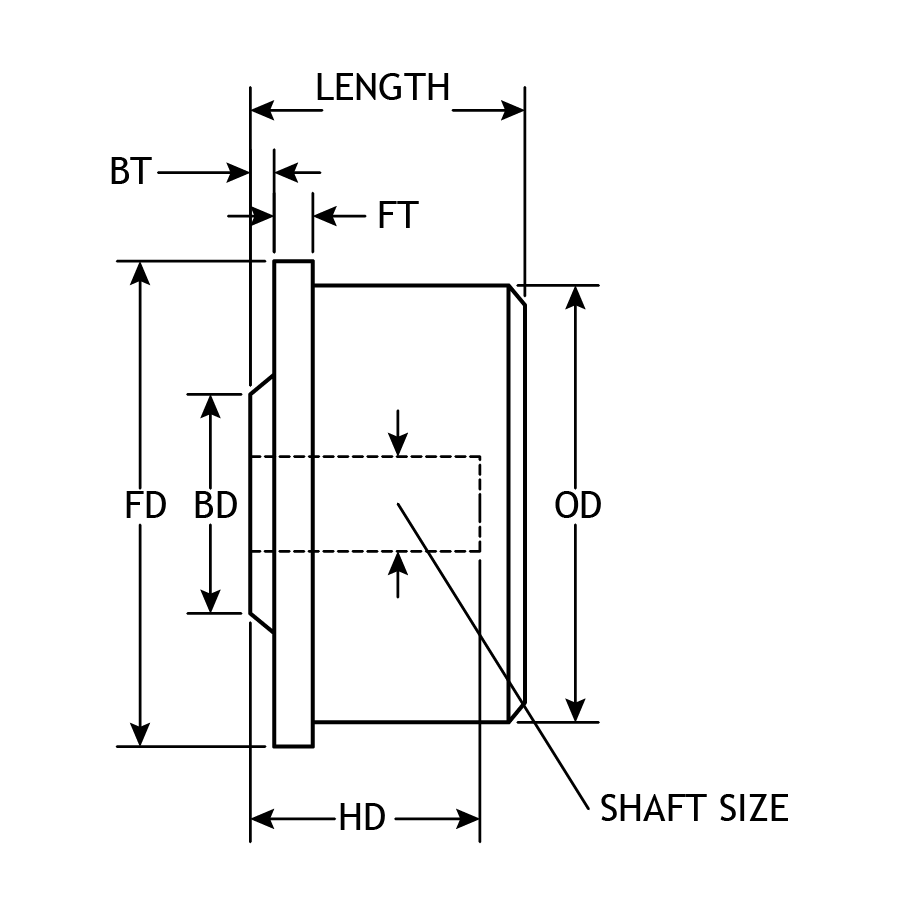

| Part No. | Material | FD (OD of Metal Tubing) | Tubing/ Pipe Gauge | OD (ID of Metal Tubing) | Bore/Shaft Size | Length | Material Code | Type | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|

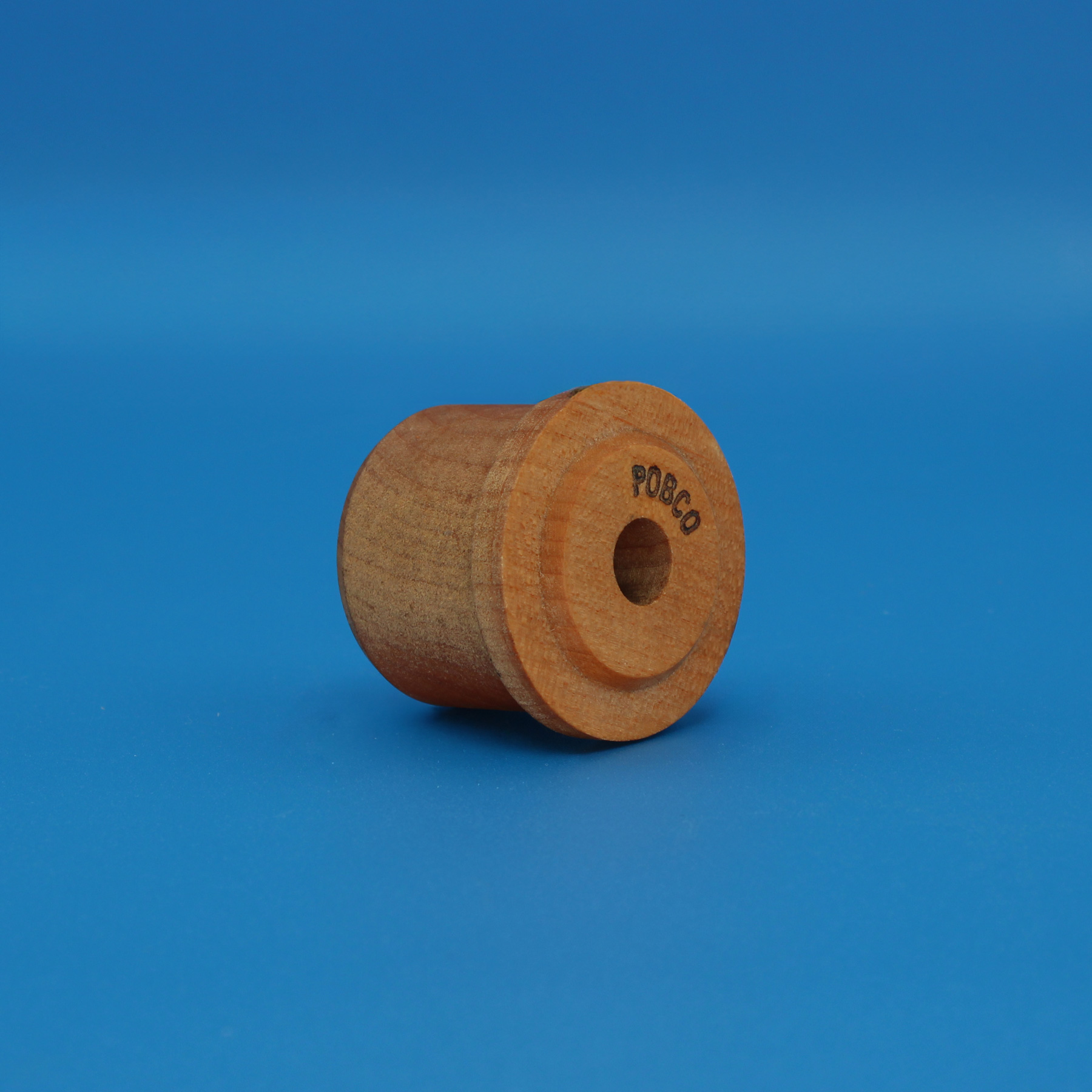

| BLB52T13 | Lube Filled Hardwood | 3-1/4" | 3-1/4" 13 Ga. | 3.06 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB52T16 | Lube Filled Hardwood | 3-1/4" | 3-1/4" 16 Ga. | 3.12 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB48T14 | Lube Filled Hardwood | 3" | 3" 14 Ga. | 2.834 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB48T16 | Lube Filled Hardwood | 3" | 3 16 Ga. | 2.87 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB48T18 | Lube Filled Hardwood | 3" | 3" 18 Ga. | 2.902 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB40P80 | Lube Filled Hardwood | 2.875" | 2-1/2" Sch. 80 | 2.323 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB40P40 | Lube Filled Hardwood | 2.875" | 2-1/2 Sch. 40 | 2.469 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB44T16 | Lube Filled Hardwood | 2-3/4" | 2-3/4" 16 Ga. | 2.62 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB40T11 | Lube Filled Hardwood | 2-1/2" | 2-1/2" 11 Ga. | 2.26 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB40T14 | Lube Filled Hardwood | 2-1/2" | 2-1/2" 14 Ga. | 2.334 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB40T16 | Lube Filled Hardwood | 2-1/2" | 2-1/2" 16 ga. | 2.37 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB40T18 | Lube Filled Hardwood | 2-1/2" | 2-1/2 18 Ga. | 2.402 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB32P80 | Lube Filled Hardwood | 2.375" | 2" Sch. 80 | 1.939 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB32P40 | Lube Filled Hardwood | 2.375" | 2" Sch. 40 | 2.067 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB38T16 | Lube Filled Hardwood | 2-3/8" | 2-3/8" 16 Ga. | 2.245 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB36T14 | Lube Filled Hardwood | 2-1/4" | 2-1/4" 14 Ga. | 2.084 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB36T16 | Lube Filled Hardwood | 2-1/4" | 2-1/4" 16 ga. | 2.12 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB36T18 | Lube Filled Hardwood | 2-1/4" | 2-1/4 18 Ga. | 2.152 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB32EMT | Lube Filled Hardwood | 2.197" | 2.197" 2" EMT | 2.067 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB32T11 | Lube Filled Hardwood | 2" | 2" 11 Ga. | 1.76 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB32T14 | Lube Filled Hardwood | 2" | 2" 14 Ga. | 1.834 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB32T16 | Lube Filled Hardwood | 2" | 2 16 Ga. | 1.87 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB32T18 | Lube Filled Hardwood | 2" | 2 18 Ga. | 1.902 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB24P80 | Lube Filled Hardwood | 1.90" | 1-1/2" Sch. 80 | 1.5 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB24P40 | Lube Filled Hardwood | 1.90" | 1-1/2" Sch. 40 | 1.61 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB28T16 | Lube Filled Hardwood | 1-3/4" | 1-3/4 16 Ga. | 1.62 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB24EMT | Lube Filled Hardwood | 1.74" | 1/74" 1-1/2" EMT | 1.61 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB24T14 | Lube Filled Hardwood | 1-1/2" | 1-1/2" 14 Ga. | 1.334 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BLB24T16 | Lube Filled Hardwood | 1-1/2" | 1-1/2 16 Ga. | 1.37 | Shaft Size = | 2-1/8" | B | Blind Bore Roll End Bearings | ||
| BBB48T14 | Lube Filled Hardwood | 3" | 3" 14 Ga. | 2.834 | Shaft Size = | 1-3/4" | B | Blind Bore Roll End Bearings | ||
| BBB48T16 | Lube Filled Hardwood | 3" | 3 16 Ga. | 2.87 | Shaft Size = | 1-3/4" | B | Blind Bore Roll End Bearings | ||
| BBB40T14 | Lube Filled Hardwood | 2-1/2" | 2-1/2" 14 Ga. | 2.334 | Shaft Size = | 1-5/8" | B | Blind Bore Roll End Bearings | ||
| BBB40T16 | Lube Filled Hardwood | 2-1/2" | 2-1/2" 16 ga. | 2.37 | Shaft Size = | 1-5/8" | B | Blind Bore Roll End Bearings | ||
| BBB32P80 | Lube Filled Hardwood | 2.375" | 2" Sch. 80 | 1.939 | Shaft Size = | 1-5/8" | B | Blind Bore Roll End Bearings | ||
| BBB32P40 | Lube Filled Hardwood | 2.375" | 2" Sch. 40 | 2.067 | Shaft Size = | 1-5/8" | B | Blind Bore Roll End Bearings | ||
| BBB36T14 | Lube Filled Hardwood | 2-1/4" | 2-1/4" 14 Ga. | 2.084 | Shaft Size = | 1-5/8" | B | Blind Bore Roll End Bearings | ||
| BBB36T16 | Lube Filled Hardwood | 2-1/4" | 2-1/4" 16 ga. | 2.12 | Shaft Size = | 1-5/8" | B | Blind Bore Roll End Bearings | ||
| BBB32T14 | Lube Filled Hardwood | 2" | 2" 14 Ga. | 1.834 | Shaft Size = | 1-5/8" | B | Blind Bore Roll End Bearings | ||
| BBB32T16 | Lube Filled Hardwood | 2" | 2 16 Ga. | 1.87 | Shaft Size = | 1-5/8" | B | Blind Bore Roll End Bearings | ||
| BBB24P80 | Lube Filled Hardwood | 1.90" | 1-1/2" Sch. 80 | 1.5 | Shaft Size = | 1-1/2" | B | Blind Bore Roll End Bearings | ||
| BBB24P40 | Lube Filled Hardwood | 1.90" | 1-1/2" Sch. 40 | 1.61 | Shaft Size = | 1-1/2" | B | Blind Bore Roll End Bearings | ||
| BBB28T14 | Lube Filled Hardwood | 1-3/4" | 1-3/4" 14 Ga. | 1.584 | Shaft Size = | 1-1/2" | B | Blind Bore Roll End Bearings | ||
| BBB28T16 | Lube Filled Hardwood | 1-3/4" | 1-3/4 16 Ga. | 1.62 | Shaft Size = | 1-1/2" | B | Blind Bore Roll End Bearings | ||
| BBB20P80 | Lube Filled Hardwood | 1.66" | 1-1/4" Sch. 80 | 1.278 | Shaft Size = | 1-1/2" | B | Blind Bore Roll End Bearings | ||
| BBB20P40 | Lube Filled Hardwood | 1.66" | 1-1/4" Sch. 40 | 1.38 | Shaft Size = | 1-1/2" | B | Blind Bore Roll End Bearings | ||
| BBB24T14 | Lube Filled Hardwood | 1-1/2" | 1-1/2" 14 Ga. | 1.334 | Shaft Size = | 1-1/2" | B | Blind Bore Roll End Bearings | ||
| BBB24T16 | Lube Filled Hardwood | 1-1/2" | 1-1/2 16 Ga. | 1.37 | Shaft Size = | 1-1/2" | B | Blind Bore Roll End Bearings | ||
| BLP52T13 | PLUS | 3-1/4" | 3-1/4" 13 Ga. | 3.06 | Shaft Size = | 2-1/8" | P | Blind Bore Roll End Bearings | ||
| BLP52T16 | PLUS | 3-1/4" | 3-1/4" 16 Ga. | 3.12 | Shaft Size = | 2-1/8" | P | Blind Bore Roll End Bearings | ||
| BLP48T14 | PLUS | 3" | 3" 14 Ga. | 2.834 | Shaft Size = | 2-1/8" | P | Blind Bore Roll End Bearings |
