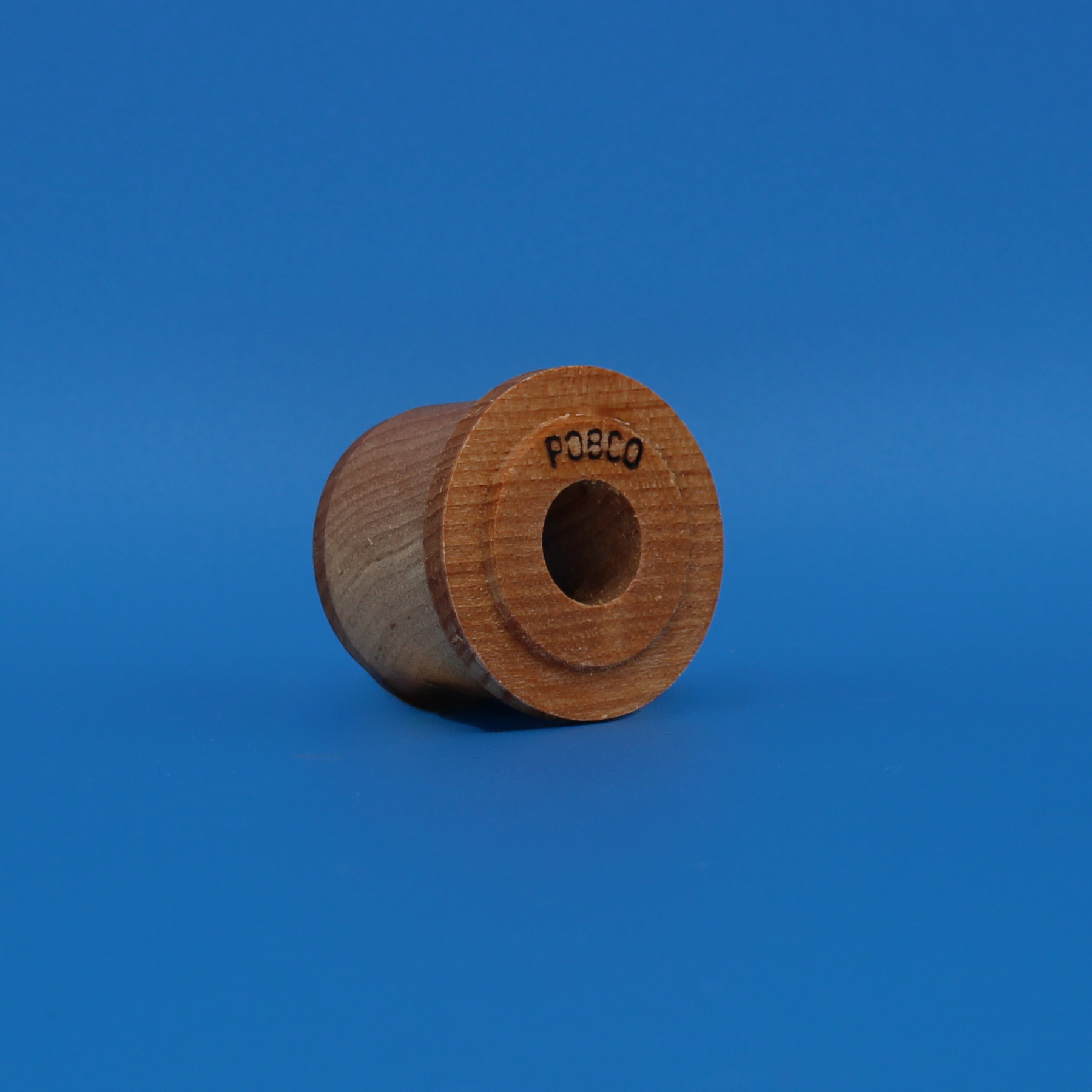

Standard Roll End Bearings

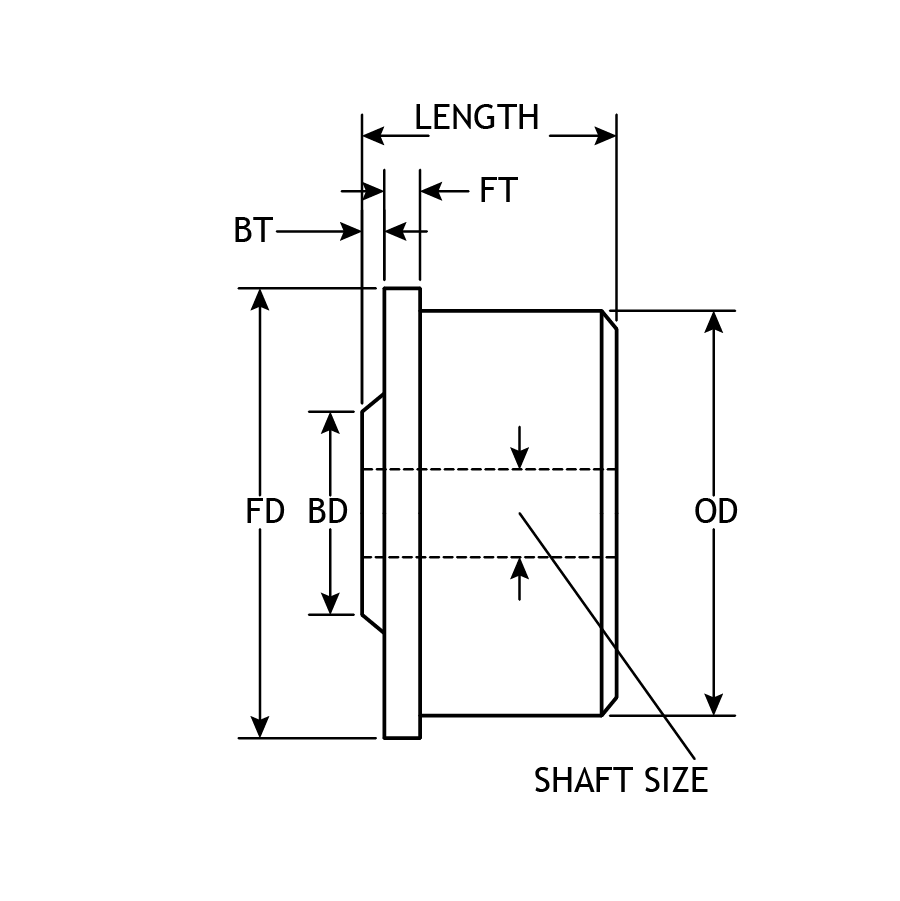

| Part No. | Material | FD (OD of Metal Tubing) | Tubing/ Pipe Gauge | OD (ID of Metal Tubing) | Bore/Shaft Size | Length | Material Code | Type | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|
| STB96P80 | Wood | 6.625" | 6" Sch. 80 | 5.761 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB96P40 | Wood | 6.625" | 6" Sch. 40 | 6.065 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB96T11 | Wood | 6" | 11 GA. | 5.76 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB80P80 | Wood | 5.563" | 5" Sch. 80 | 4.813 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB80P40 | Wood | 5.563" | 5" Sch. 40 | 5.047 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB88T11 | Wood | 5-1/2" | 11 GA. | 5.26 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB80T11 | Wood | 5" | 11 GA. | 4.76 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB64P80 | Wood | 4.5" | 4" Sch. 80 | 3.826 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB64P40 | Wood | 4.5" | 4" Sch. 40 | 4.026 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB64EMT | Wood | 4.5" | 4" EMT | 4.334 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB72T11 | Wood | 4-1/2" | 11 GA. | 4.26 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB56P80 | Wood | 4.0" | 3-1/2" Sch. 80 | 3.364 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB56P40 | Wood | 4.0" | 3-1/2" Sch. 40 | 3.548 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB64T11 | Wood | 4" | 11 GA. | 3.76 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB64T13 | Wood | 4" | 13 GA. | 3.81 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB64T14 | Wood | 4" | 14 GA. | 3.834 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB64T16 | Wood | 4" | 16 GA. | 3.87 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB60T11 | Wood | 3-3/4" | 11 GA. | 3.51 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB60T16 | Wood | 3-3/4" | 16 GA. | 3.62 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB48P80 | Wood | 3.50" | 3" Sch. 80 | 2.9 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB48P40 | Wood | 3.50" | 3" Sch. 40 | 3.068 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB48EMT | Wood | 3.50" | 3" EMT | 3.356 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB56T11 | Wood | 3-1/2" | 11 GA. | 3.26 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB56T13 | Wood | 3-1/2" | 13 GA. | 3.31 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB56T16 | Wood | 3-1/2" | 16 GA. | 3.37 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB52T13 | Wood | 3-1/4" | 13 GA. | 3.06 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB52T16 | Wood | 3-1/4" | 16 GA. | 3.12 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB48T11 | Wood | 3" | 11 GA. | 2.76 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB48T12 | Wood | 3" | 12 GA. | 2.782 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB48T13 | Wood | 3" | 13 GA. | 2.81 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB48T14 | Wood | 3" | 14 GA. | 2.834 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB48T16 | Wood | 3" | 16 GA. | 2.87 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB48T18 | Wood | 3" | 18 GA. | 2.902 | Shaft Size = | 1-3/4" | B | Standard Roll End Bearings | ||
| STB40P80 | Wood | 2.875" | 2-1/2" Sch. 80 | 2.323 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB40P40 | Wood | 2.875" | 2-1/2 Sch. 40 | 2.469 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB46T11 | Wood | 2-7/8" | 11 GA. | 2.635 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB44T11 | Wood | 2-3/4" | 11 GA. | 2.51 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB44T13 | Wood | 2-3/4" | 13 GA. | 2.56 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB44T16 | Wood | 2-3/4" | 16 GA. | 2.62 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB44T18 | Wood | 2-3/4" | 18 GA. | 2.652 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB40T10 | Wood | 2-1/2" | 10 GA. | 2.232 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB40T11 | Wood | 2-1/2" | 11 GA. | 2.26 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB40T12 | Wood | 2-1/2" | 12 GA. | 2.282 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB40T13 | Wood | 2-1/2" | 13 GA. | 2.31 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB40T14 | Wood | 2-1/2" | 14 GA. | 2.334 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB40T16 | Wood | 2-1/2" | 16 GA. | 2.37 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB40T18 | Wood | 2-1/2" | 18 GA. | 2.402 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB32P80 | Wood | 2.375" | 2" Sch. 80 | 1.939 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB32P40 | Wood | 2.375" | 2" Sch. 40 | 2.067 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings | ||
| STB32P10 | Wood | 2.375" | 2" Sch. 10 | 2.157 | Shaft Size = | 1-5/8" | B | Standard Roll End Bearings |
