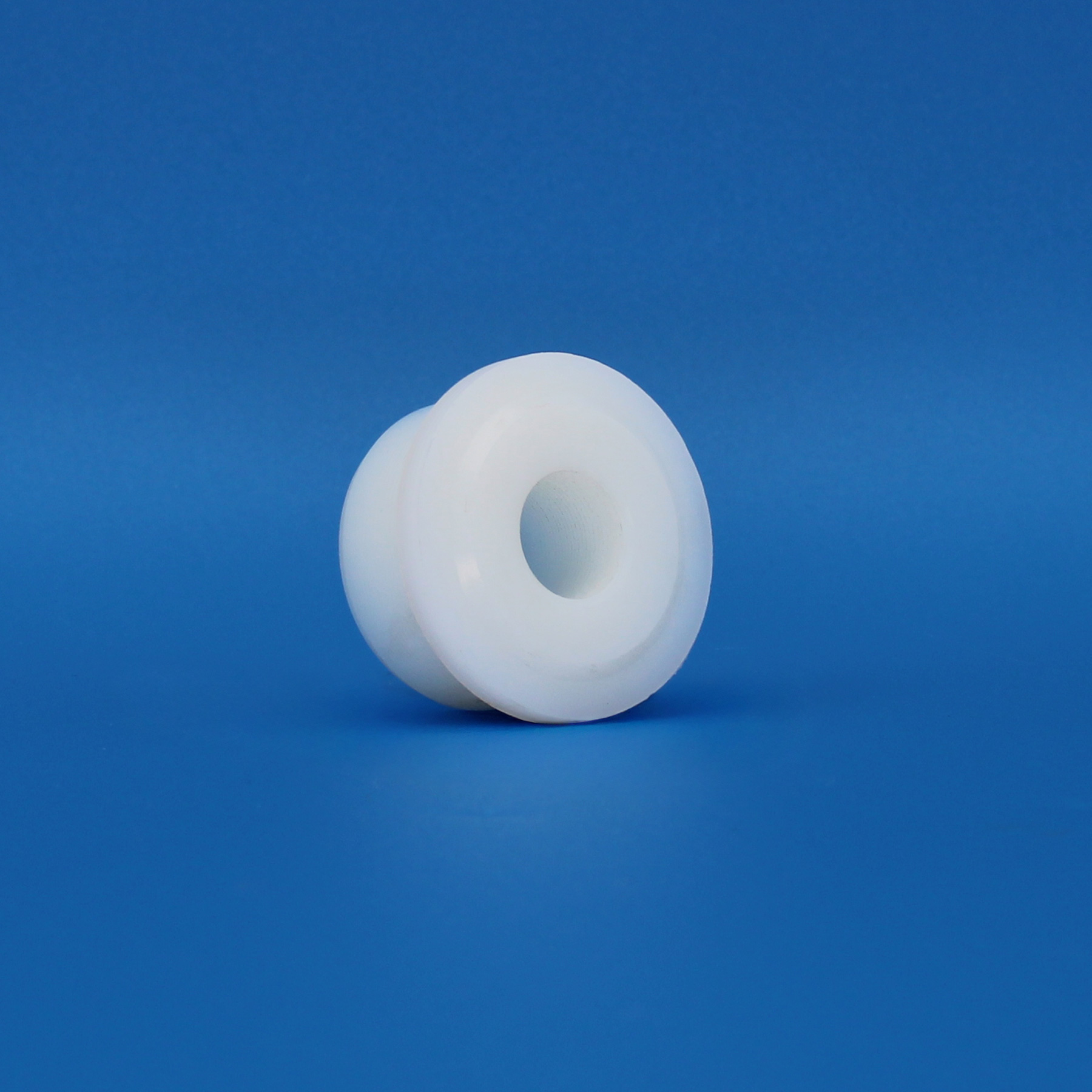

Light Duty Roll End Bearings

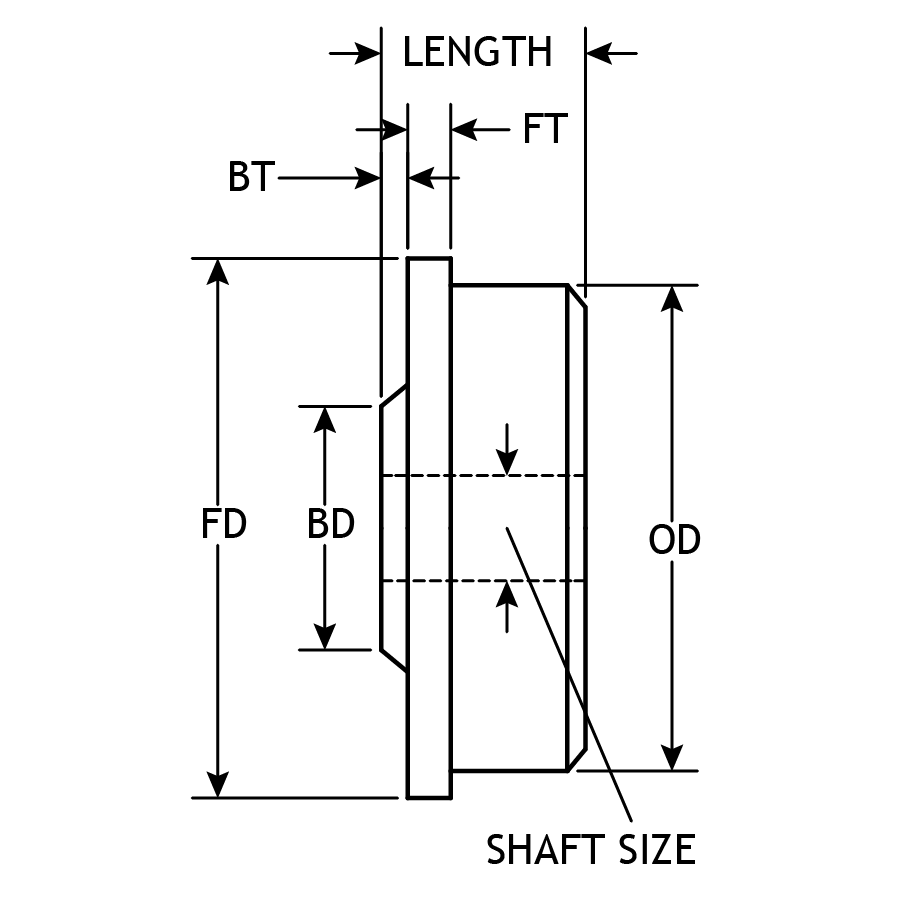

| Part No. | Material | FD (OD of Metal Tubing) | Tubing/ Pipe Gauge | OD (ID of Metal Tubing) | Bore/Shaft Size | Length | Material Code | Type | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|
| LDB40P80 | Wood | 2.875" | 2-1/2" Sch. 80 | 2.323 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB40P40 | Wood | 2.875" | 2-1/2 Sch. 40 | 2.469 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB44T14 | Wood | 2-3/4" | 2-3/4" 14 Ga. | 2.584 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB44T16 | Wood | 2-3/4" | 2-3/4" 16 Ga. | 2.62 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB44T18 | Wood | 2-3/4" | 2-3/4" 18 Ga. | 2.652 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB40T16 | Wood | 2-1/2" | 2-1/2" 16 ga. | 2.37 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB40T18 | Wood | 2-1/2" | 2-1/2 18 Ga. | 2.402 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB40T20 | Wood | 2-1/2" | 2-1/2" 20 Ga. | 2.43 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB32P80 | Wood | 2.375" | 2" Sch. 80 | 1.939 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB32P40 | Wood | 2.375" | 2" Sch. 40 | 2.067 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB32P10 | Wood | 2.375" | 2" Sch. 10 | 2.157 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB36T16 | Wood | 2-1/4" | 2-1/4" 16 ga. | 2.12 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB36T18 | Wood | 2-1/4" | 2-1/4 18 Ga. | 2.152 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB36T20 | Wood | 2-1/4" | 2-1/4" 20 Ga. | 2.18 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB32EMT | Wood | 2.197" | 2.197" 2" EMT | 2.067 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB32T16 | Wood | 2" | 2 16 Ga. | 1.87 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB32T18 | Wood | 2" | 2 18 Ga. | 1.902 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB32T20 | Wood | 2" | 2" 20 Ga. | 1.93 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB24P80 | Wood | 1.90" | 1-1/2" Sch. 80 | 1.5 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB24P40 | Wood | 1.90" | 1-1/2" Sch. 40 | 1.61 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB31T16 | Wood | 1.90" | 1.90" 16 Ga. | 1.77 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB30T16 | Wood | 1-7/8" | 1-7/8 16 Ga. | 1.745 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB30T18 | Wood | 1-7/8" | 1-7/8" 18 Ga. | 1.777 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB30T20 | Wood | 1-7/8" | 1-7/8" 20 Ga. | 1.805 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB28T16 | Wood | 1-3/4" | 1-3/4 16 Ga. | 1.62 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB28T18 | Wood | 1-3/4" | 1-3/4" 18 Ga. | 1.652 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB28T20 | Wood | 1-3/4" | 1-3/4" 20 Ga. | 1.68 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB24EMT | Wood | 1.74" | 1/74" 1-1/2" EMT | 1.61 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB20P80 | Wood | 1.66" | 1-1/4" Sch. 80 | 1.278 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB20P40 | Wood | 1.66" | 1-1/4" Sch. 40 | 1.38 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB26T16 | Wood | 1-5/8" | 1-5/8" 16 Ga. | 1.495 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB26T18 | Wood | 1-5/8" | 1-5/8" 18 Ga. | 1.527 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB26T20 | Wood | 1-5/8" | 1-5/8" 20 Ga. | 1.555 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB20EMT | Wood | 1.51" | 1.51" 1-1/4" EMT | 1.38 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB24T16 | Wood | 1-1/2" | 1-1/2 16 Ga. | 1.37 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB24T18 | Wood | 1-1/2" | 1-1/2" 18 Ga. | 1.402 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB24T20 | Wood | 1-1/2" | 1-1/2" 20 Ga. | 1.43 | Shaft Size = | 1" | B | Light Duty Roll End Bearings | ||
| LDB22T16 | Wood | 1-3/8" | 1-3/8" 16 Ga. | 1.245 | Shaft Size = | 3/4" | B | Light Duty Roll End Bearings | ||
| LDB22T18 | Wood | 1-3/8" | 1-3/8" 18 Ga. | 1.277 | Shaft Size = | 3/4" | B | Light Duty Roll End Bearings | ||
| LDB16P80 | Wood | 1.315 | 1" Sch. 80 | 0.957 | Shaft Size = | 3/4" | B | Light Duty Roll End Bearings | ||
| LDB16P40 | Wood | 1.315 | 1" Sch. 40 | 1.049 | Shaft Size = | 3/4" | B | Light Duty Roll End Bearings | ||
| LDB21T16 | Wood | 1-5/16" | 1-5/16" 16 Ga. | 1.182 | Shaft Size = | 3/4" | B | Light Duty Roll End Bearings | ||
| LDB20T16 | Wood | 1-1/4" | 1-1/4 16 Ga. | 1.12 | Shaft Size = | 3/4" | B | Light Duty Roll End Bearings | ||
| LDB20T18 | Wood | 1-1/4" | 1-1/4" 18 Ga. | 1.152 | Shaft Size = | 3/4" | B | Light Duty Roll End Bearings | ||
| LDB20T20 | Wood | 1-1/4" | 1-1/4" 20 Ga. | 1.43 | Shaft Size = | 3/4" | B | Light Duty Roll End Bearings | ||
| LDB16EMT | Wood | 1.163" | 1.163" 1" EMT | 1.049 | Shaft Size = | 11/16" | B | Light Duty Roll End Bearings | ||
| LDB18T16 | Wood | 1-1/8" | 1-1/8" 16 Ga. | 0.995 | Shaft Size = | 11/16" | B | Light Duty Roll End Bearings | ||
| LDB18T17 | Wood | 1-1/8" | 1-1/8" 17 Ga. | 1.009 | Shaft Size = | 11/16" | B | Light Duty Roll End Bearings | ||
| LDB12P80 | Wood | 1.05" | 3/4" Sch. 80 | 0.742 | Shaft Size = | 11/16" | B | Light Duty Roll End Bearings | ||
| LDB12P40 | Wood | 1.05" | 3/4" Sch. 40 | 0.824 | Shaft Size = | 11/16" | B | Light Duty Roll End Bearings |
