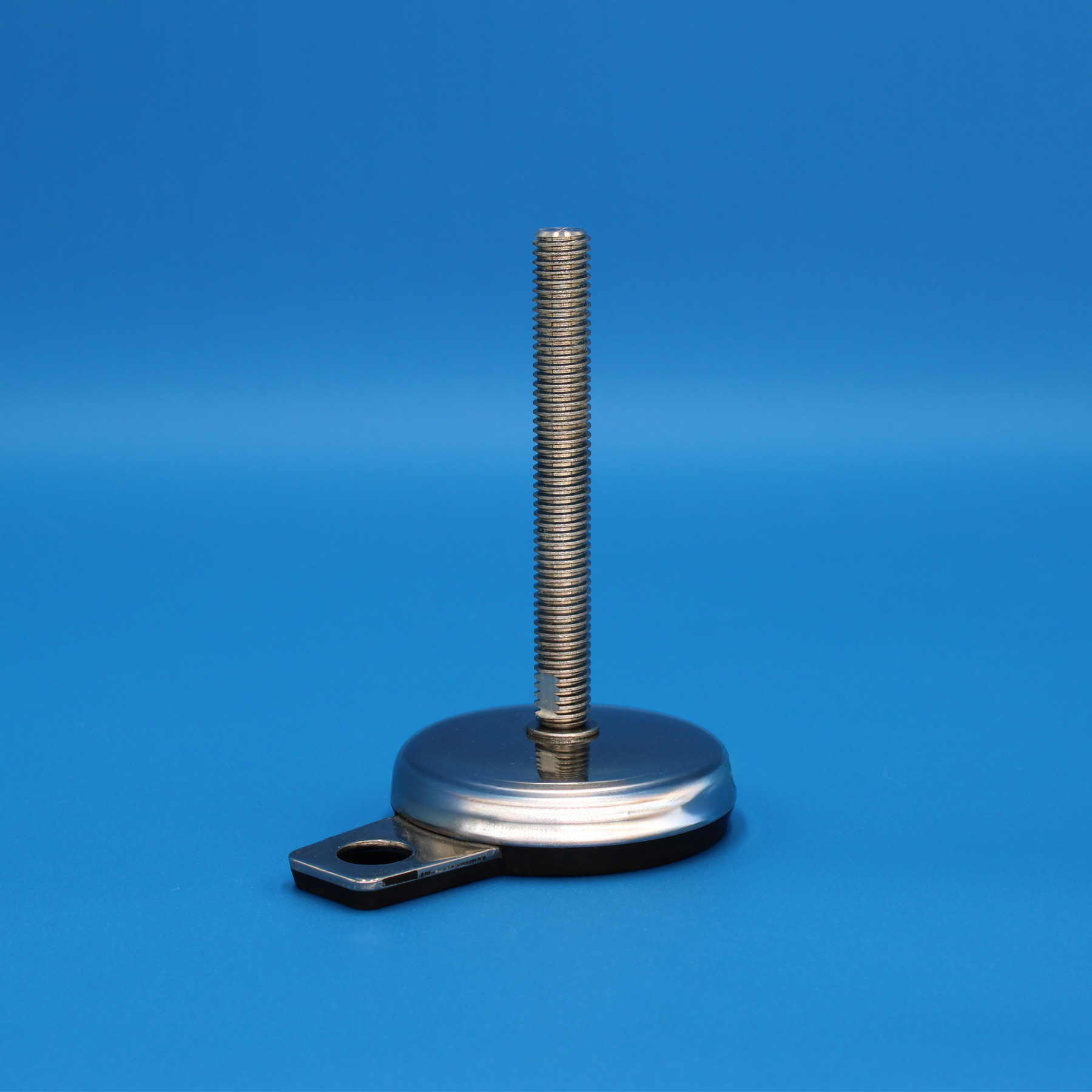

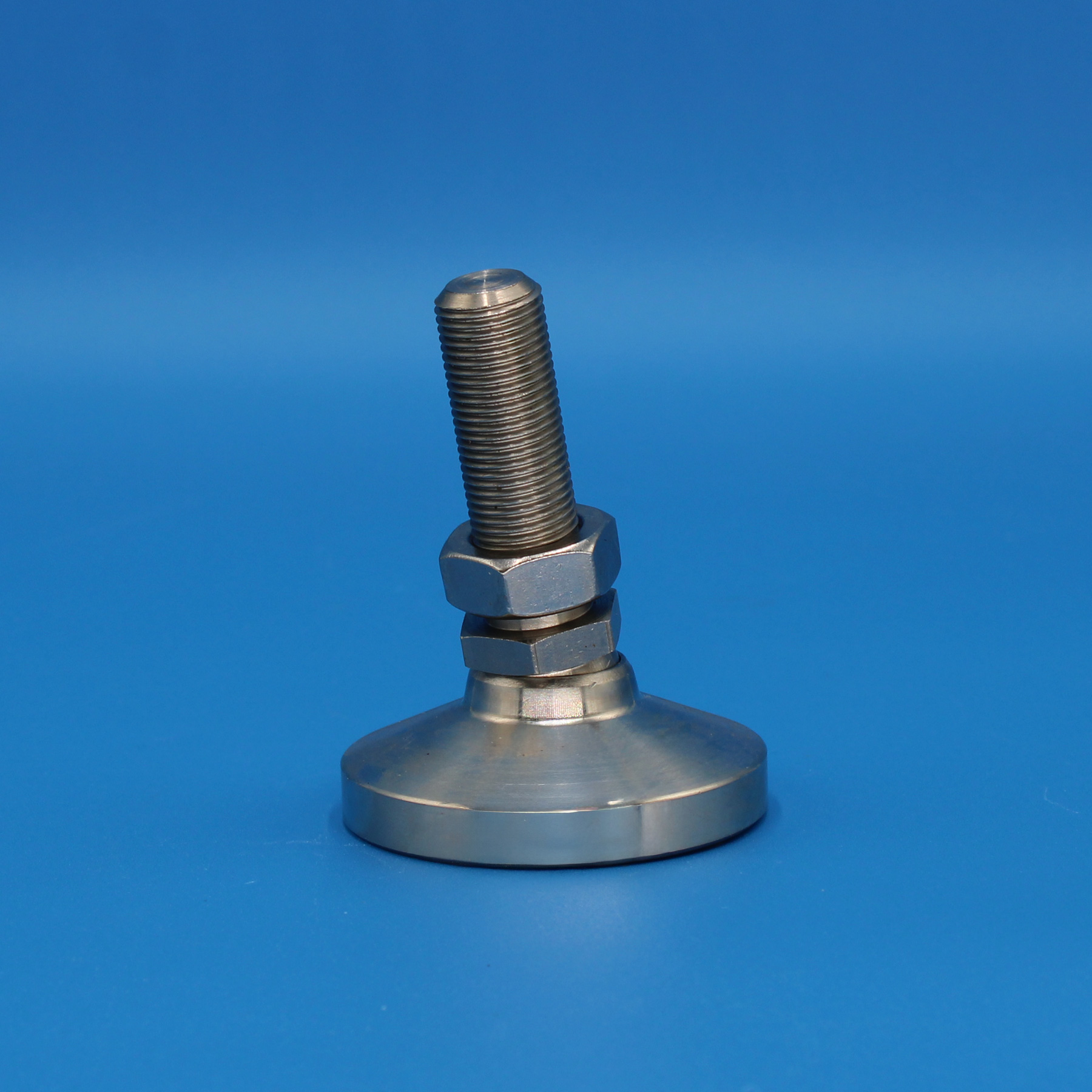

All Metal Leveling Mounts
| Part No. | Base Diameter | Bore/Hole Diameter | Thread Size | Thread Length | Overall Height | Material Code | Color | Type | Material | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| PP1003536 | 3.94" | .59" | 7/8"-9 | 10" | 11.36" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003541 | 3.94" | .59" | 7/8"-9 | 8" | 9.36" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003540 | 3.94" | .59" | 7/8"-9 | 6" | 7.36" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003539 | 3.94" | .59" | 7/8"-9 | 4" | 5.36" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003509 | 3.94" | .59" | 3/4"-10 | 10" | 11.34" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003514 | 3.94" | .59" | 3/4"-10 | 8" | 9.34" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003513 | 3.94" | .59" | 3/4"-10 | 6" | 7.34" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003512 | 3.94" | .59" | 3/4"-10 | 4" | 5.34" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003530 | 3.94" | .59" | 5/8"-11 | 10" | 11.34" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003535 | 3.94" | .59" | 5/8"-11 | 8" | 9.34" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003534 | 3.94" | .59" | 5/8"-11 | 6" | 7.34" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003533 | 3.94" | .59" | 5/8"-11 | 4" | 5.34" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003467 | 2.95” | .59" | 7/8"-9 | 10" | 10.93" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003472 | 2.95” | .59" | 7/8"-9 | 8" | 8.93" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003471 | 2.95” | .59" | 7/8"-9 | 6" | 6.93" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003470 | 2.95” | .59" | 7/8"-9 | 4" | 4.93" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003440 | 2.95” | .59" | 3/4"-10 | 10" | 10.91" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003445 | 2.95” | .59" | 3/4"-10 | 8" | 8.91" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003444 | 2.95” | .59" | 3/4"-10 | 6" | 6.91" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003443 | 2.95” | .59" | 3/4"-10 | 4" | 4.91" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003461 | 2.95” | .59" | 5/8"-11 | 10" | 10.91" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003466 | 2.95” | .59" | 5/8"-11 | 8" | 8.91" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003465 | 2.95” | .59" | 5/8"-11 | 6" | 6.91" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003464 | 2.95” | .59" | 5/8"-11 | 4" | 4.91" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003395 | 2.95” | .59" | 1/2"-13 | 10" | 10.89" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003404 | 2.95” | .59" | 1/2"-13 | 8" | 8.89" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003402 | 2.95” | .59" | 1/2"-13 | 6" | 6.89" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |
| PP1003400 | 2.95” | .59" | 1/2"-13 | 4" | 4.89" | SS | Steel | 304 Stainless Steel Leveling Mount | Stainless Steel | |

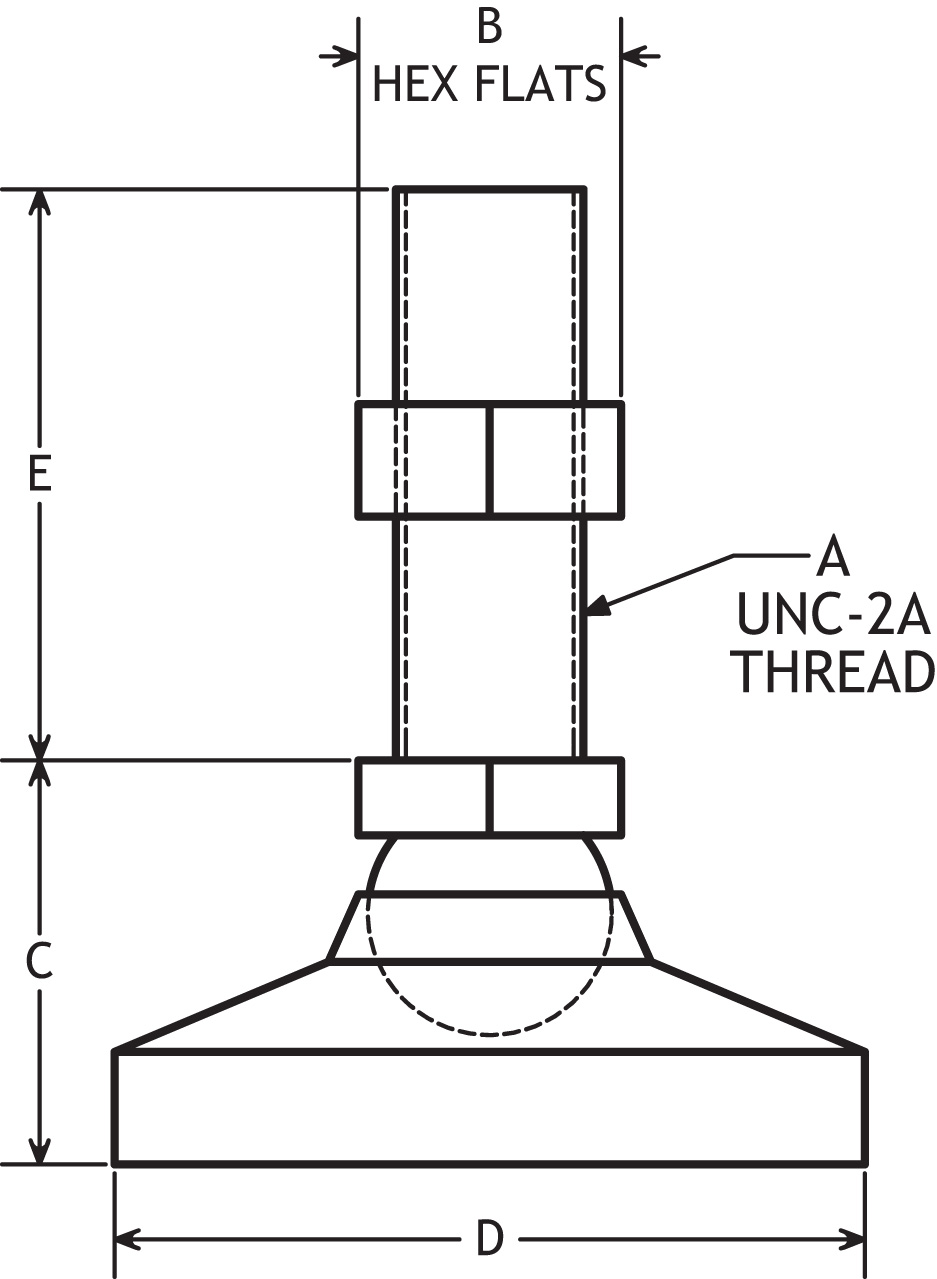

| 13T2LTM | 2-1/2" | N/A | UNC-2A | 2" | 3.25" | SS | Steel | All Metal Leveling Mounts | Stainless Steel | |
| 12T8LTM | 4" | N/A | UNC-2A | 8" | 9.875" | SS | Steel | All Metal Leveling Mounts | Stainless Steel | |
| 12T6LTM | 4" | N/A | UNC-2A | 4-1/4" | 6.125" | SS | Steel | All Metal Leveling Mounts | Stainless Steel | |
| 11T2LTM | 3" | N/A | UNC-2A | 2" | 3.5" | SS | Steel | All Metal Leveling Mounts | Stainless Steel | |
| 10T4LTM | 2-1/2" | N/A | UNC-2A | 4" | 5.25" | SS | Steel | All Metal Leveling Mounts | Stainless Steel | |
| 10T2LTM | 2-1/2" | N/A | UNC-2A | 2" | 3.25" | SS | Steel | All Metal Leveling Mounts | Stainless Steel | |
| 8T2LTM | 1-7/8" | N/A | UNC-2A | 2" | 3.125" | SS | Steel | All Metal Leveling Mounts | Stainless Steel | |
| 6T2LTM | 1-1/4" | N/A | UNC-2A | 2" | 2.875" | SS | Steel | All Metal Leveling Mounts | Stainless Steel | |
| 3T1250LTM | 1" | N/A | UNC-2A | 1-1/4" | 1.95" | SS | Steel | All Metal Leveling Mounts | Stainless Steel | |

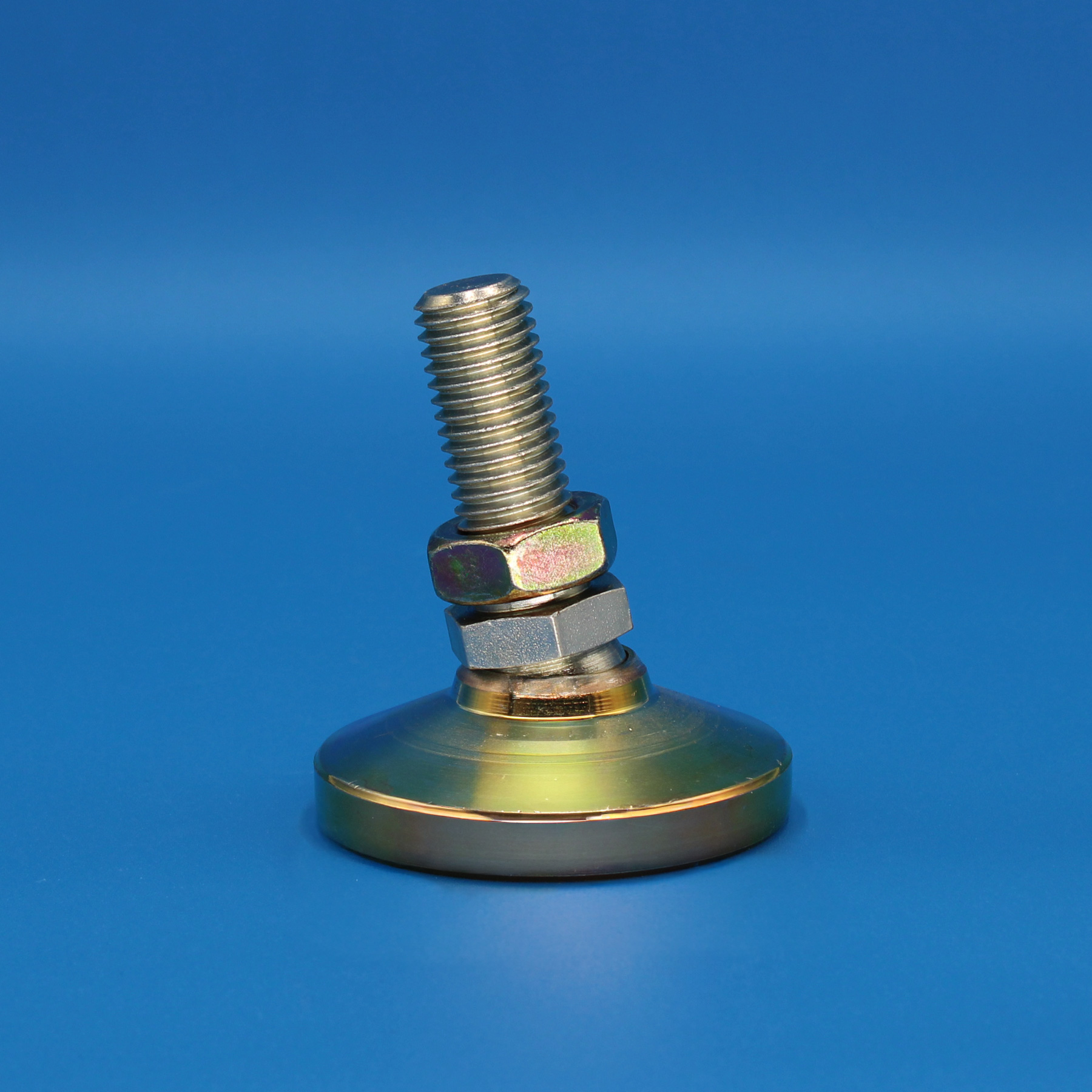

| 1025545 | 4" | N/A | UNC-2A | 8" | 9.875" | S | Zinc/ Steel | All Metal Leveling Mounts | Yellow Zinc Plated Steel | |
| 12T425LIT | 4" | N/A | UNC-2A | 4-1/4" | 6.125" | S | Zinc/ Steel | All Metal Leveling Mounts | Yellow Zinc Plated Steel | |
| 11T2LIT | 3" | N/A | UNC-2A | 2" | 3.5" | S | Zinc/ Steel | All Metal Leveling Mounts | Yellow Zinc Plated Steel | |
| 10T4LIT | 2-1/2" | N/A | UNC-2A | 4" | 5.25" | S | Zinc/ Steel | All Metal Leveling Mounts | Yellow Zinc Plated Steel | |
| 10T2LIT | 2-1/2" | N/A | UNC-2A | 2" | 3.25" | S | Zinc/ Steel | All Metal Leveling Mounts | Yellow Zinc Plated Steel | |
| 8T2LIT | 1-7/8" | N/A | UNC-2A | 2" | 3.125" | S | Zinc/ Steel | All Metal Leveling Mounts | Yellow Zinc Plated Steel | |
| 6T2LIT | 1-1/4" | N/A | UNC-2A | 2" | 2.875" | S | Zinc/ Steel | All Metal Leveling Mounts | Yellow Zinc Plated Steel | |
| 3T1250LIT | 1" | N/A | UNC-2A | 1-1/4" | 1.95" | S | Zinc/ Steel | All Metal Leveling Mounts | Yellow Zinc Plated Steel |
