Guide Rail Snap Ons (Spiral Conveying Options)
| Part No. | Height | Mating Part Number | Material Code | Color | Width | Type | Length | Material | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|

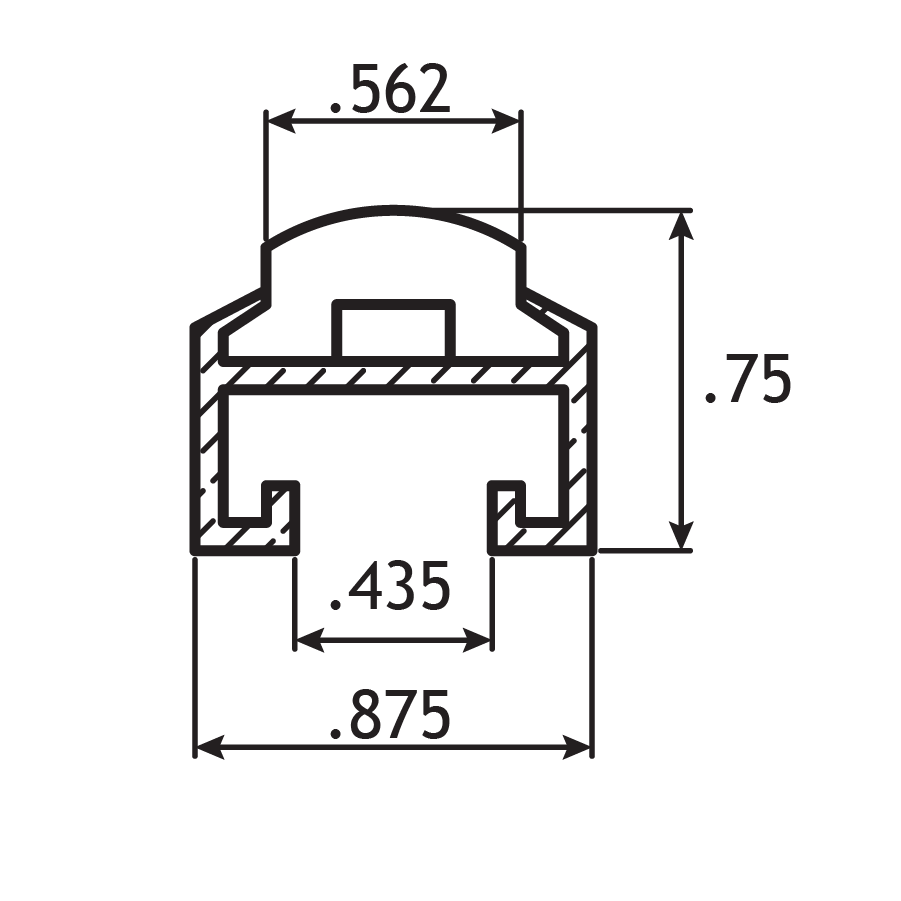

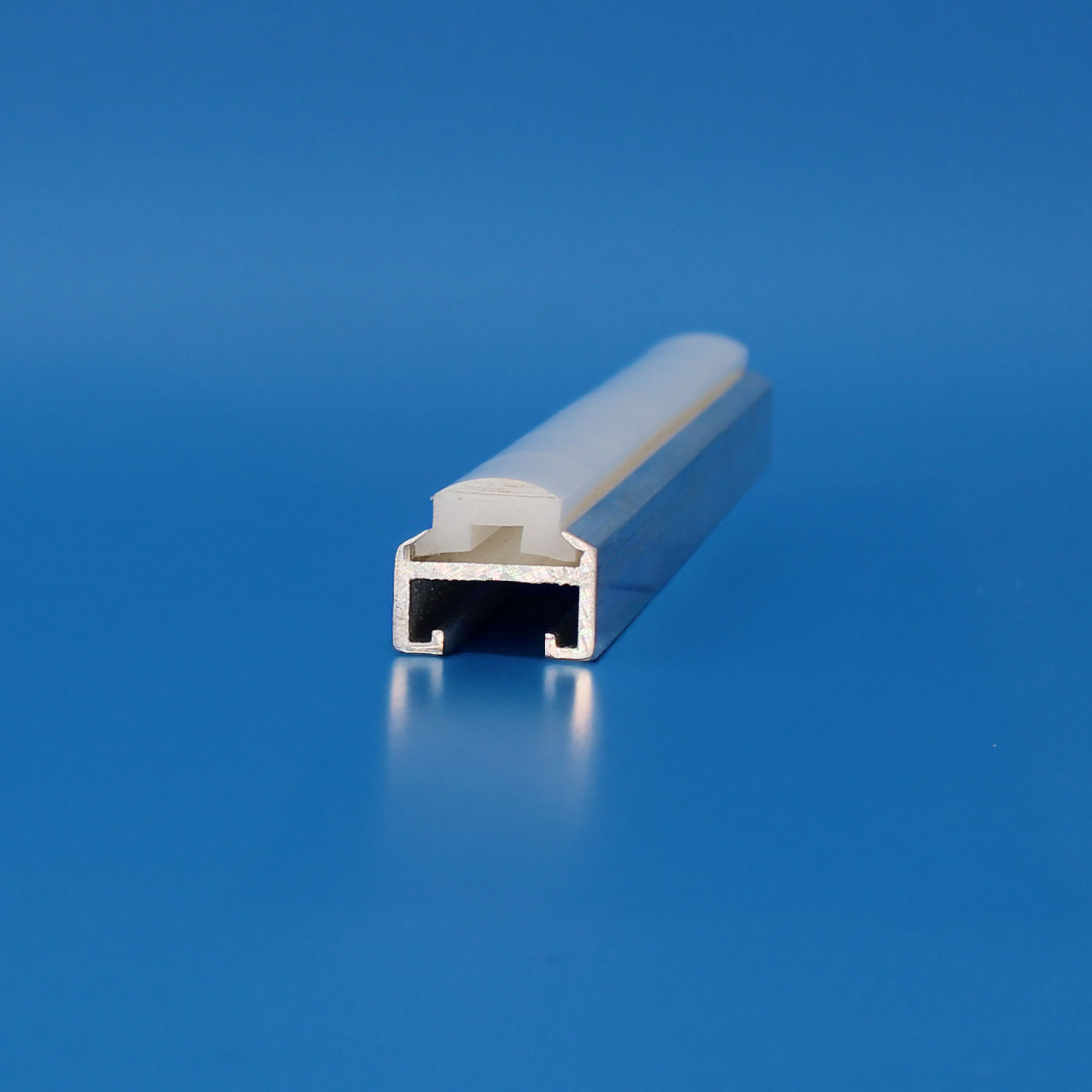

| GRA1214RL120 | .75" | OTHER | U | WHITE | .875" | OTHER | 10 Ft | UHMW | ||

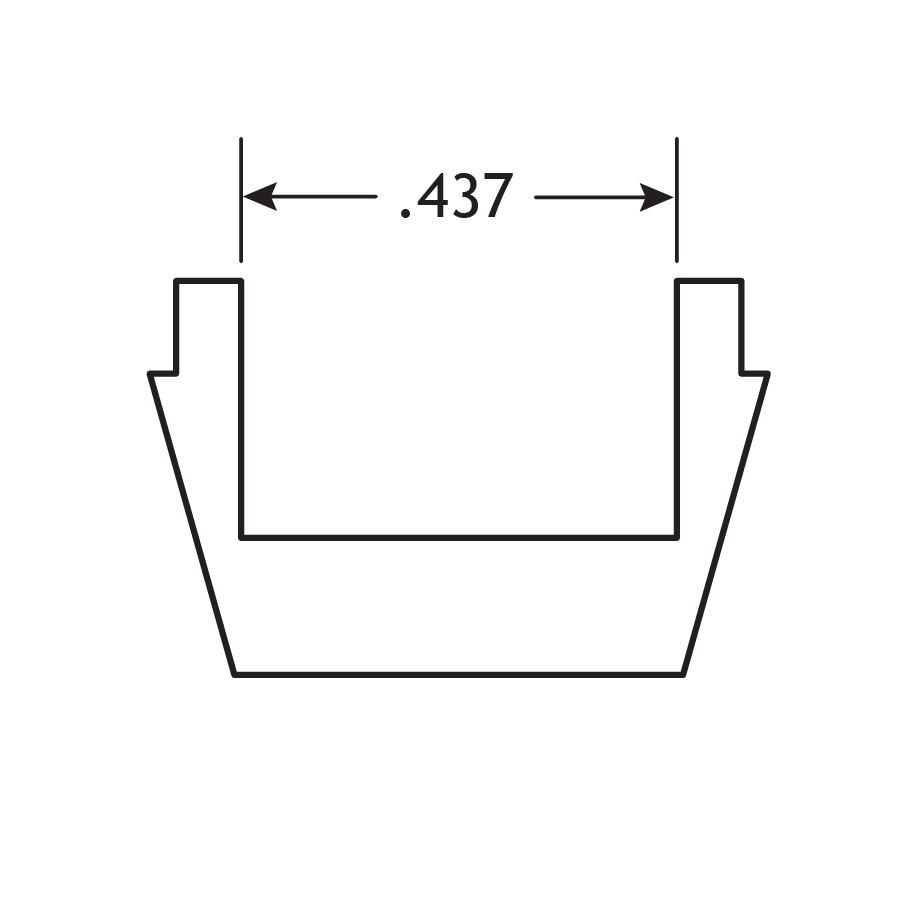

| GRU061007L240 | OTHER | U | WHITE | OTHER | 10 Ft | UHMW | ||||
| GRUH161620L120 | 1.25" | 1 x 1 | UH | WHITE | 1.25" | 1" - 2" Rail | 10 Ft | Hi-Temp UHMW | ||
| GRT161620L120 | 1.25" | 1 x 1 | T | WHITE | 1.25" | 1" - 2" Rail | 10 Ft | PTFE | ||

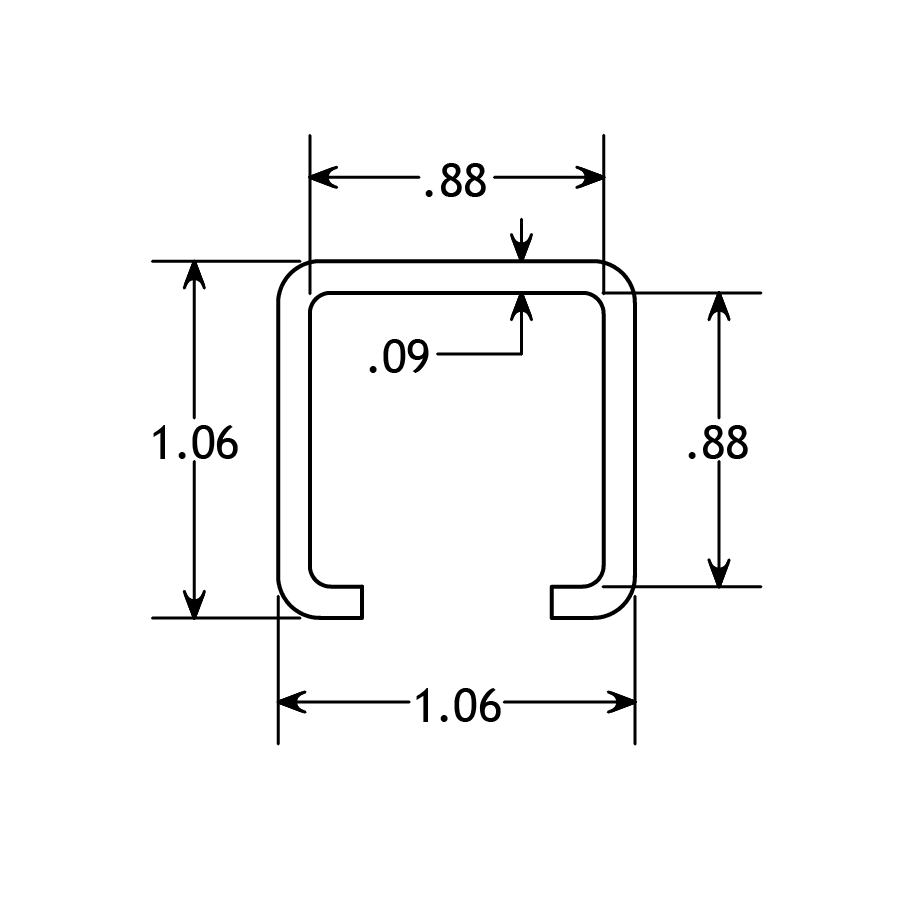

| GRU141417L120 | 1.06" | 7/8" x 7/8" | U | WHITE | 1.06" | OTHER | 10 Ft | UHMW | ||

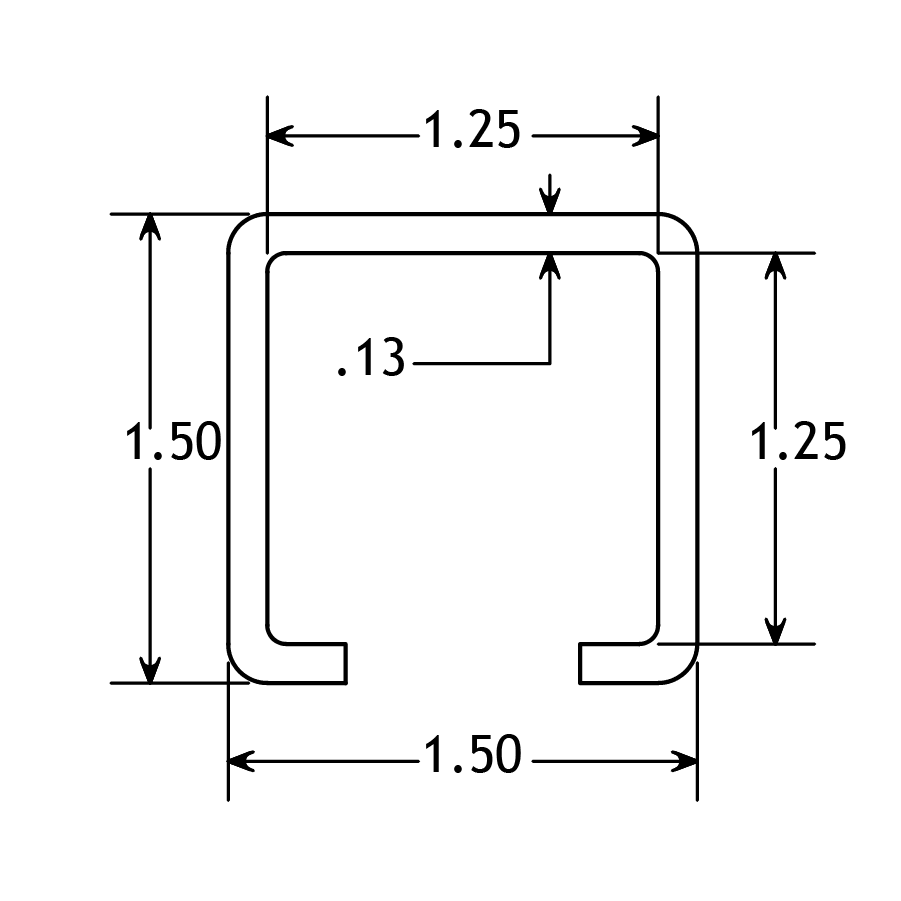

| GRU202024L240 | 1.5" | 1-1/4" x 1-1/4" | U | WHITE | 1.5" | 1" - 2" Rail | 20 Ft | UHMW | ||

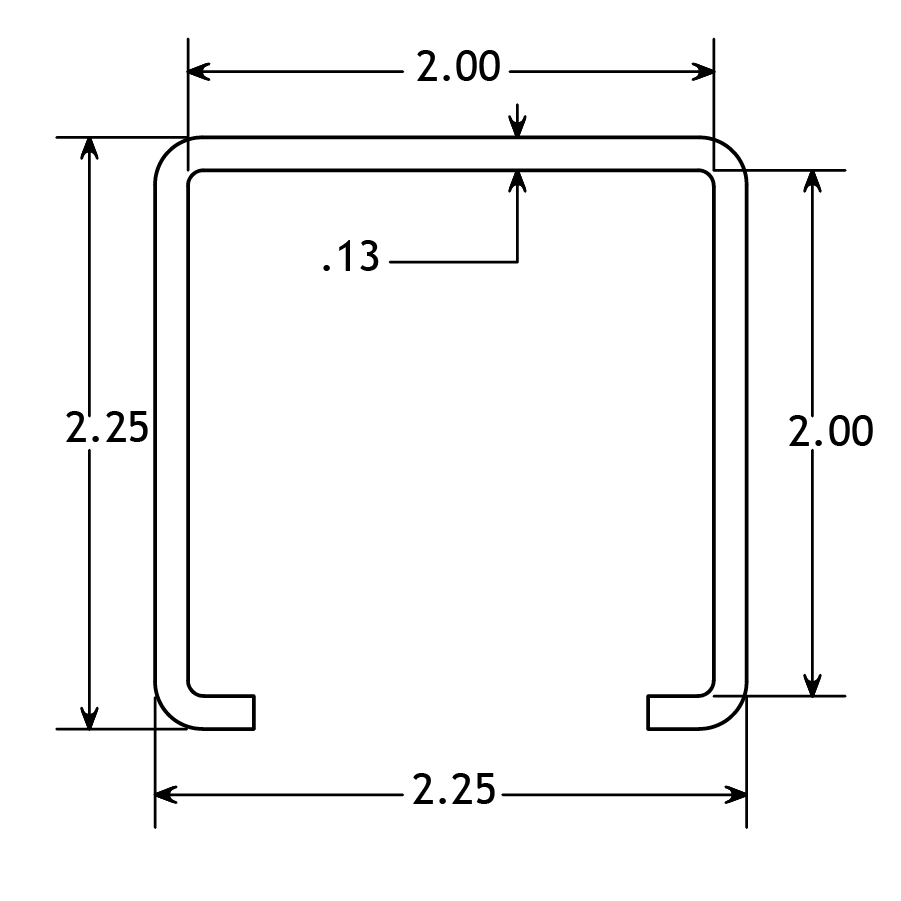

| GRU323236L240 | 2.25" | 2 x 2 | U | WHITE | 2.25" | 1" - 2" Rail | 20 Ft | UHMW | ||
| GRU323236L120 | 2.25" | 2 x 2 | U | WHITE | 2.25" | 1" - 2" Rail | 10 Ft | UHMW | ||

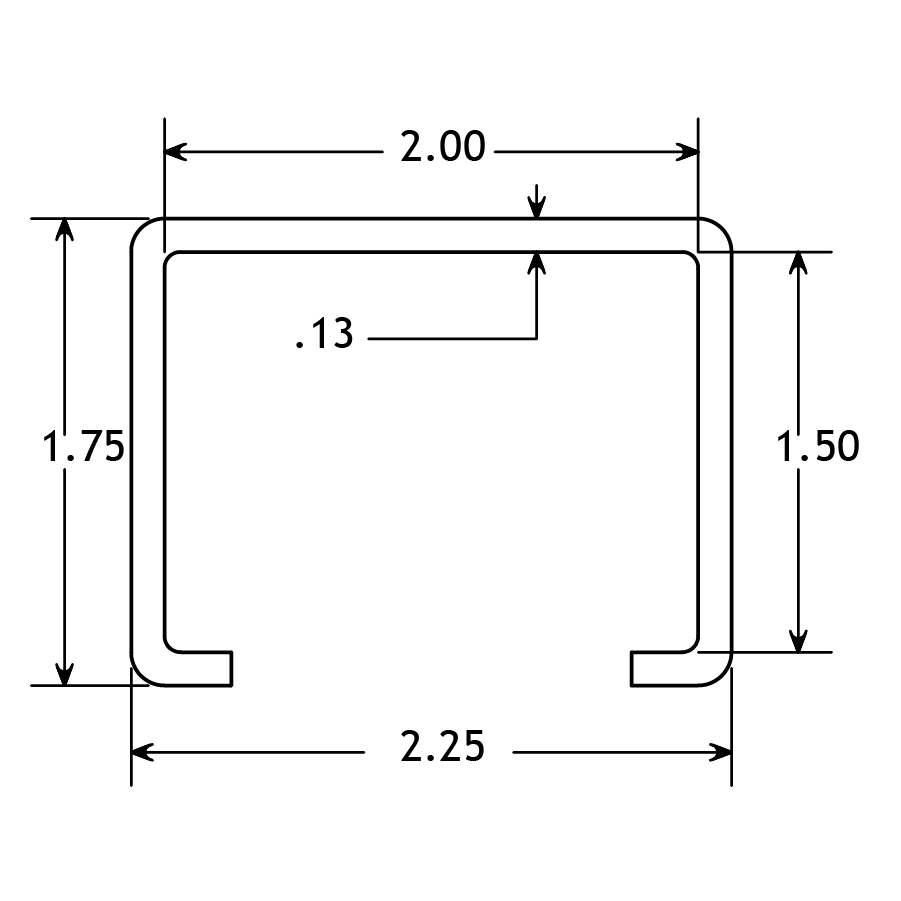

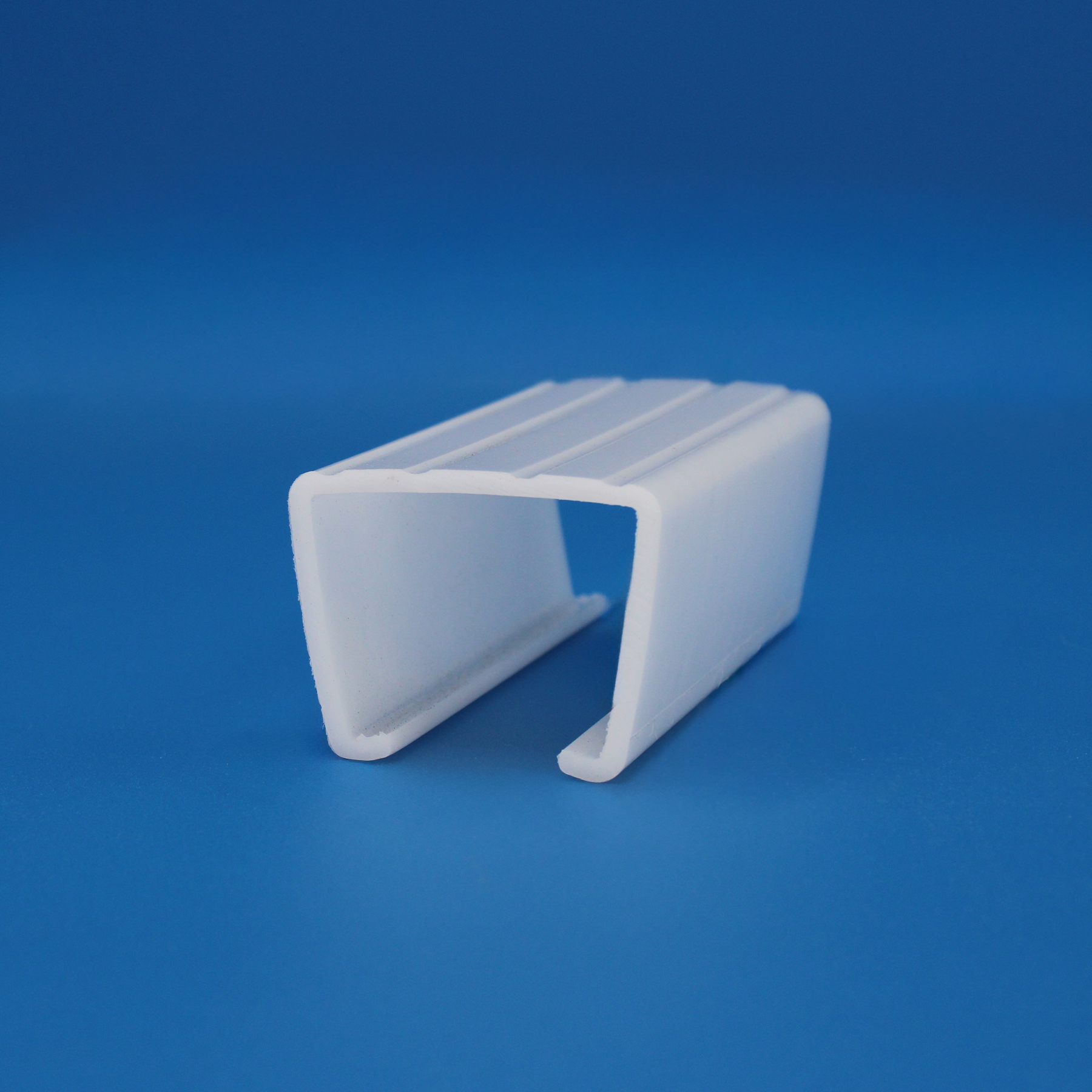

| GRU243215RIB | 1.75" | 1-1/2" x 2" | U | WHITE | 2.25" | 1" - 2" Rail | 10 Ft | UHMW | ||
| GRU243215L240 | 1.75" | 1-1/2" x 2" | U | WHITE | 2.25" | 1" - 2" Rail | 20 Ft | UHMW | ||
| GRU243215L120 | 1.75" | 1-1/2" x 2" | U | WHITE | 2.25" | 1" - 2" Rail | 10 Ft | UHMW | ||

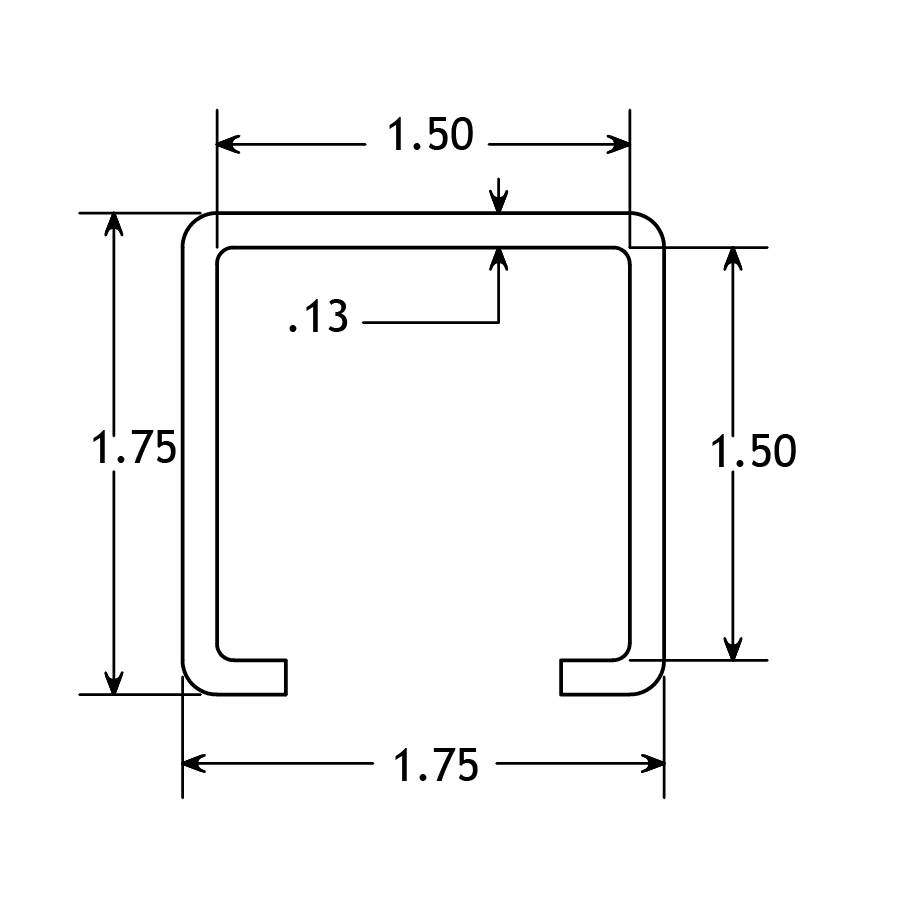

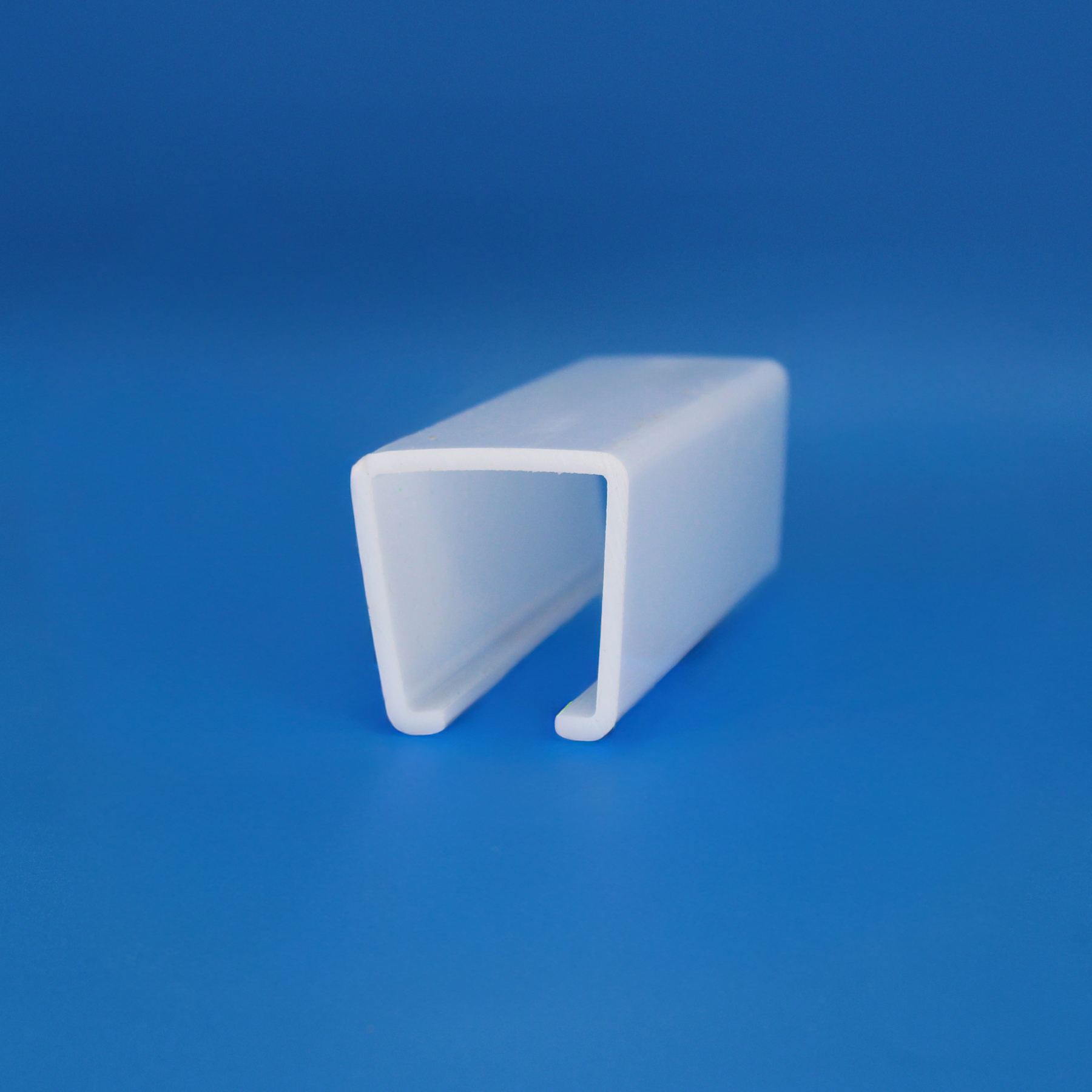

| GRU242428L240 | 1.75" | 1-1/2" x 1-1/2" | U | WHITE | 1.75" | 1" - 2" Rail | 20 Ft | UHMW | ||

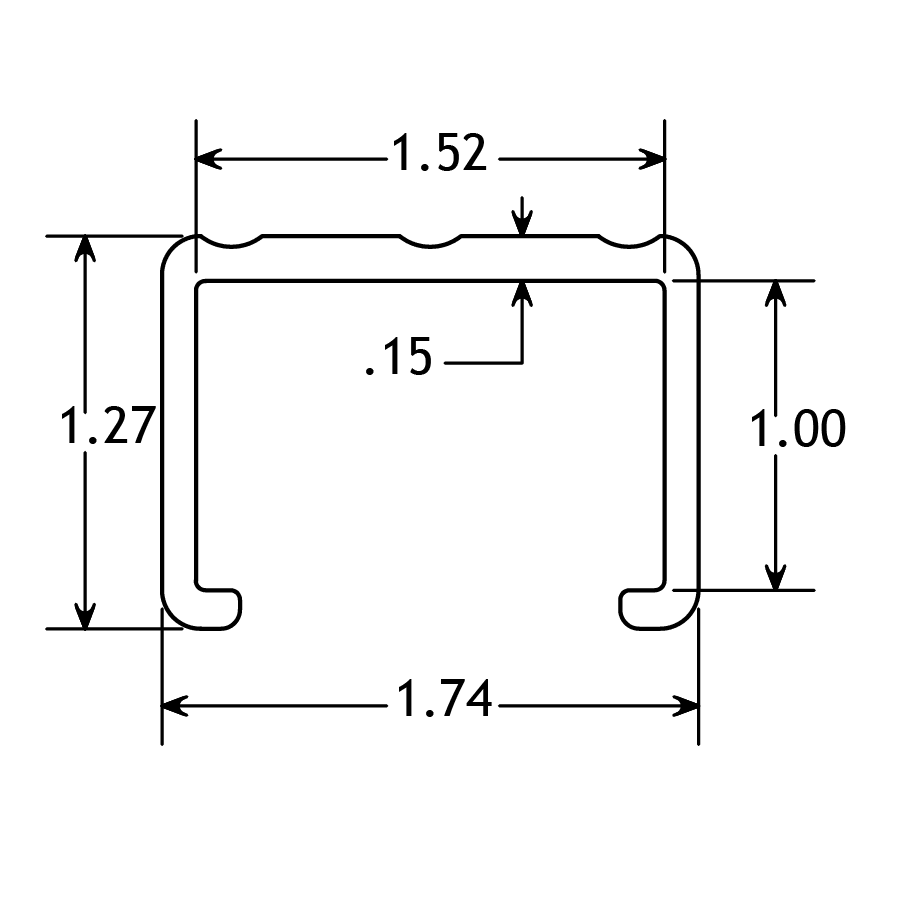

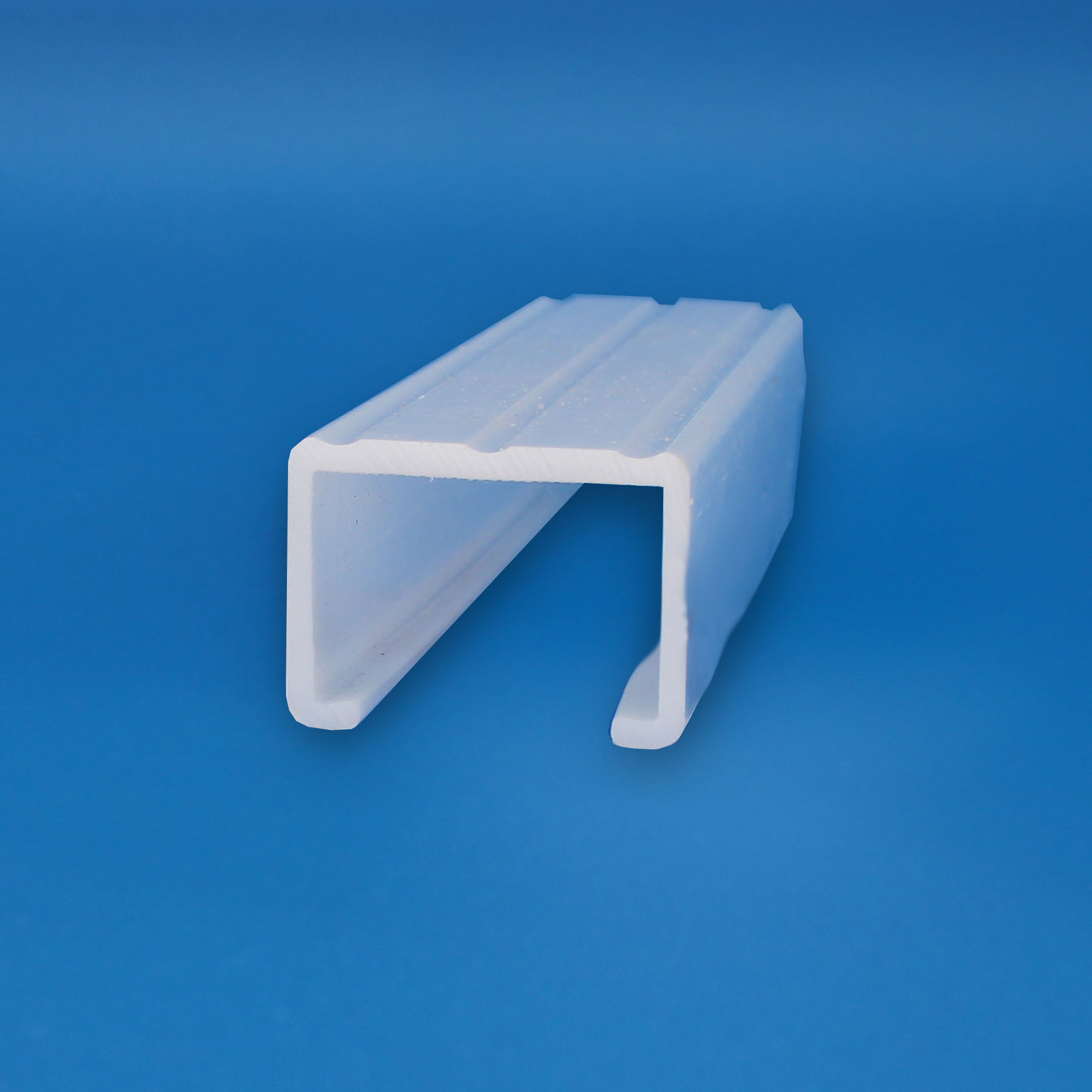

| GRU1624RIBL240 | 1.27" | 1 x 1-1/2" | U | WHITE | 1.74" | 1" - 2" Rail | 20 Ft | UHMW | ||

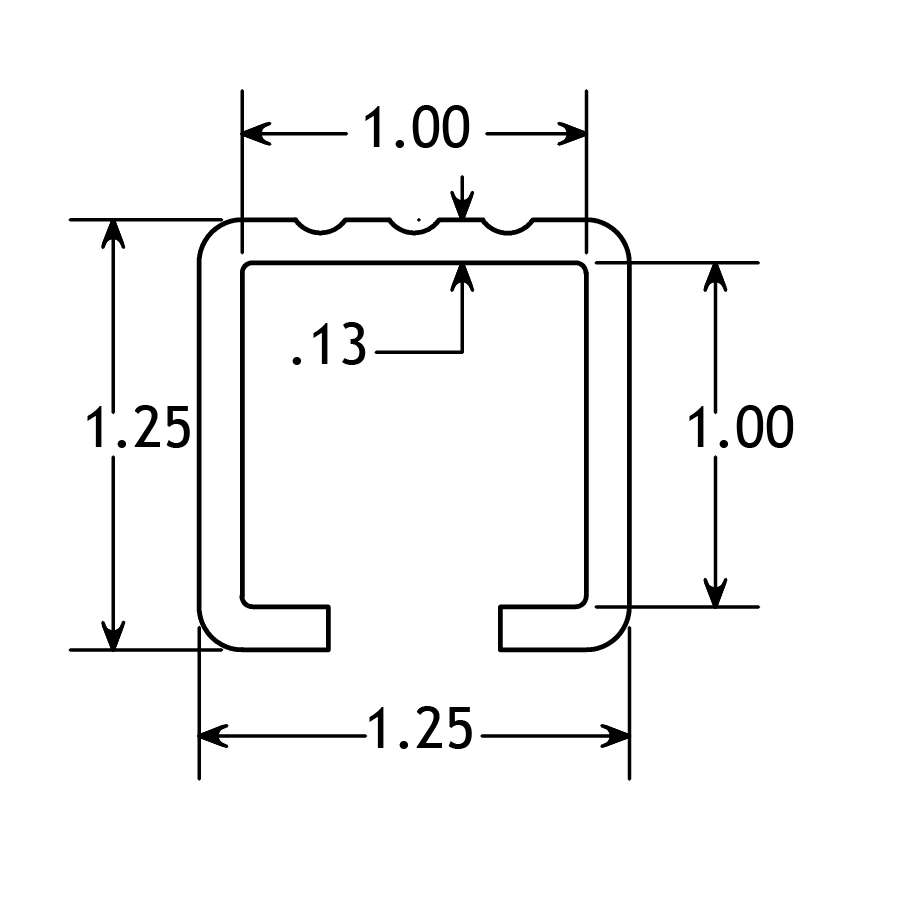

| GRU161620RIBL240 | 1.25" | 1 x 1 | U | WHITE | 1.25" | 1" - 2" Rail | 20 Ft | UHMW | ||
| GRU161620RIBL120 | 1.25" | 1 x 1 | U | WHITE | 1.25" | 1" - 2" Rail | 10 Ft | UHMW | ||

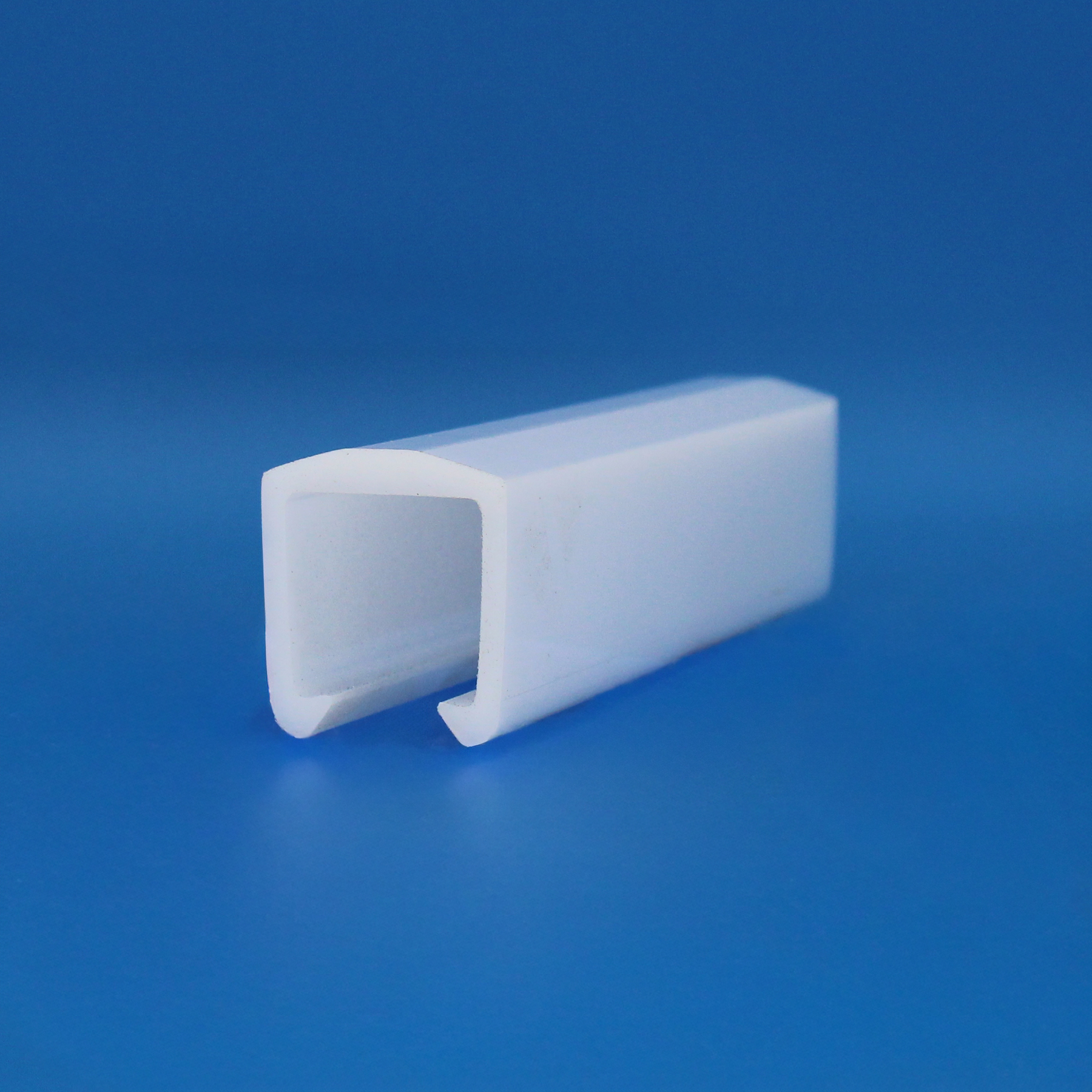

| GRU161623L240 | 1.44" | 1 x 1 | U | WHITE | 1.38" | 1" - 2" Rail | 20 Ft | UHMW | ||
| GRU161623L120 | 1.44" | 1 x 1 | U | WHITE | 1.38" | 1" - 2" Rail | 10 Ft | UHMW | ||

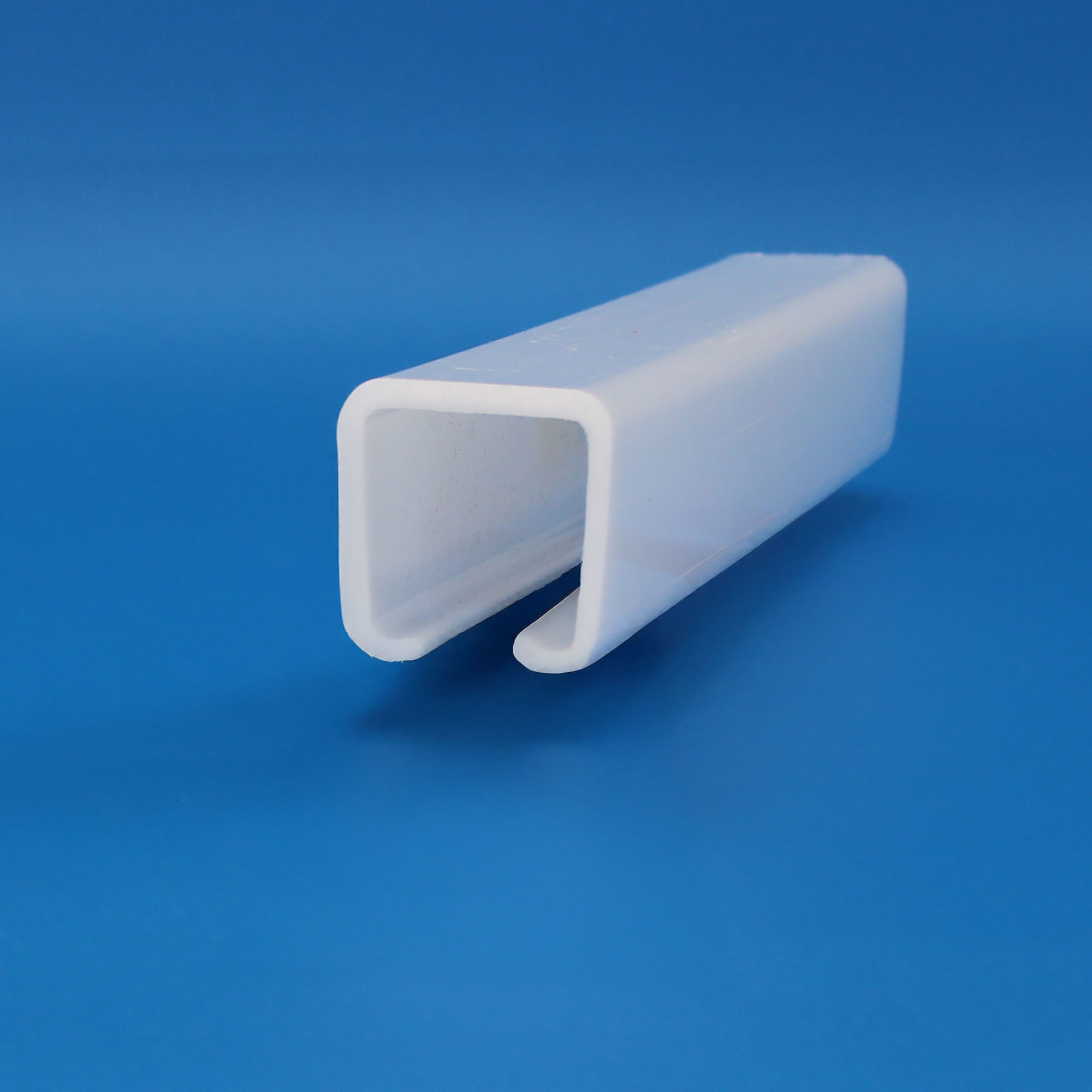

| GRU161620L240 | 1.25" | 1 x 1 | U | WHITE | 1.25" | 1" - 2" Rail | 20 Ft | UHMW | ||
| GRU161620L120 | 1.25" | 1 x 1 | U | WHITE | 1.25" | 1" - 2" Rail | 10 Ft | UHMW | ||

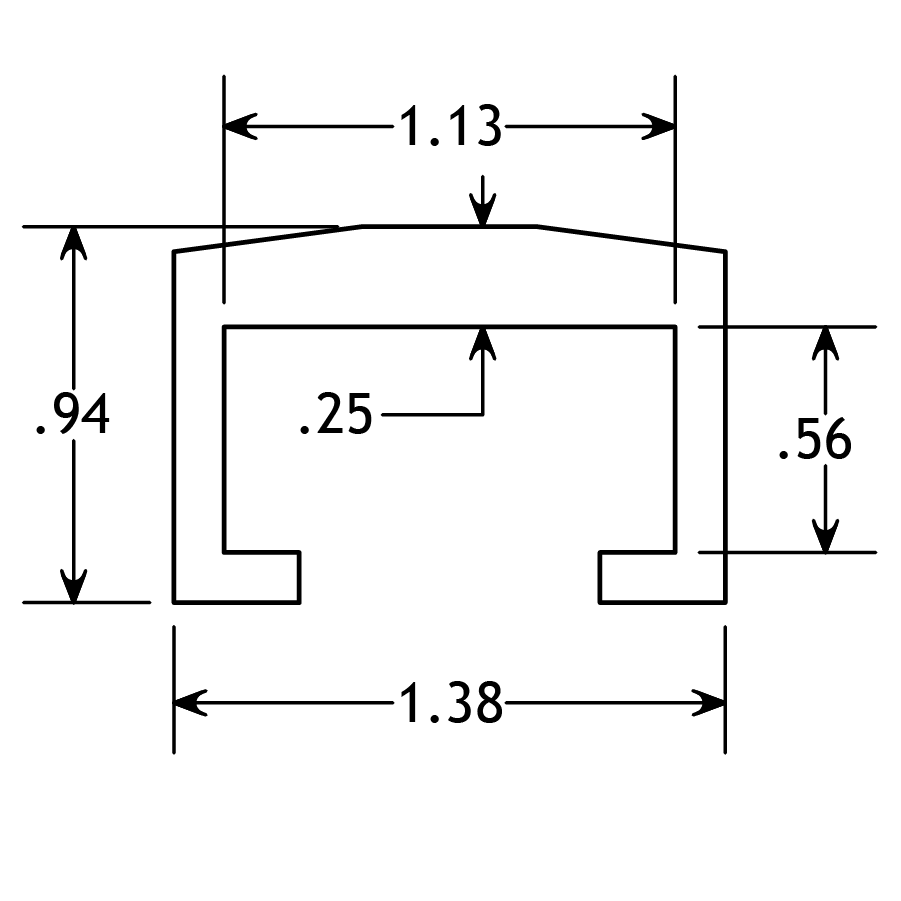

| GRU091821L240 | .94" | 9/16" x 1-1/8" | U | WHITE | 1.38" | OTHER | 20 Ft | UHMW | ||
| GRU091821L120 | .94" | 9/16" x 1-1/8" | U | WHITE | 1.38" | OTHER | 10 Ft | UHMW | ||
| GRU081615L240 | .94" | 1/2" x 1" | U | WHITE | 1.38" | 3/8"-1/2" Rail | 20 Ft | UHMW | ||

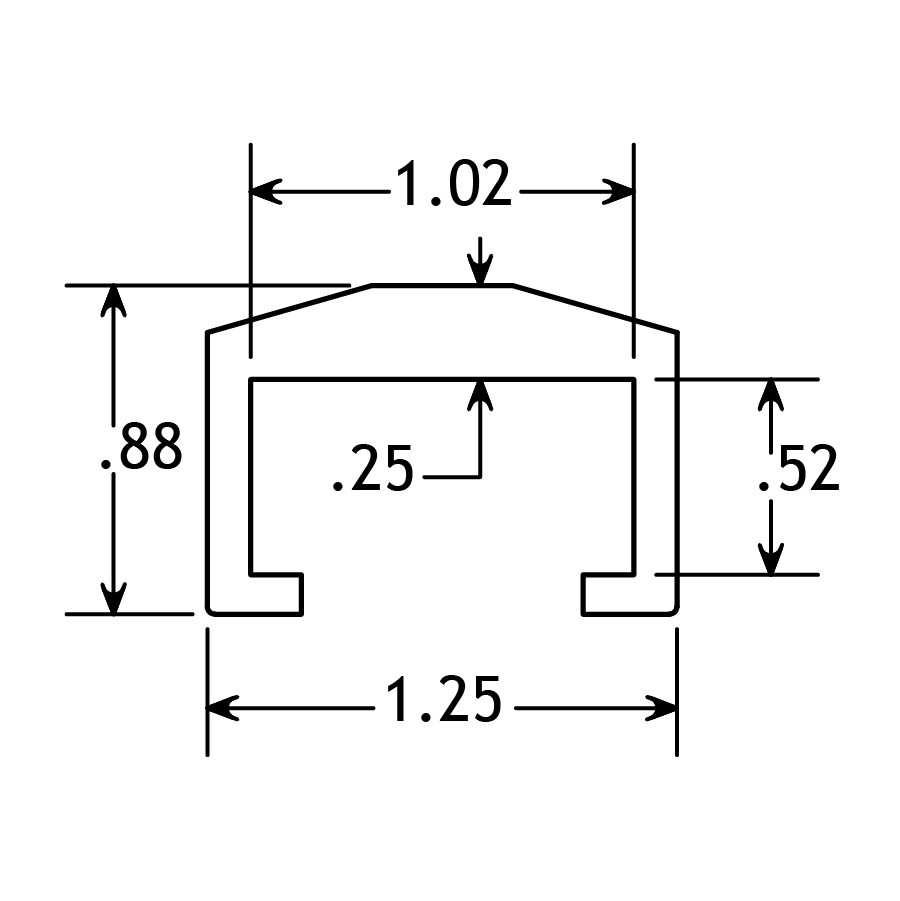

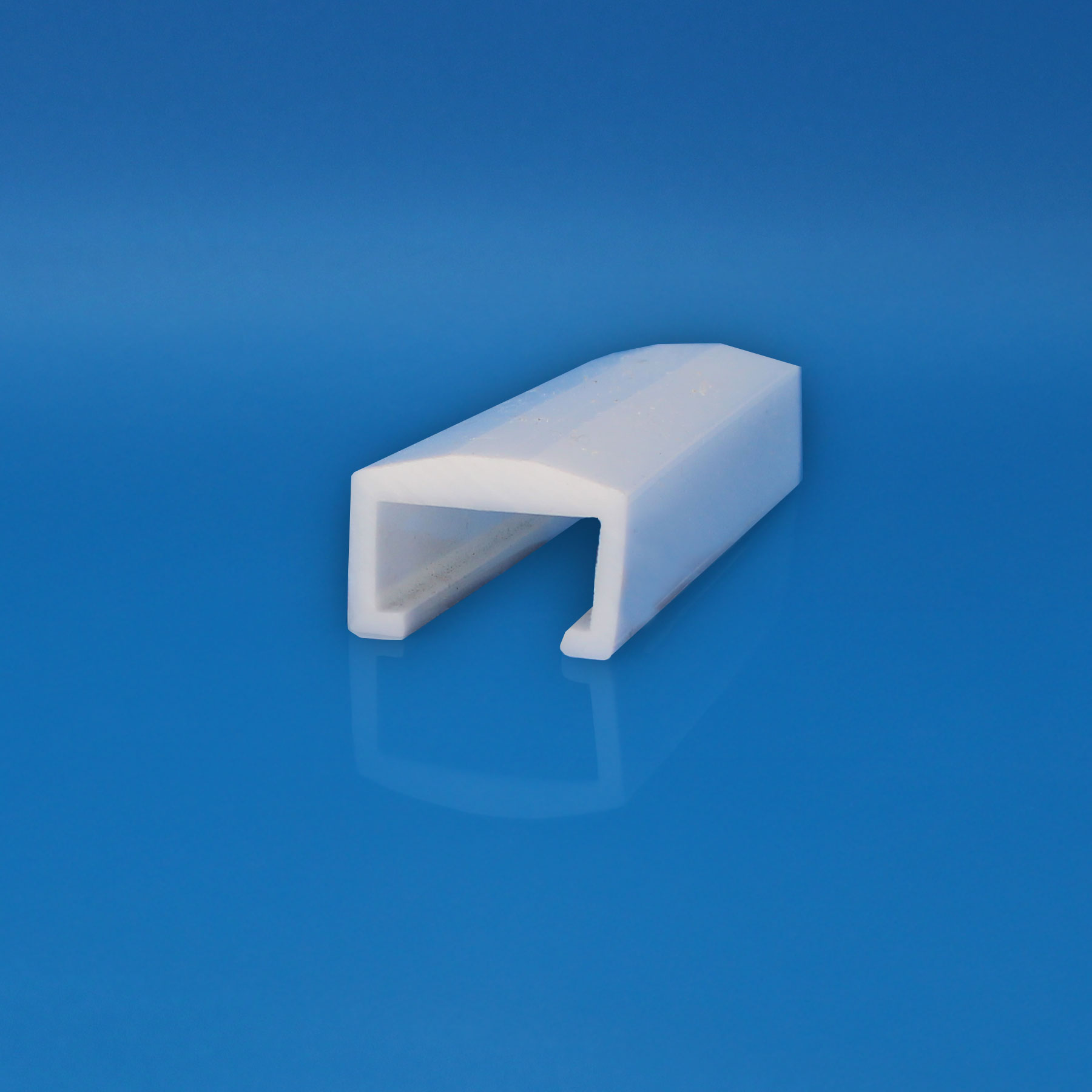

| GRU081615LDL240 | .88" | 1/2" x 1" | U | WHITE | 1.25" | 3/8"-1/2" Rail | 20 Ft | UHMW | ||
| GRU081615LDL120 | .88" | 1/2" x 1" | U | WHITE | 1.25" | 3/8"-1/2" Rail | 10 Ft | UHMW | ||

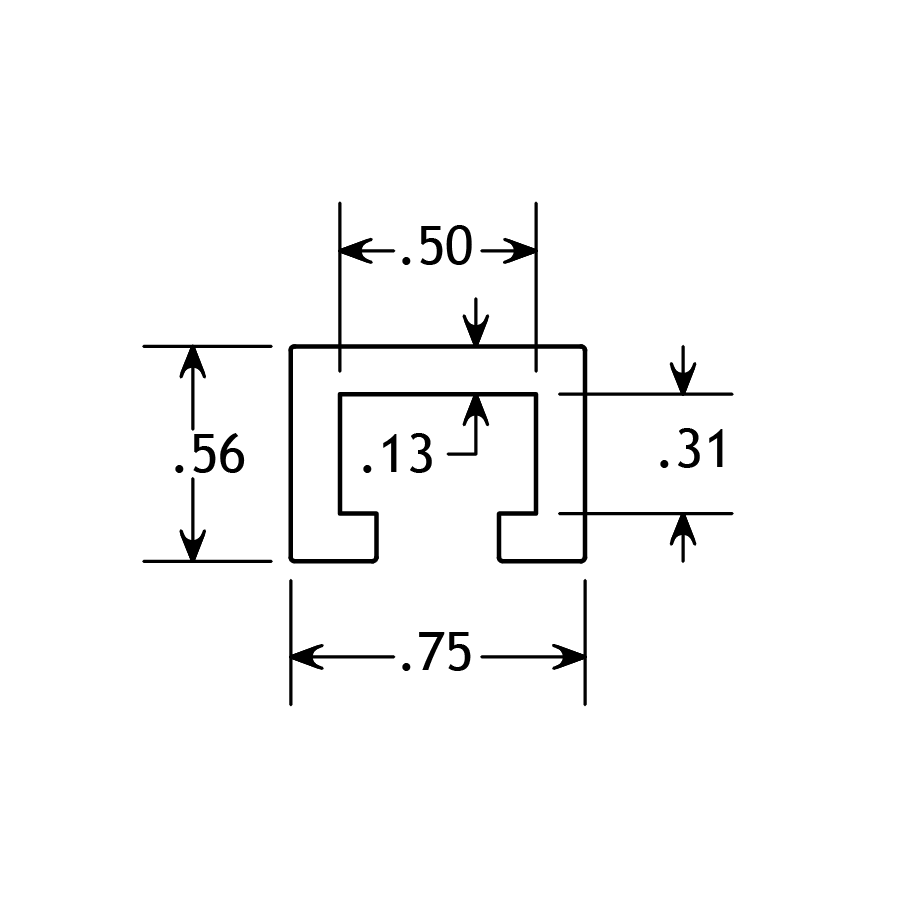

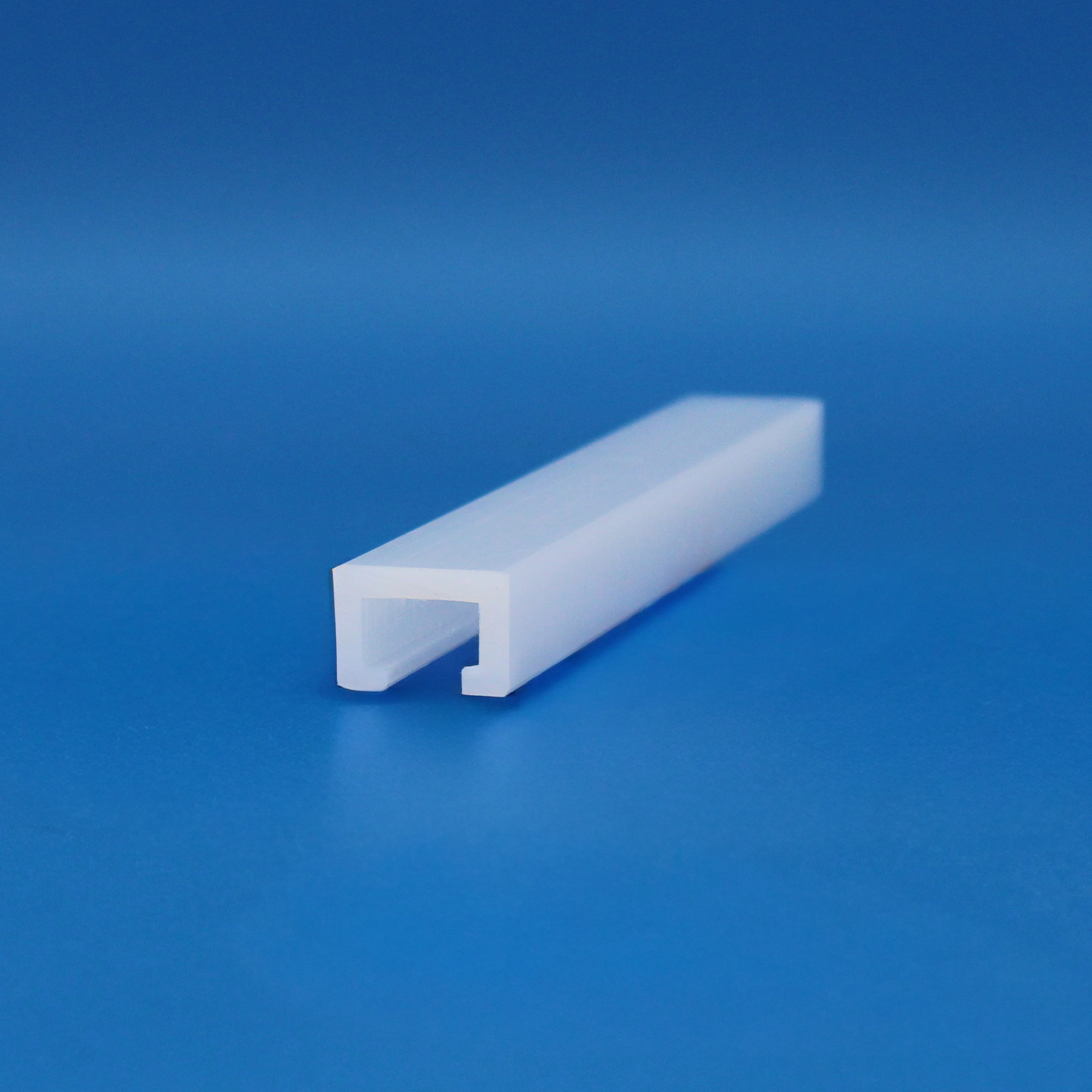

| GRU050809L120 | .56" | 5/16" x 1/2" | U | WHITE | .75" | OTHER | 10 Ft | UHMW | ||

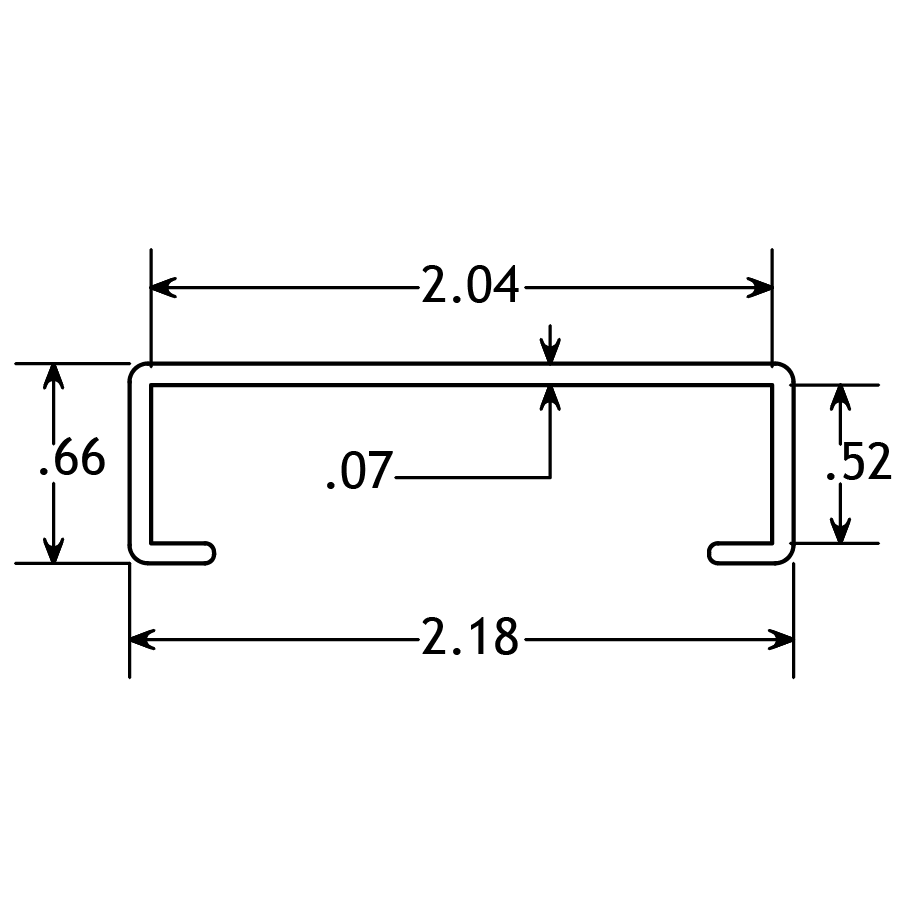

| GRU083212L240 | .66" | 1/2" x 2" | U | WHITE | 2.18" | 3/8"-1/2" Rail | 20 Ft | UHMW | ||

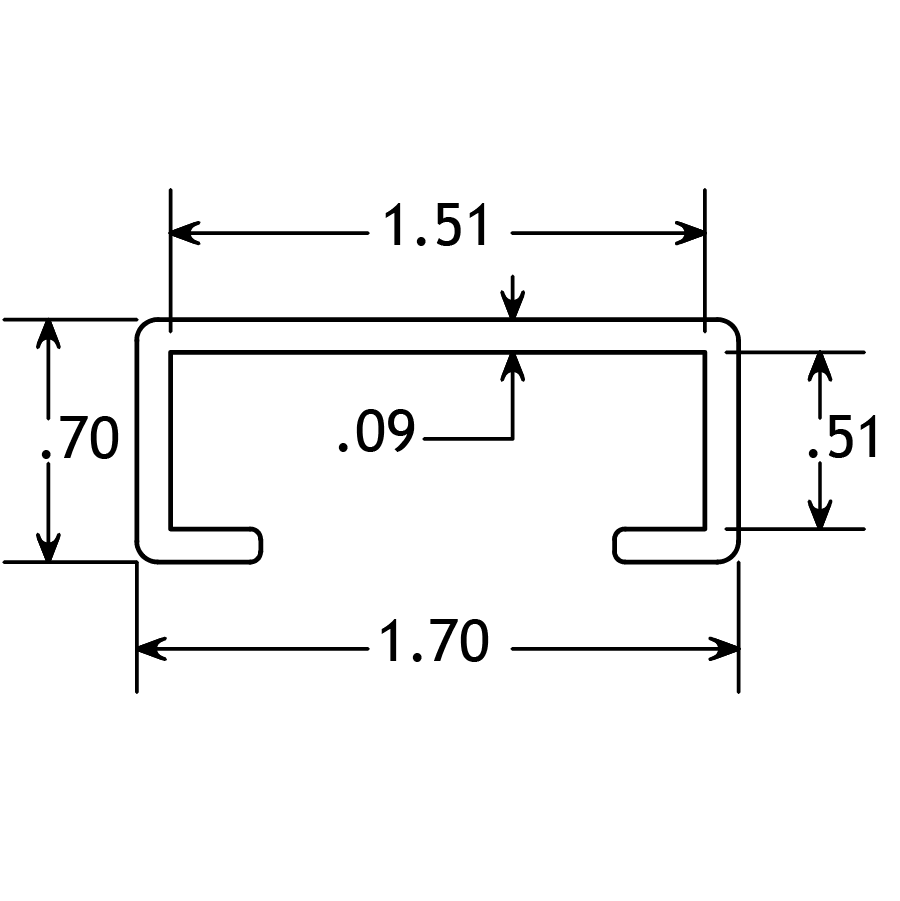

| GRU082411L240 | .69" | 1/2" x 1-1/2" | U | WHITE | 1.69" | 3/8"-1/2" Rail | 20 Ft | UHMW | ||

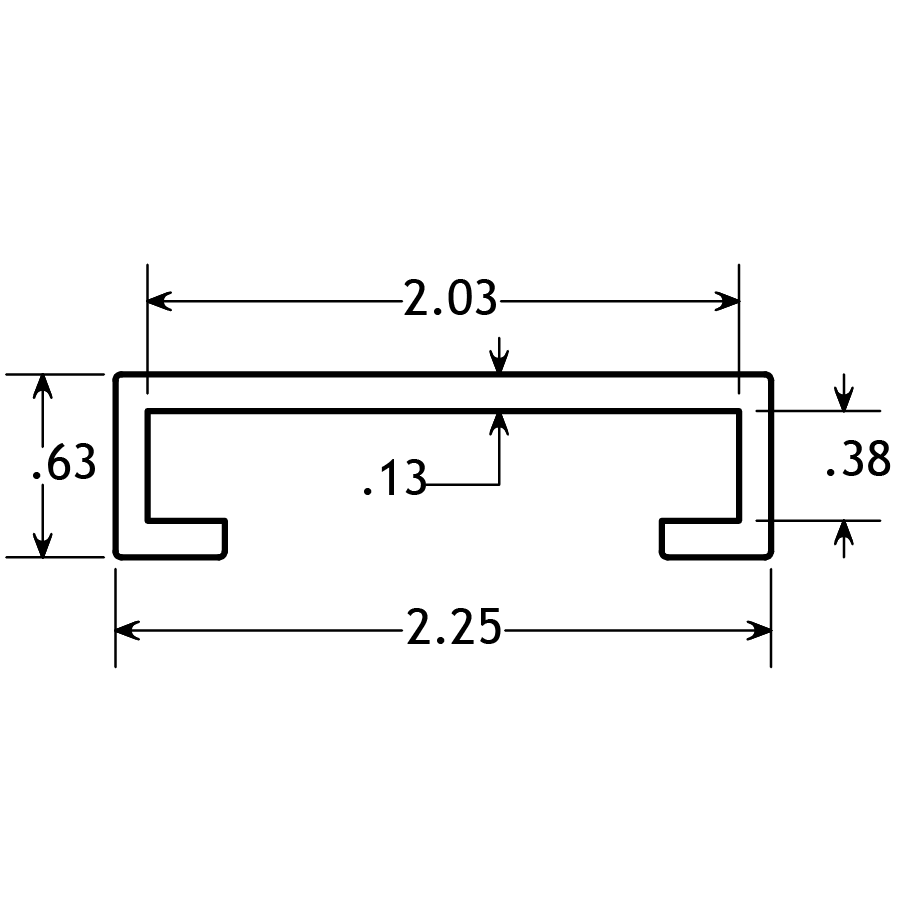

| GRU063211L240 | .63" | 3/8" x 2" | U | WHITE | 2.25" | 3/8"-1/2" Rail | 20 Ft | UHMW | ||
| GRU063211L120 | .63" | 3/8" x 2" | U | WHITE | 2.25" | 3/8"-1/2" Rail | 10 Ft | UHMW | ||

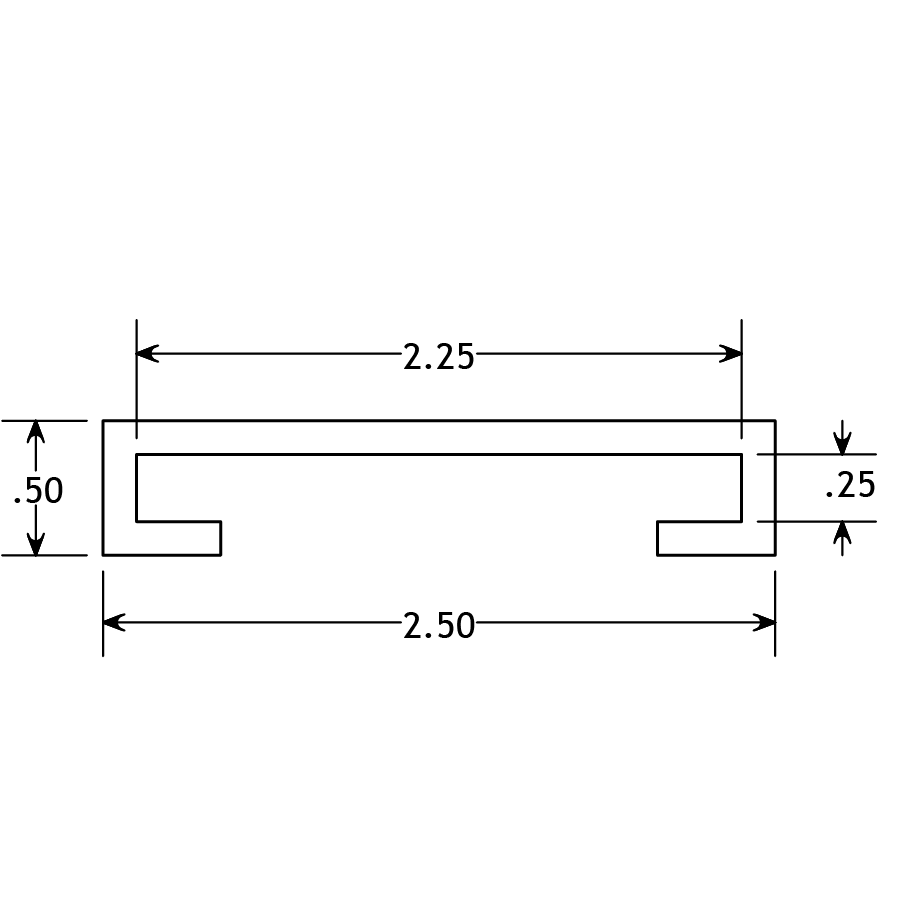

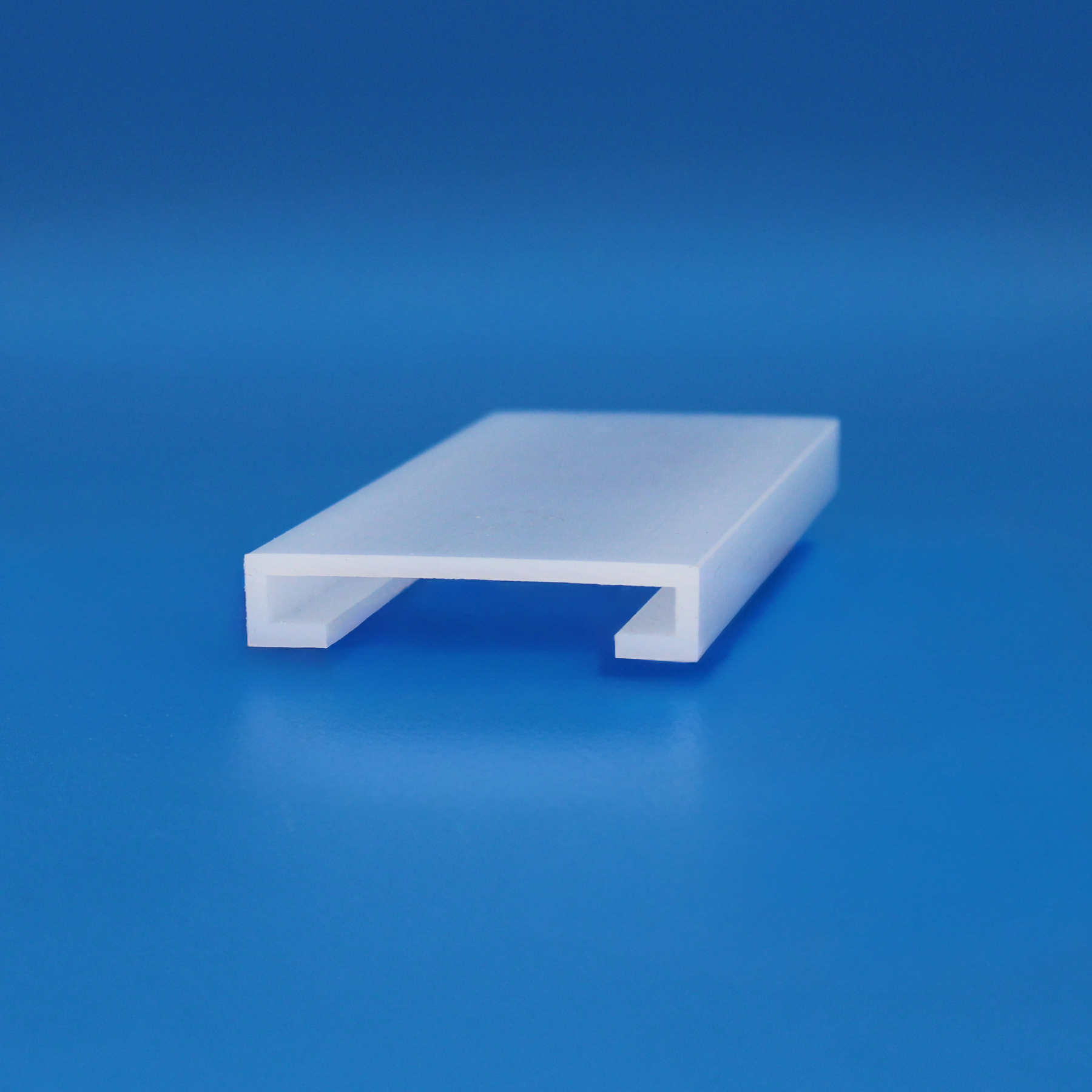

| GRU043608L120 | .5" | 1/4" x 2-1/4" | U | WHITE | 2.5" | 1/4" Rail | 10 Ft | UHMW | ||

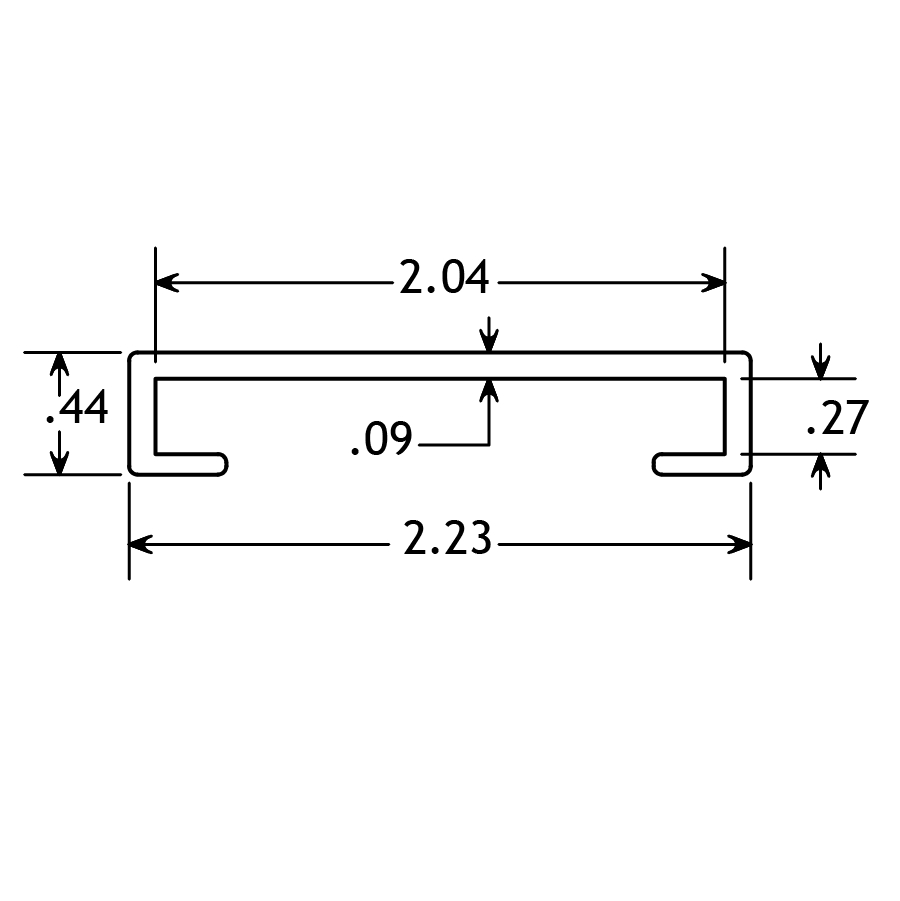

| GRU043205MDL120 | .44" | 1/4" x 2" | U | WHITE | 2.23" | 1/4" Rail | 10 Ft | UHMW | ||

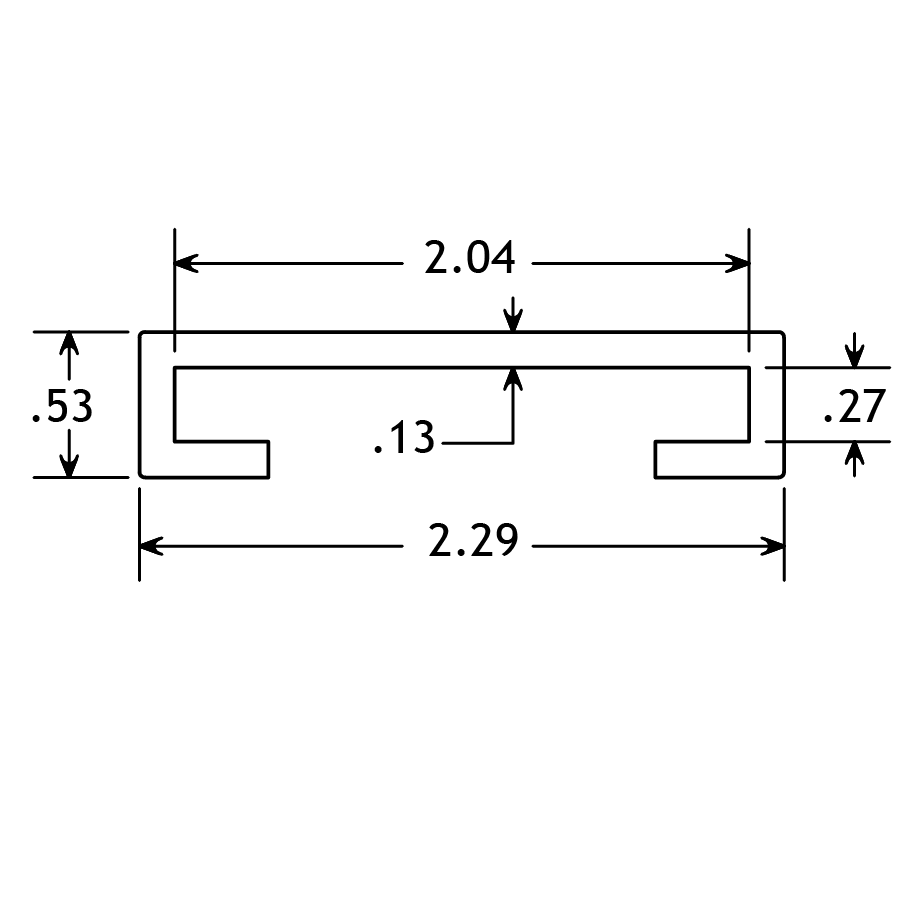

| GRU043205L240 | .53" | 1/4" x 2" | U | WHITE | 2.29" | 1/4" Rail | 20 Ft | UHMW | ||
| GRU043205L120 | .53" | 1/4" x 2" | U | WHITE | 2.29" | 1/4" Rail | 10 Ft | UHMW | ||

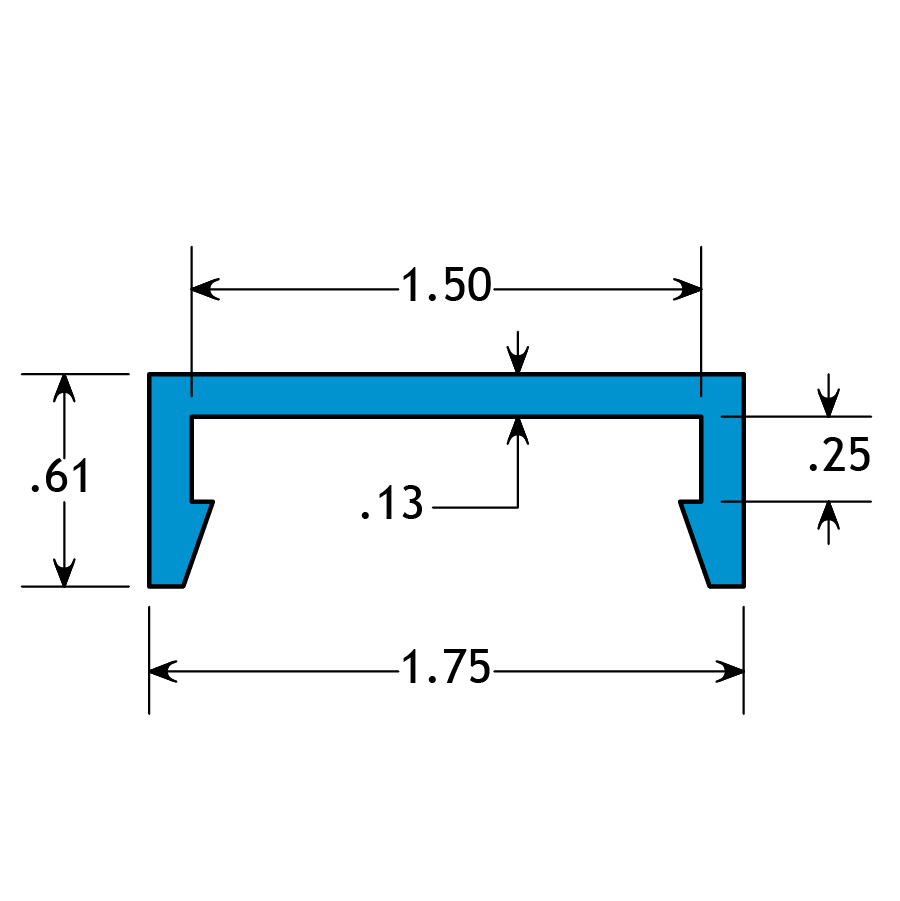

| GRU042410BL120BLUE | .61" | 1/4" x 1-1/2" | U | BLUE | 1.75" | 1/4" Rail | 10 Ft | UHMW | ||

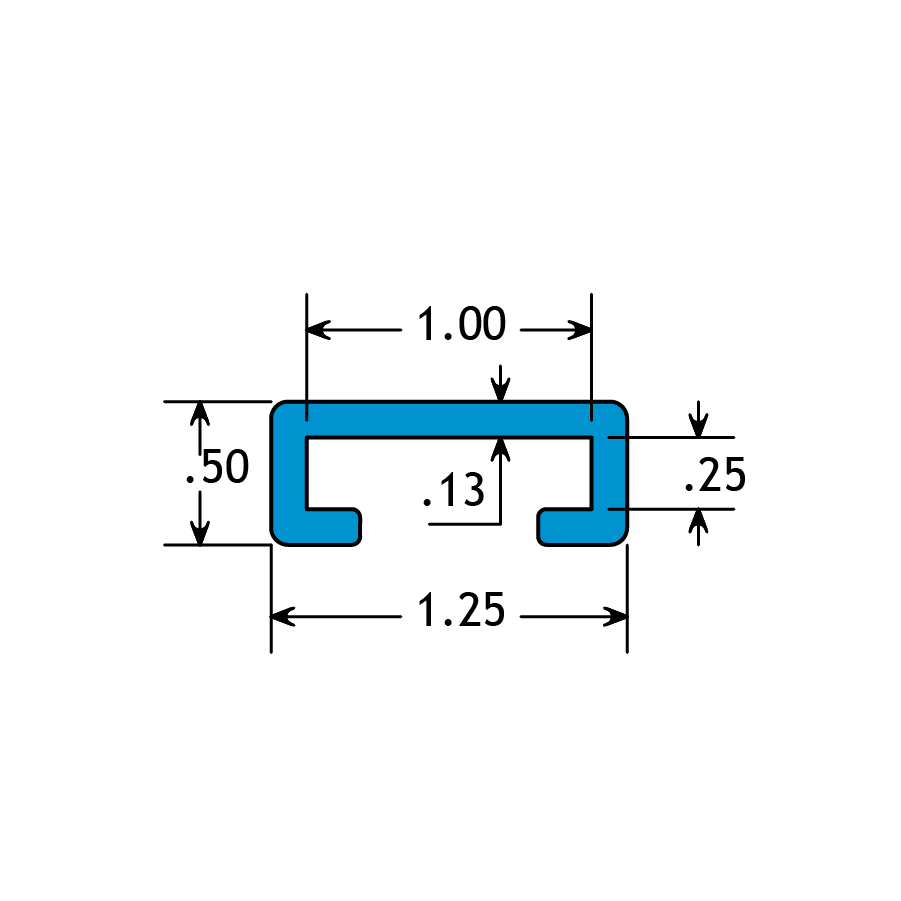

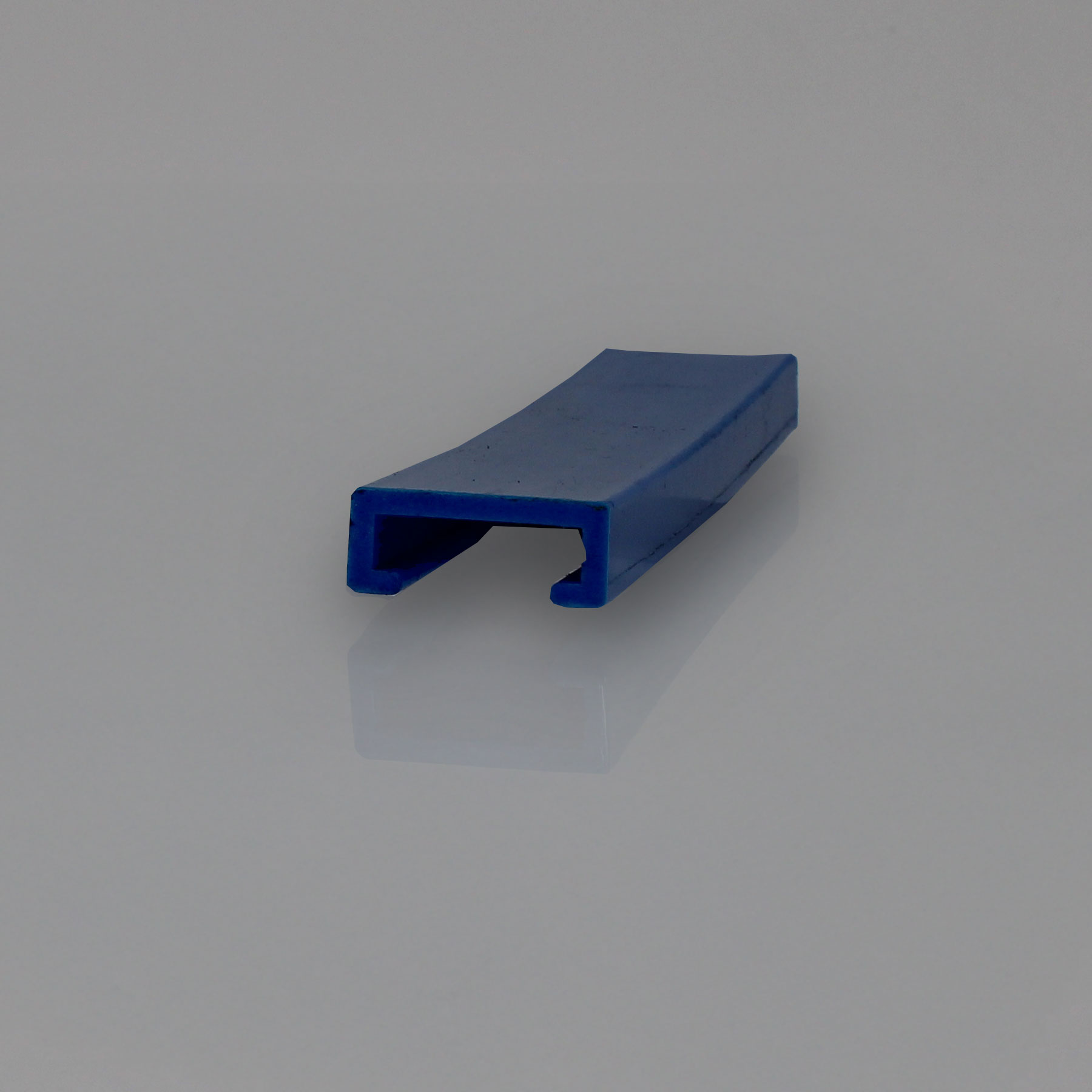

| GRU041607L240B | .5" | 1/4" x 1" | U | BLUE | 1.25" | 1/4" Rail | 20 Ft | UHMW | ||

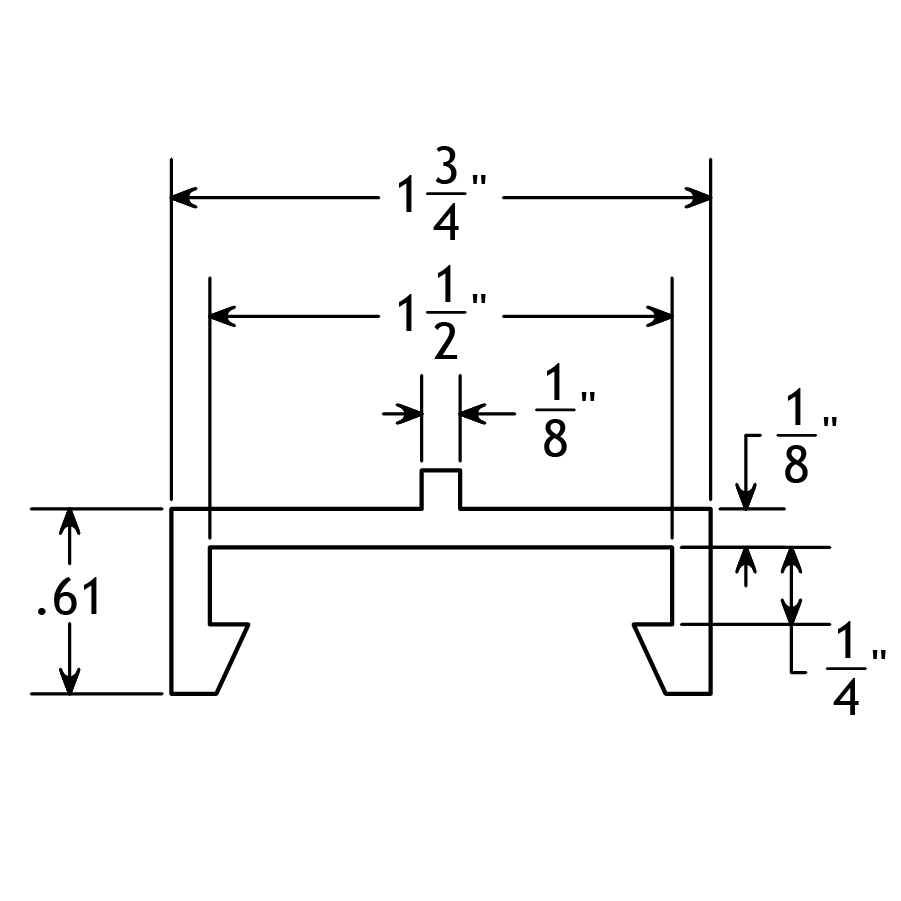

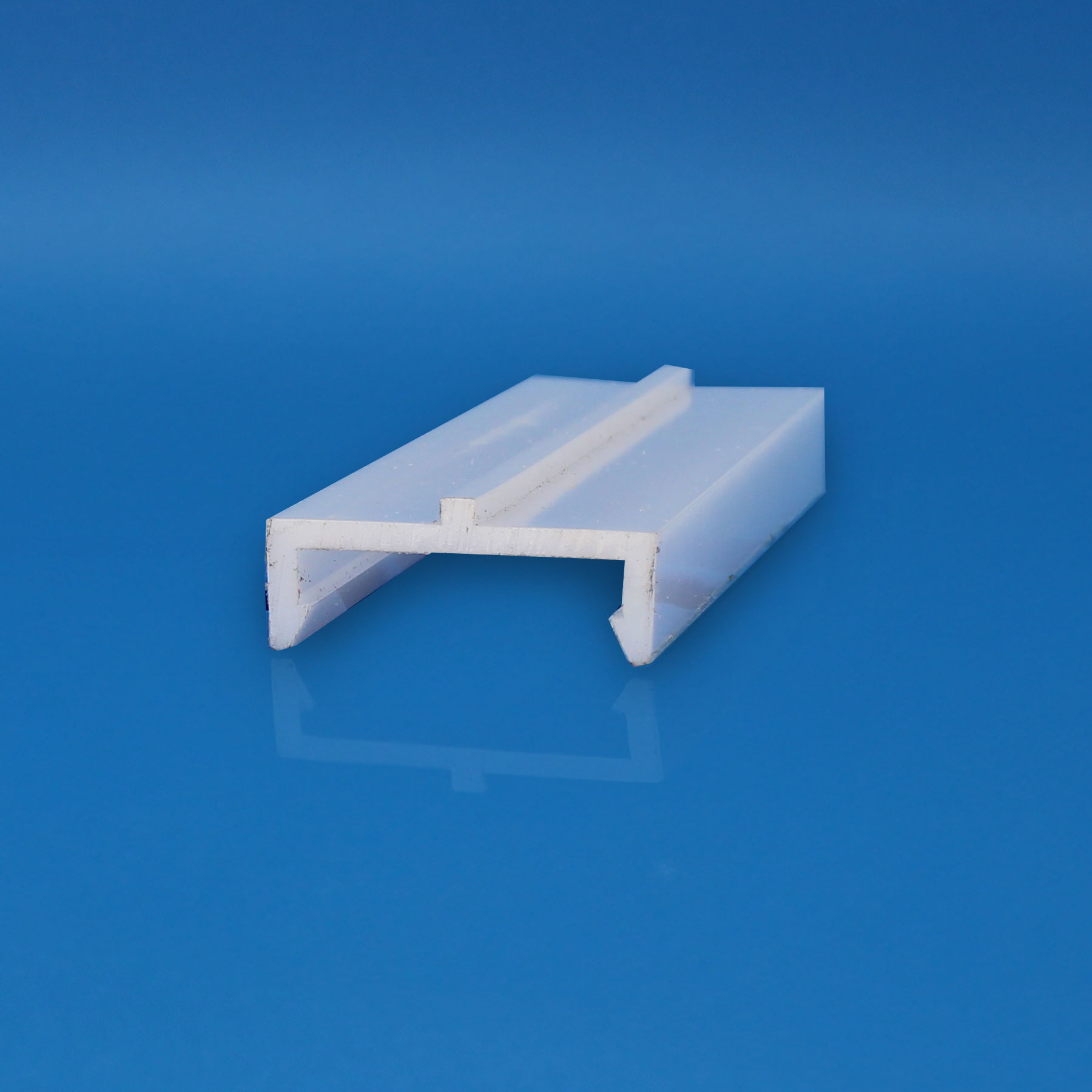

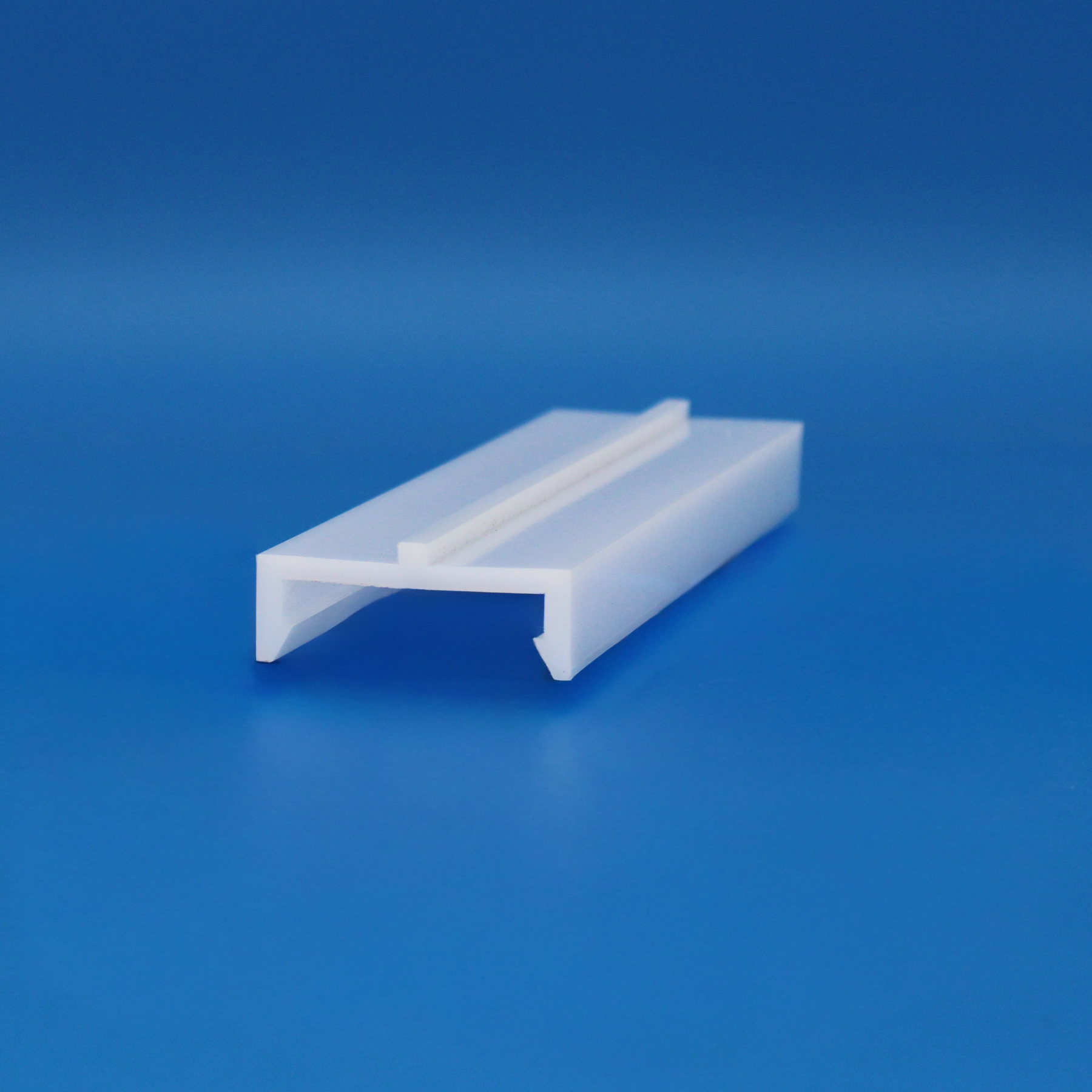

| GRU042410BL1/8 | .61" | 1/4" x 1-1/2" | U | WHITE | 1.75" | 1/4" Rail | 10 Ft | UHMW | ||

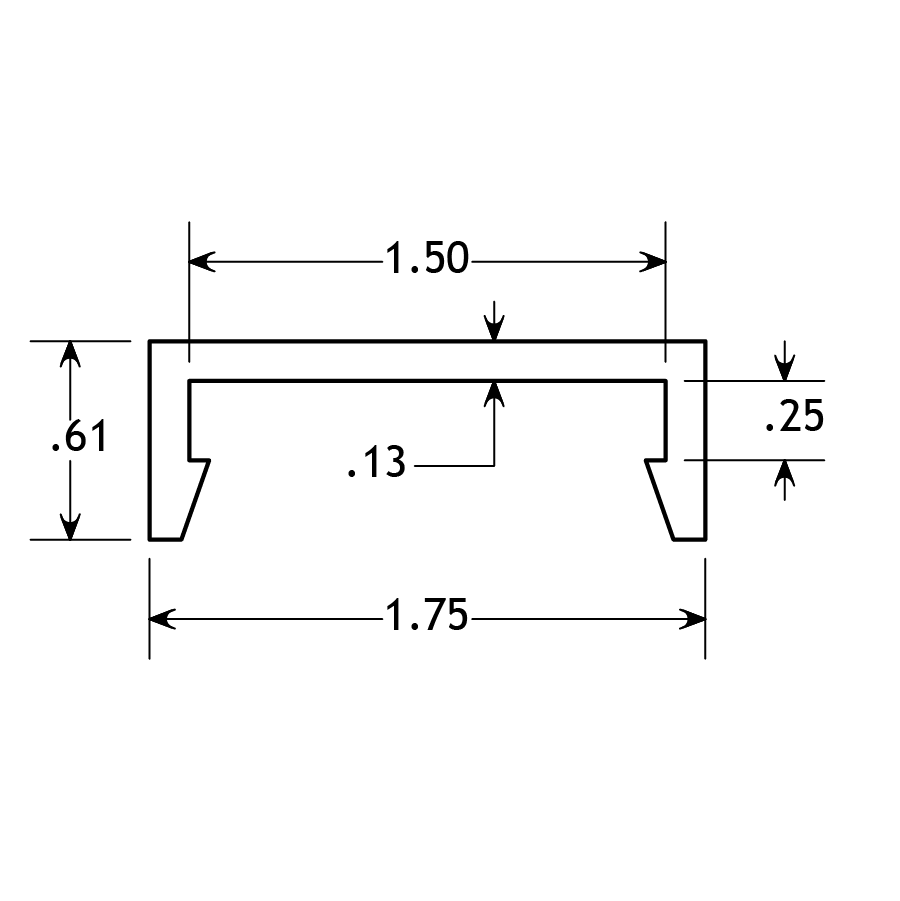

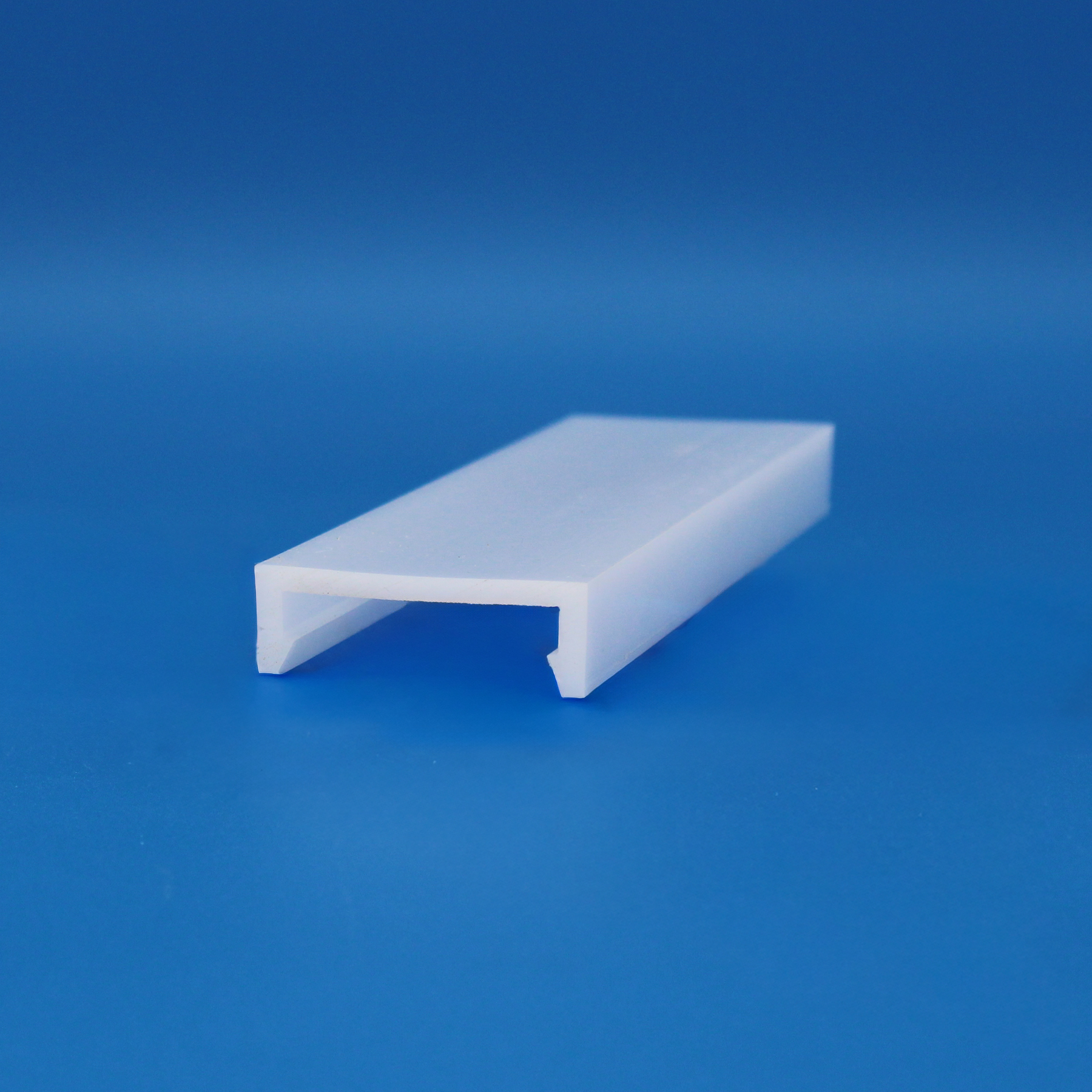

| GRU042410BL120 | .61" | 1/4" x 1-1/2" | U | WHITE | 1.75" | 1/4" Rail | 10 Ft | UHMW | ||

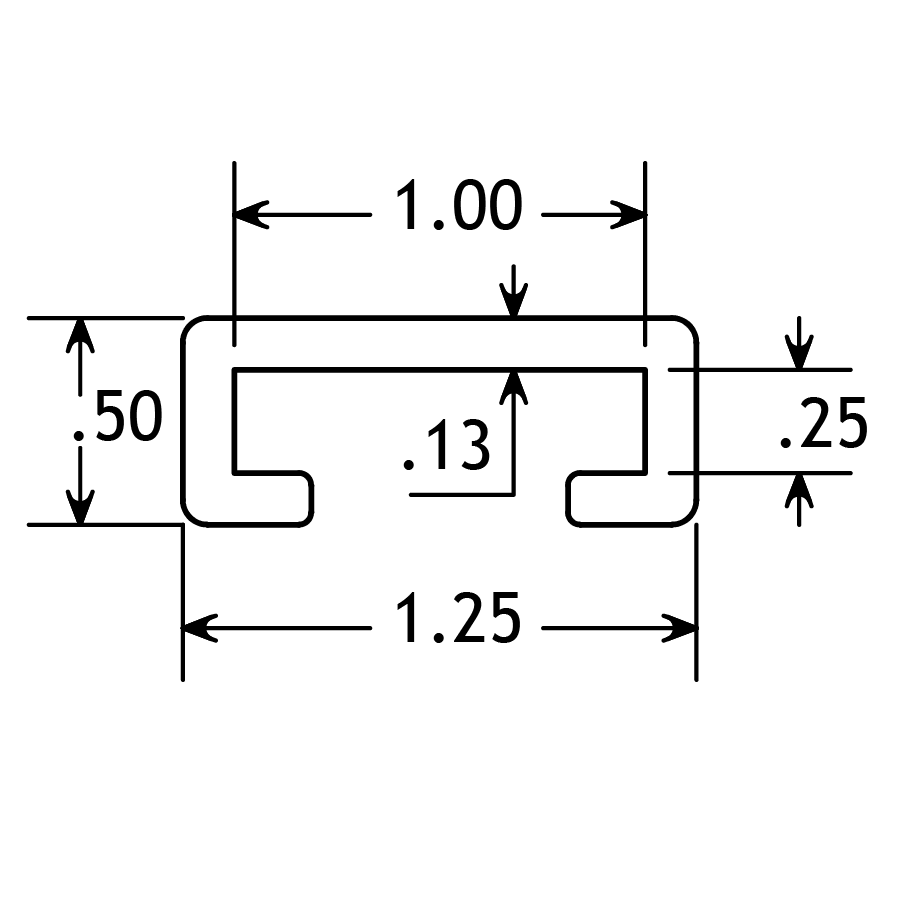

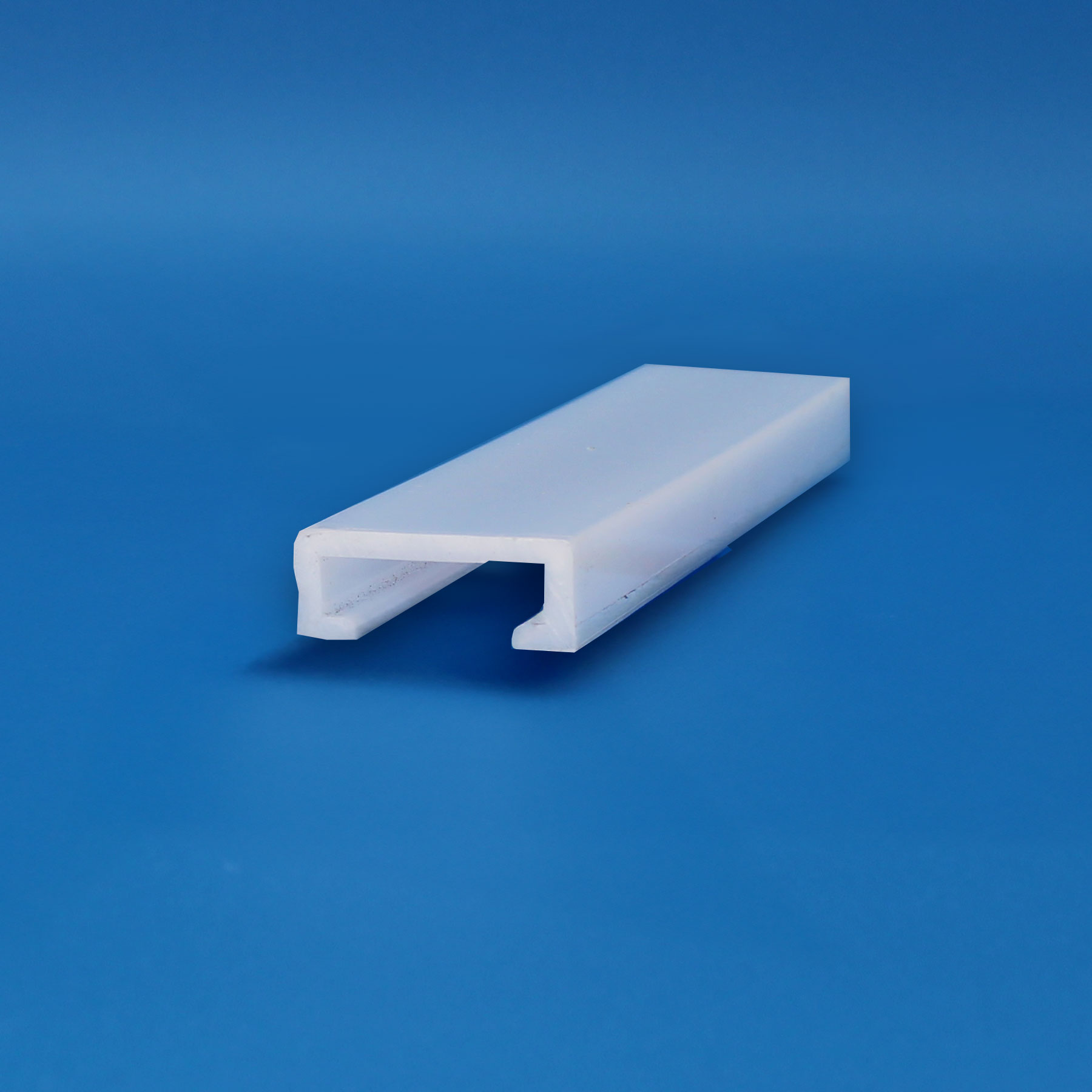

| GRU041607L240 | .5" | 1/4" x 1" | U | WHITE | 1.25" | 1/4" Rail | 20 Ft | UHMW | ||
| GRU041607L120 | .5" | 1/4" x 1" | U | WHITE | 1.25" | 1/4" Rail | 10 Ft | UHMW | ||

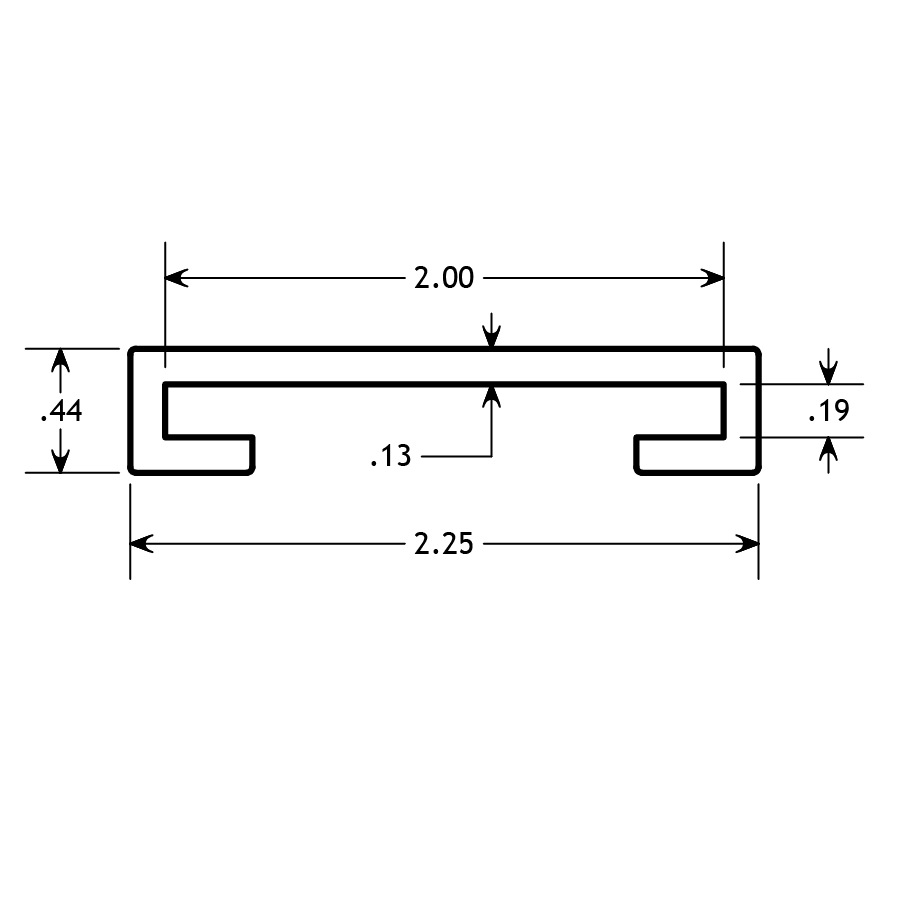

| GRU033224L120 | .44" | 3/16" x 2" | U | WHITE | 2.25" | 1/8"-3/16" Rail | 10 Ft | UHMW | ||

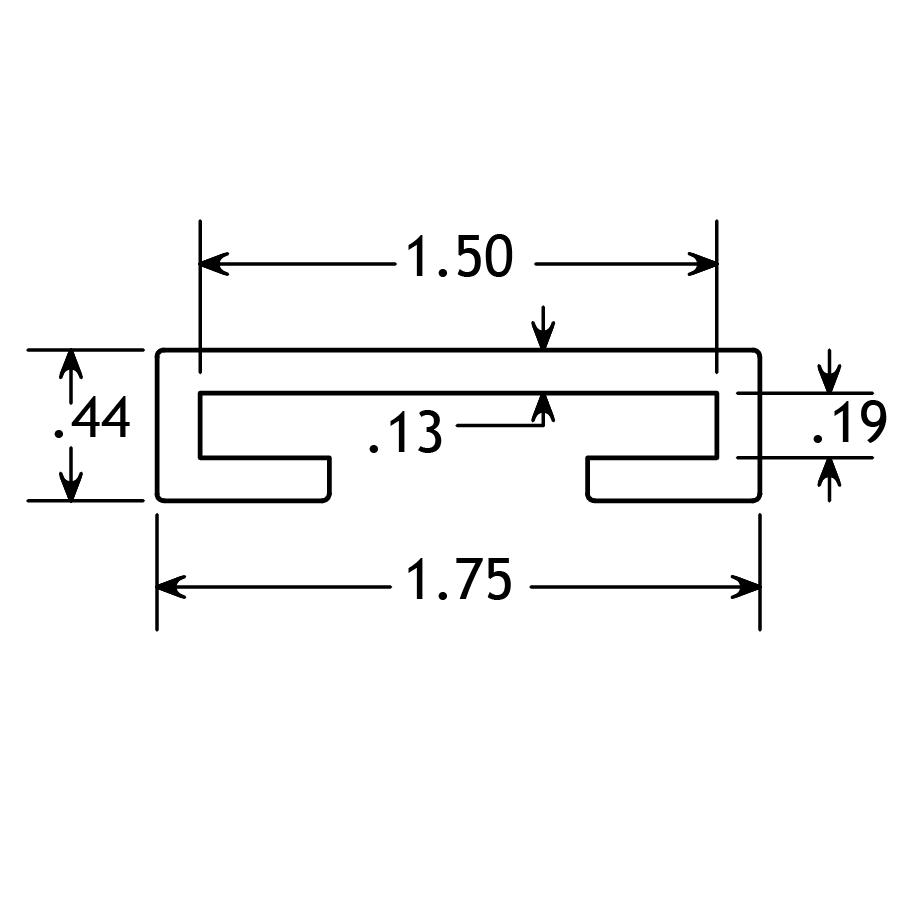

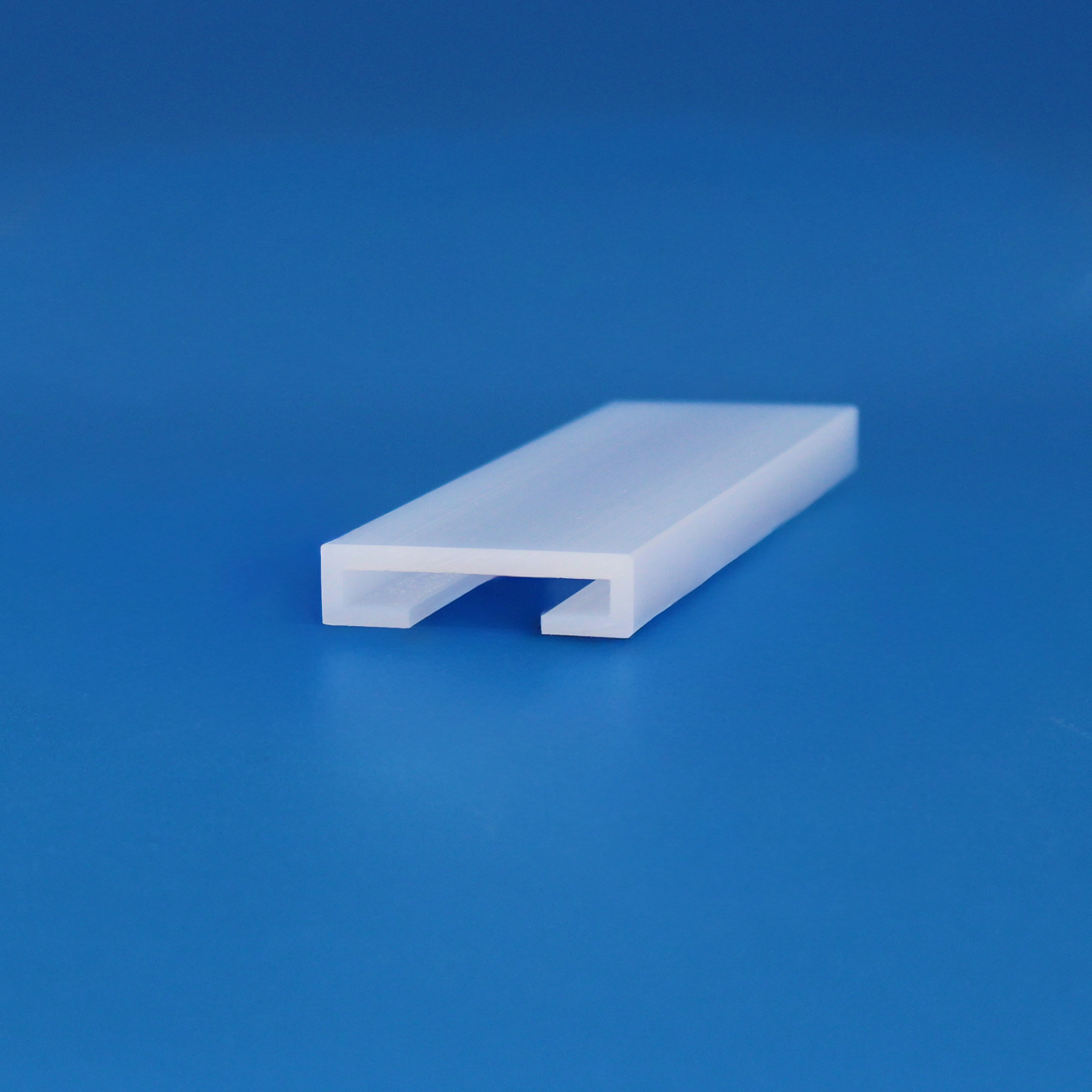

| GRU032407L120 | .44" | 3/16" x 1-1/2" | U | WHITE | 1.75" | 1/8"-3/16" Rail | 10 Ft | UHMW | ||

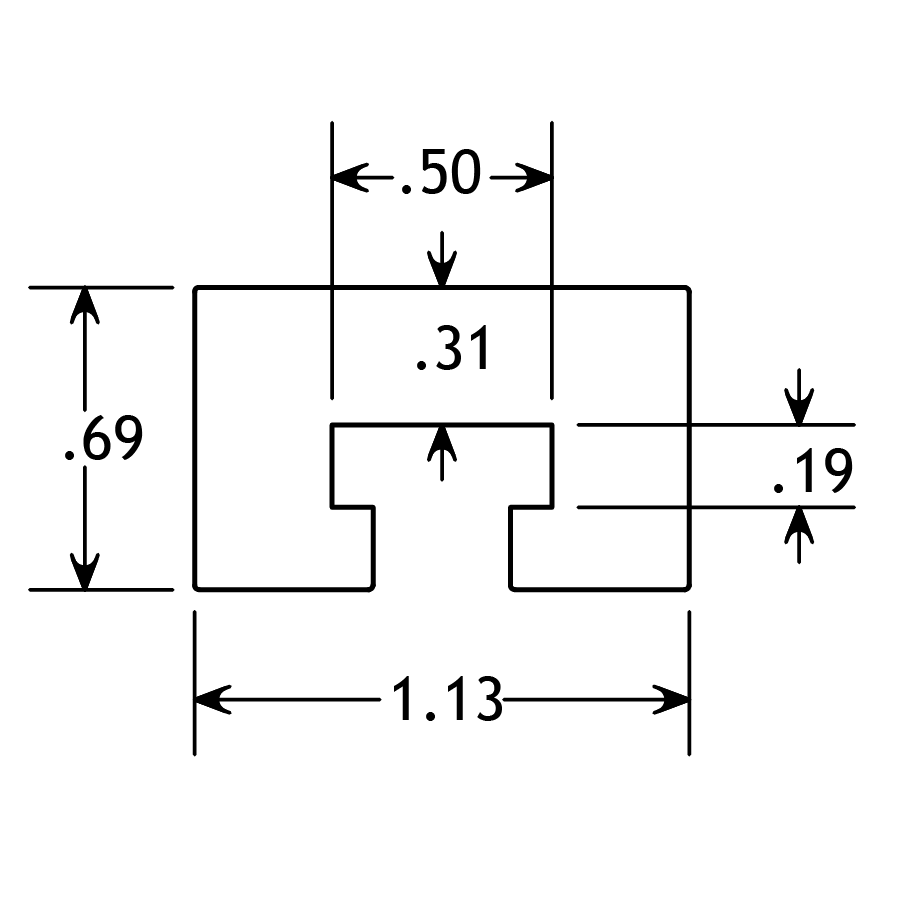

| GRU030811L120 | .69" | 3/16" x 1-1/2" | U | WHITE | 1.13" | 1/8"-3/16" Rail | 10 Ft | UHMW | ||

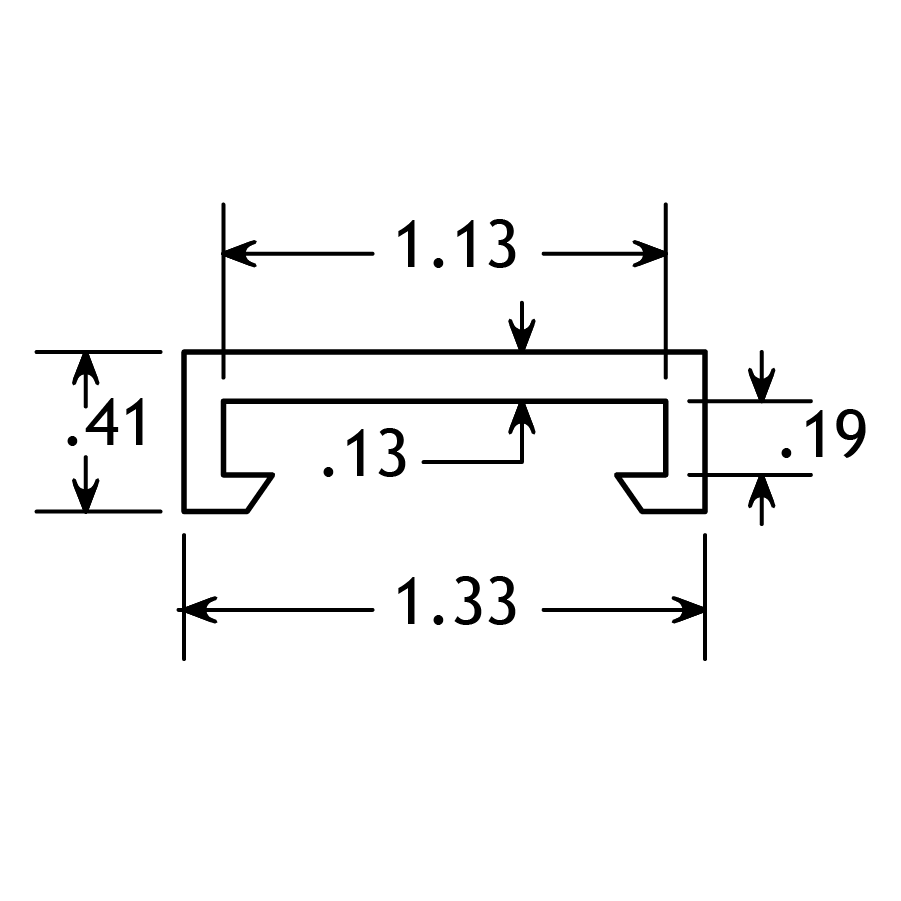

| GRU082404BL240 | .41" | 3/16" x 1-1/8" | U | WHITE | 1.33" | 1/8"-3/16" Rail | 20 Ft | UHMW | ||

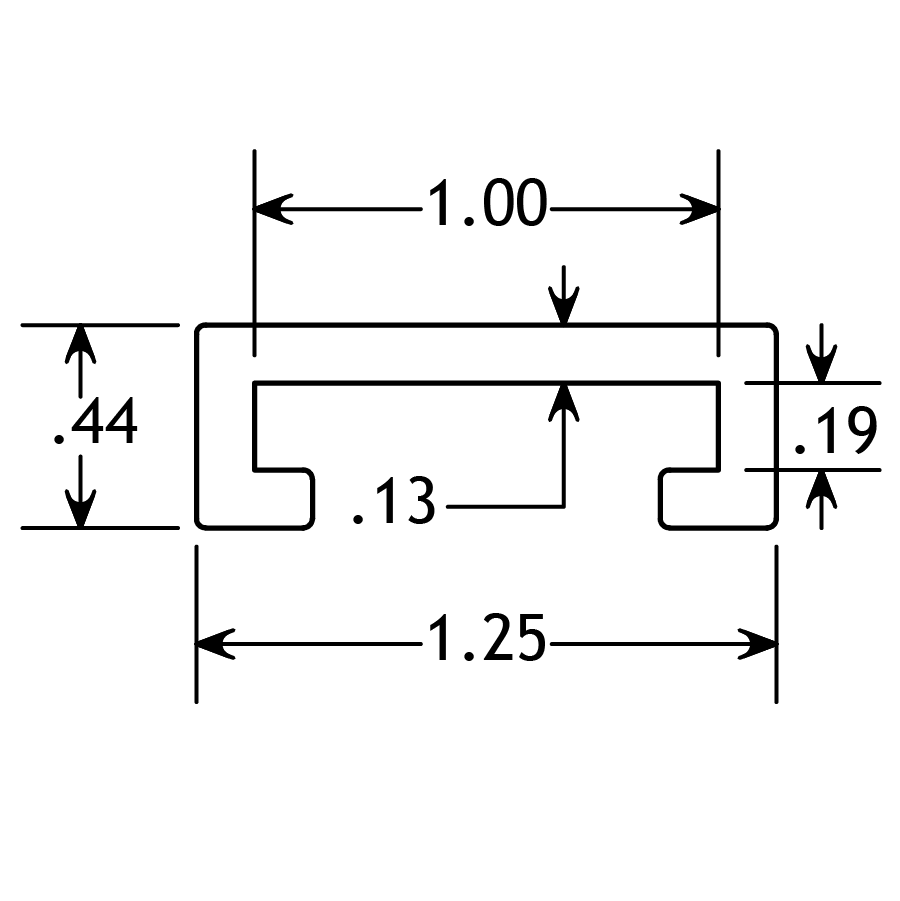

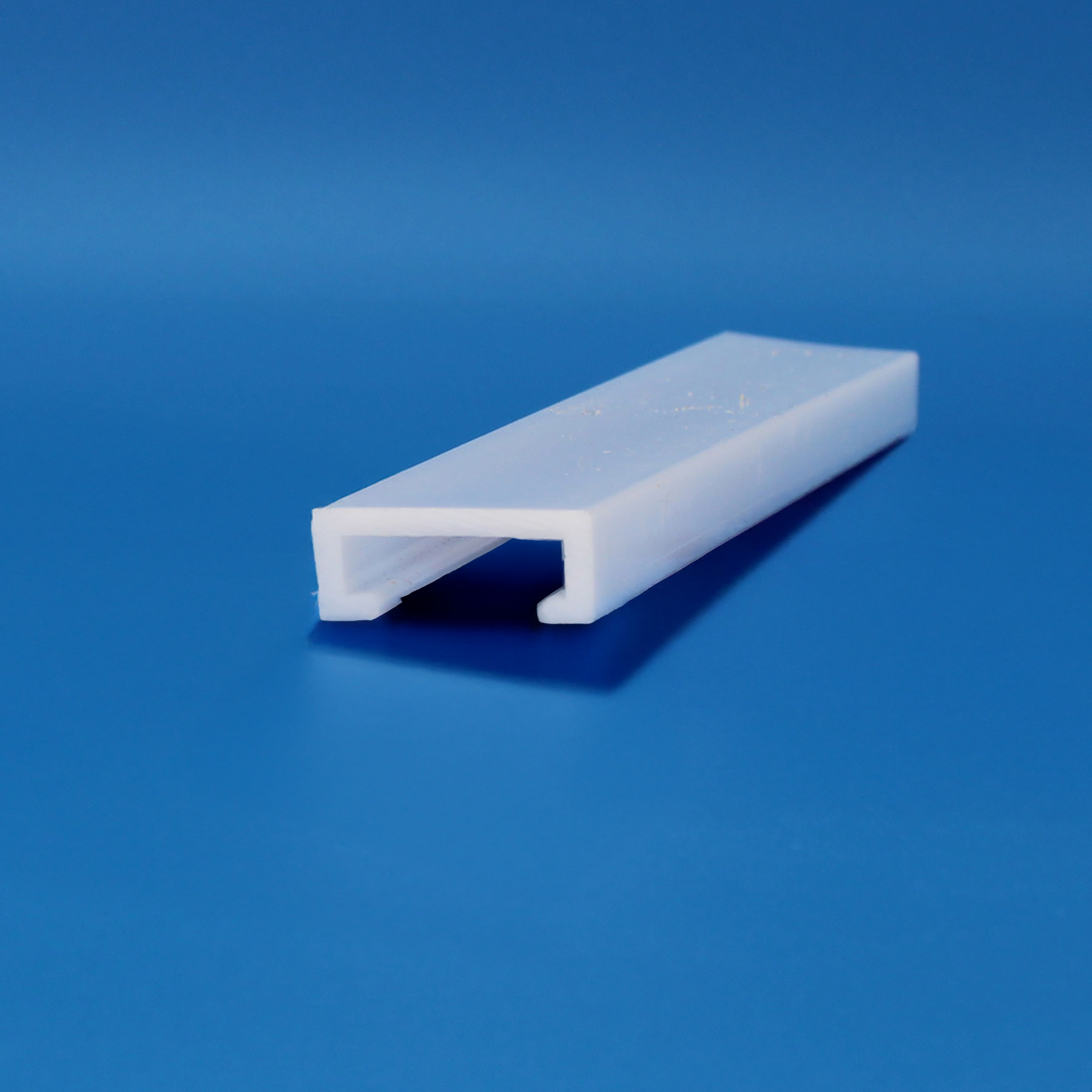

| GRU031607L240 | .44" | 3/16" x 1" | U | WHITE | 1.25" | 1/8"-3/16" Rail | 20 Ft | UHMW | ||
| GRU031607L120 | .44" | 3/16" x 1" | U | WHITE | 1.25" | 1/8"-3/16" Rail | 10 Ft | UHMW | ||

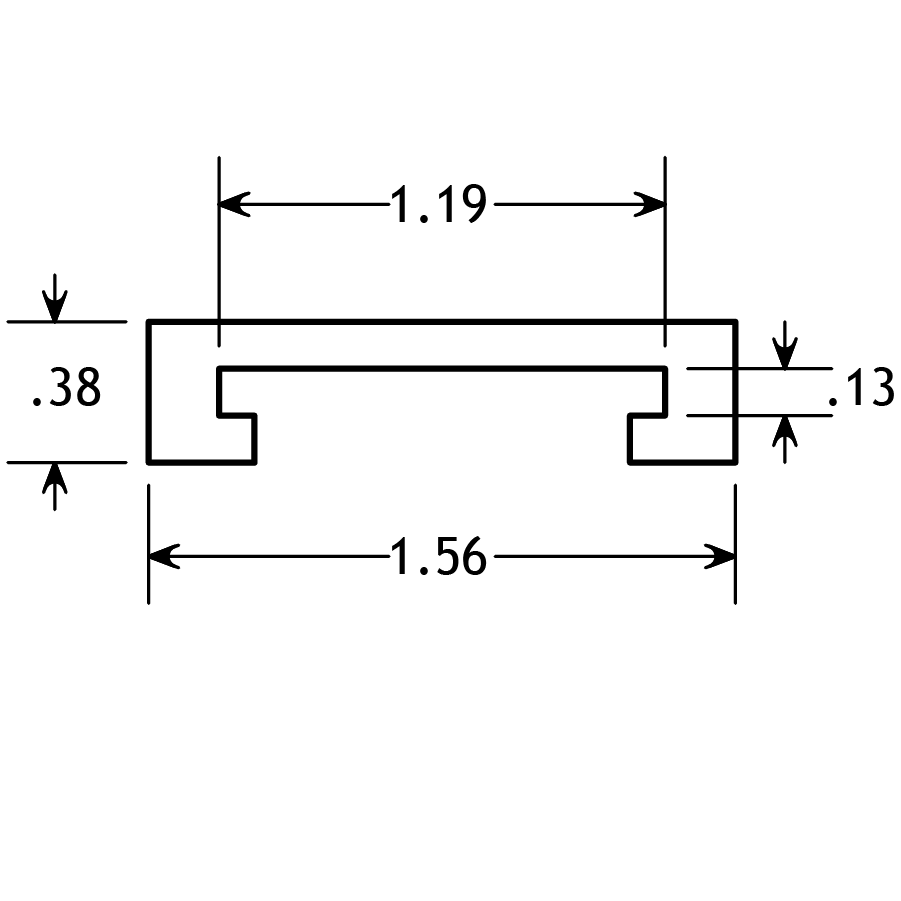

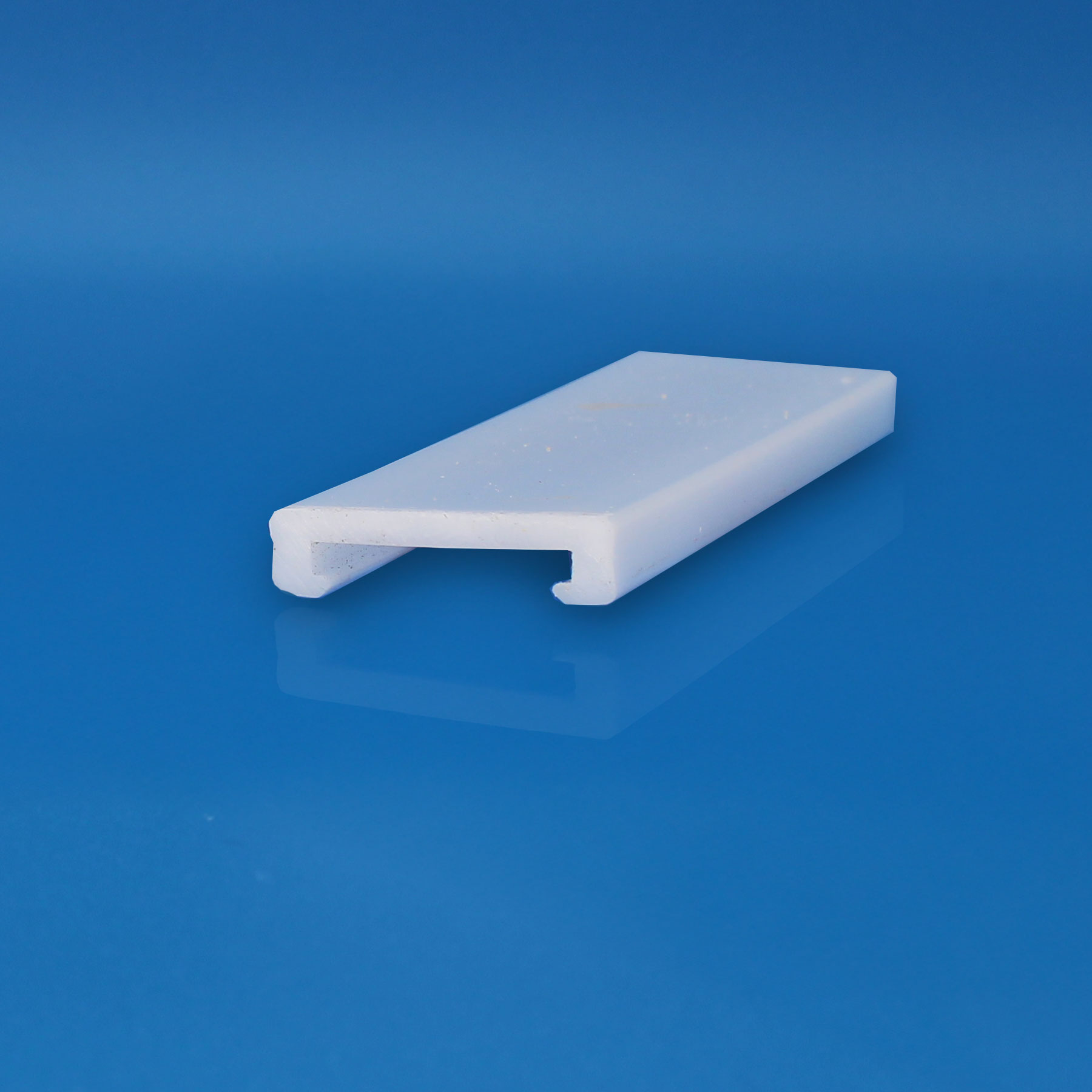

| GRU021906L120 | .38" | 1/8" x 1-3/16" | U | WHITE | 1.56" | 1/8"-3/16" Rail | 10 Ft | UHMW | ||

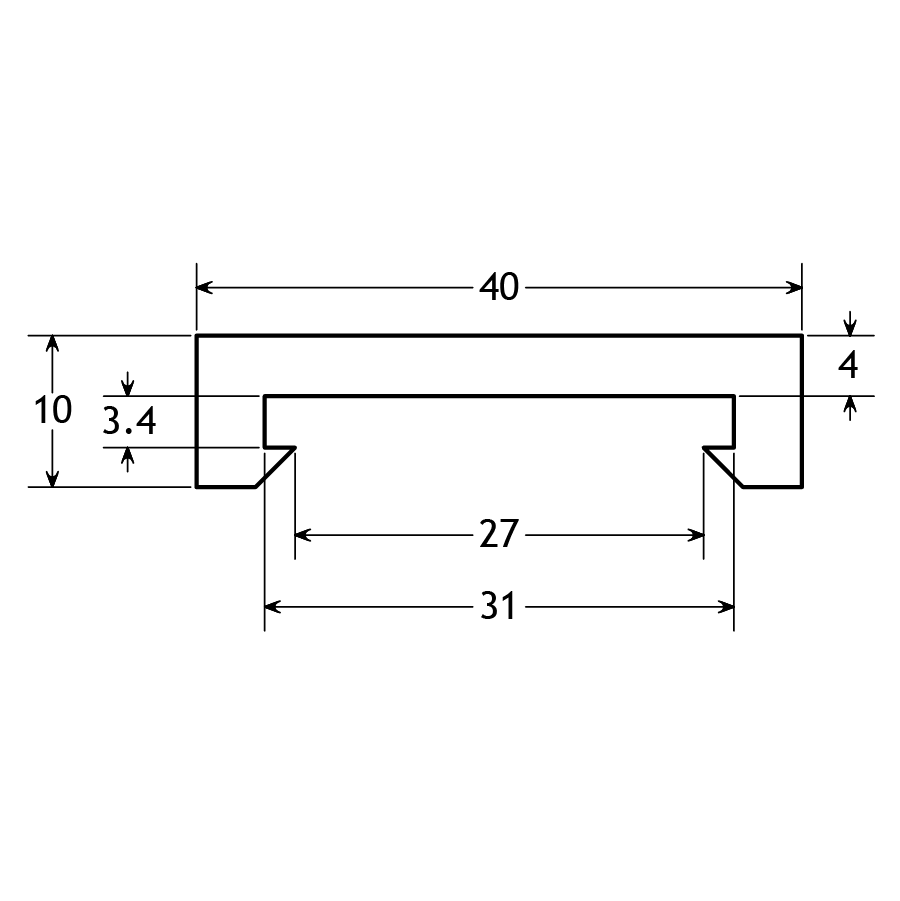

| PP38584123L3M | 10mm | PP38484121L3M | U | Green | 40mm | OTHER | 3 M | UHMW | ||
| CGPDPAMSL120 | 1.02" | P | GREY | 1.31" | OTHER | 10 Ft | PLUS | |||

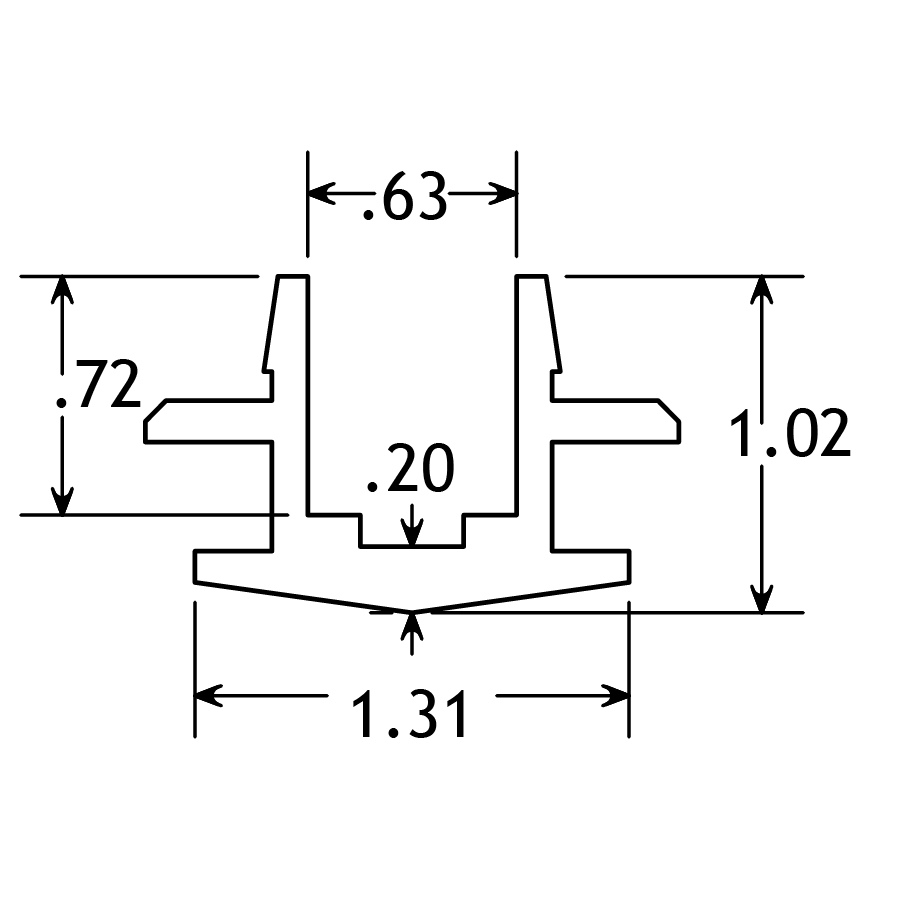

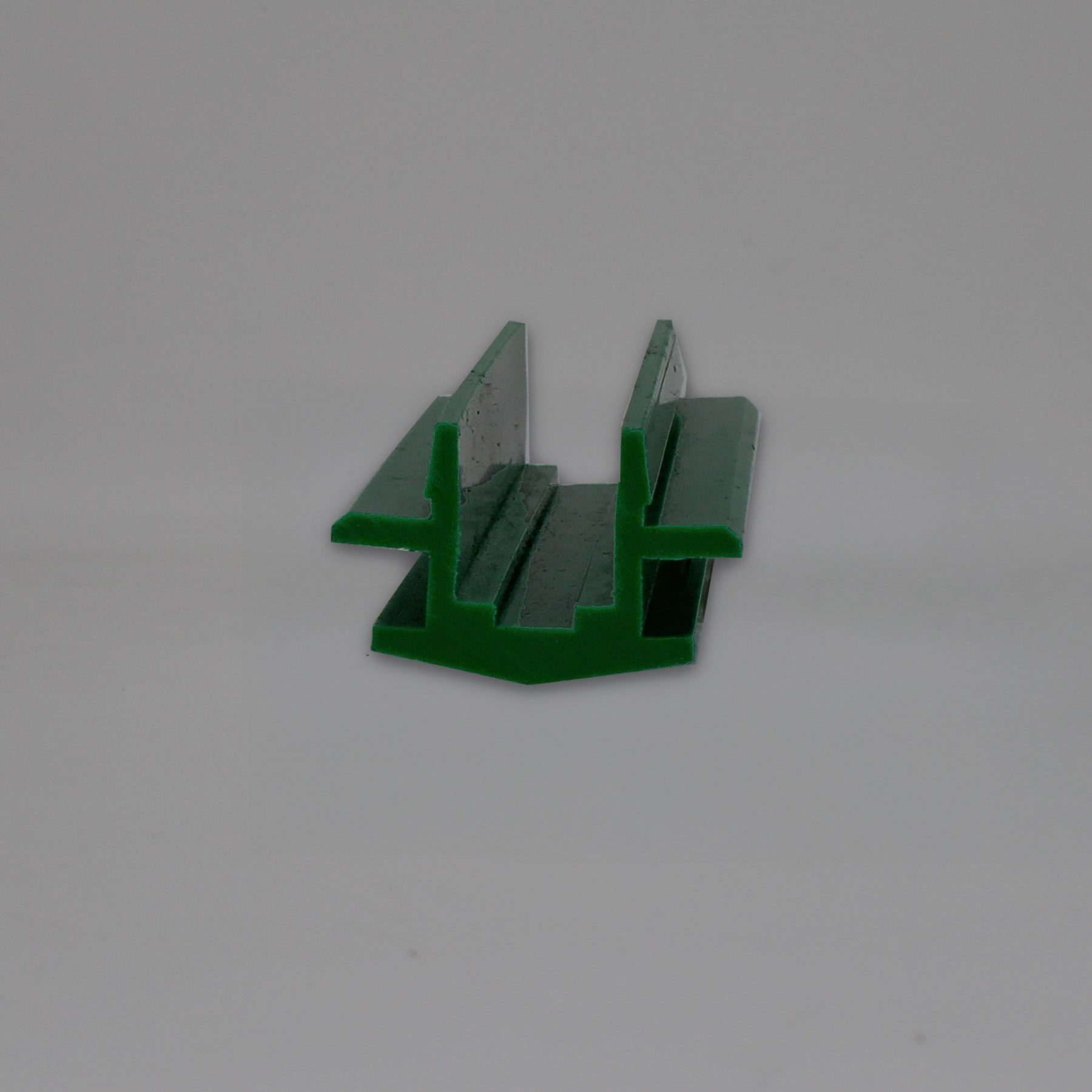

| CGUDPAMSL120 | 1.02" | U | Green | 1.31" | OTHER | 10 Ft | UHMW | |||

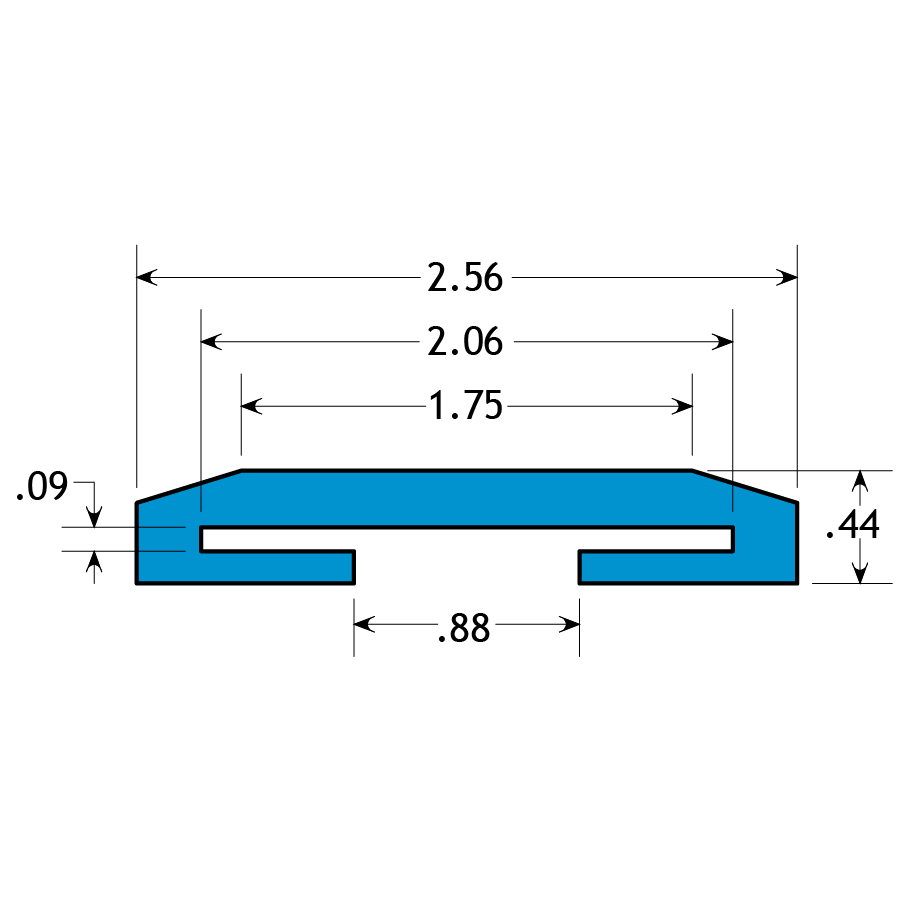

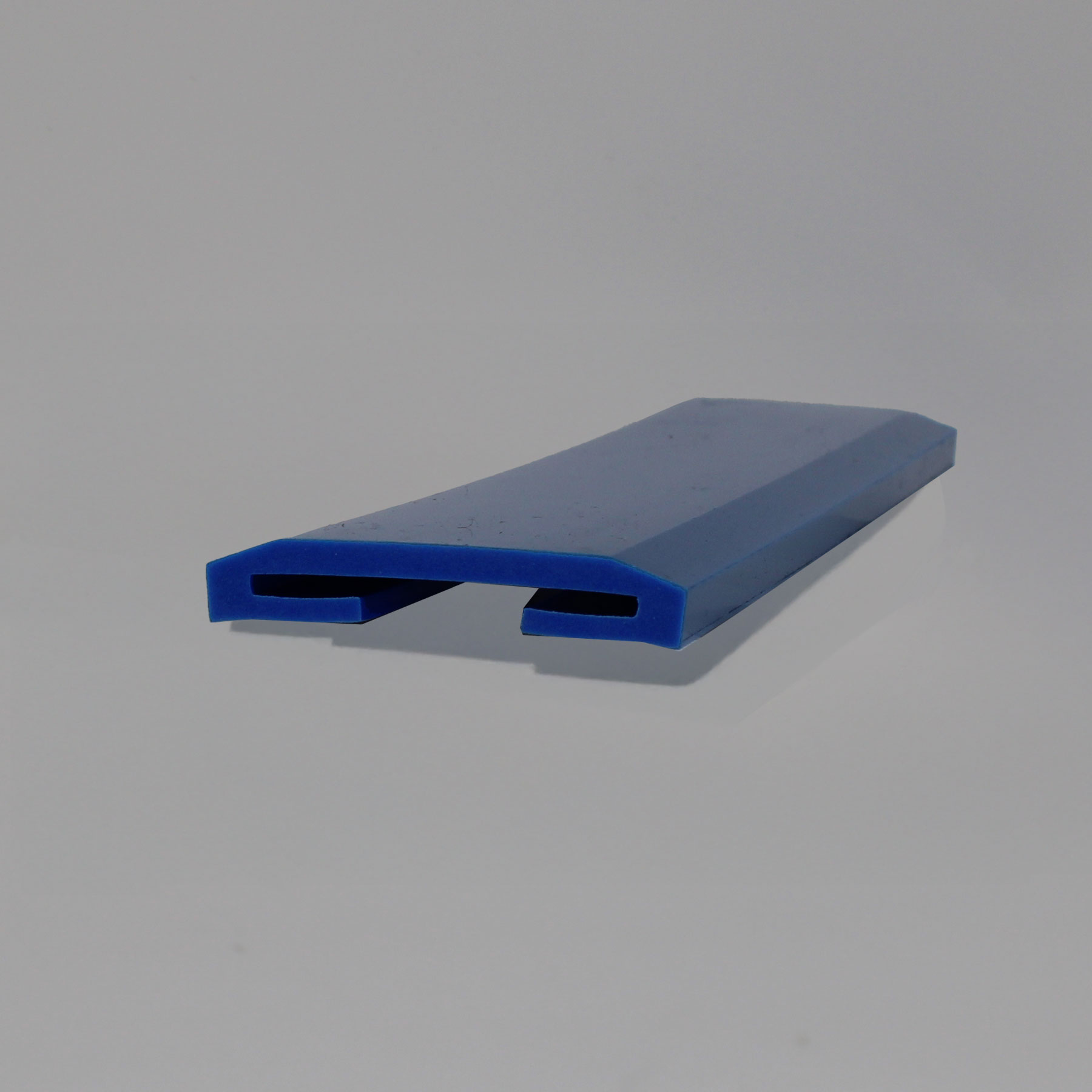

| GRU.0943207L180BLUE | .44" | U | BLUE | 2.56" | OTHER | 15 Ft | UHMW | |||

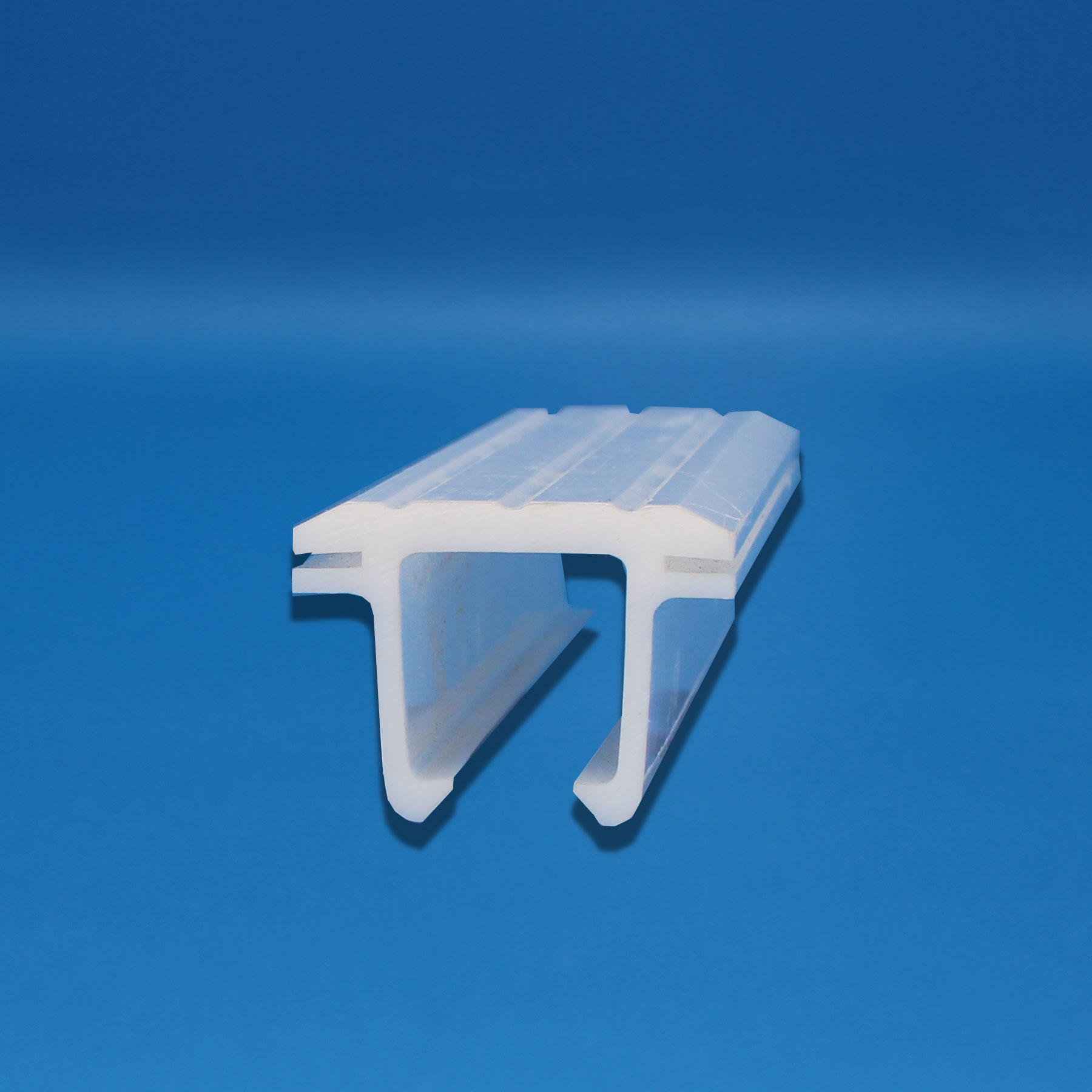

| GRU161622WTL240 | 1.44" | 1 x 1 | U | WHITE | 2" | 1" - 2" Rail | 20 Ft | UHMW | ||

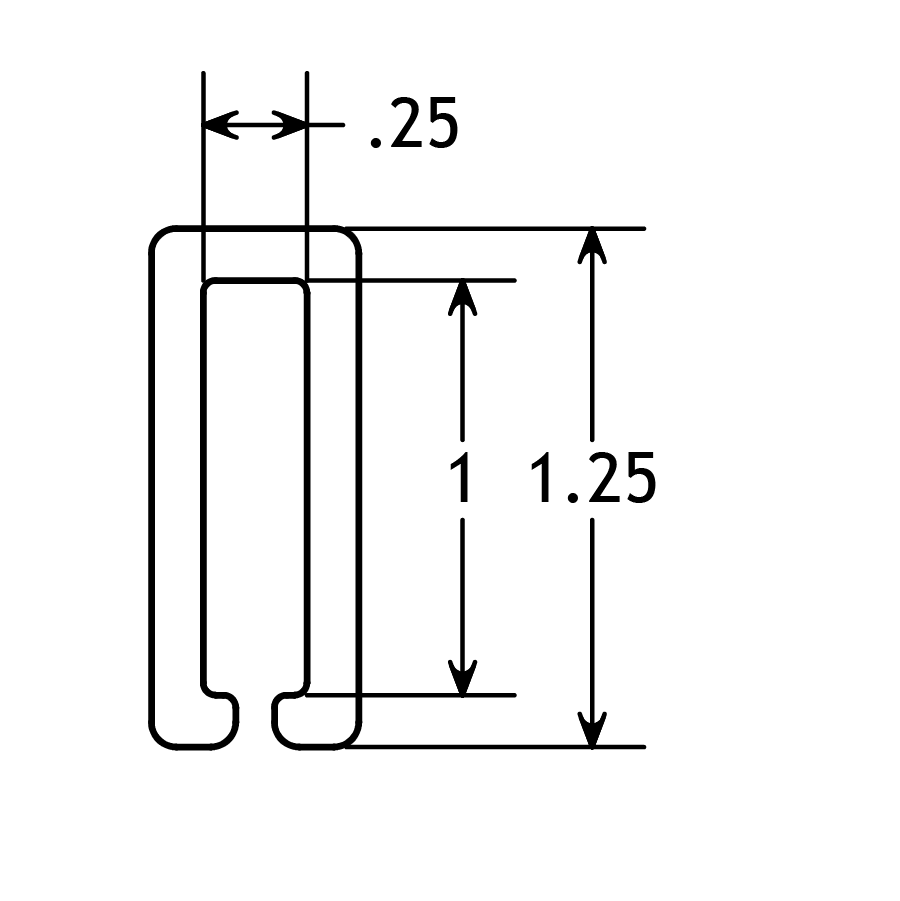

| GRU041620L240 | 1.25" | 1/4" x 1" | U | WHITE | .5" | 1/4" Rail | 20 Ft | UHMW | ||

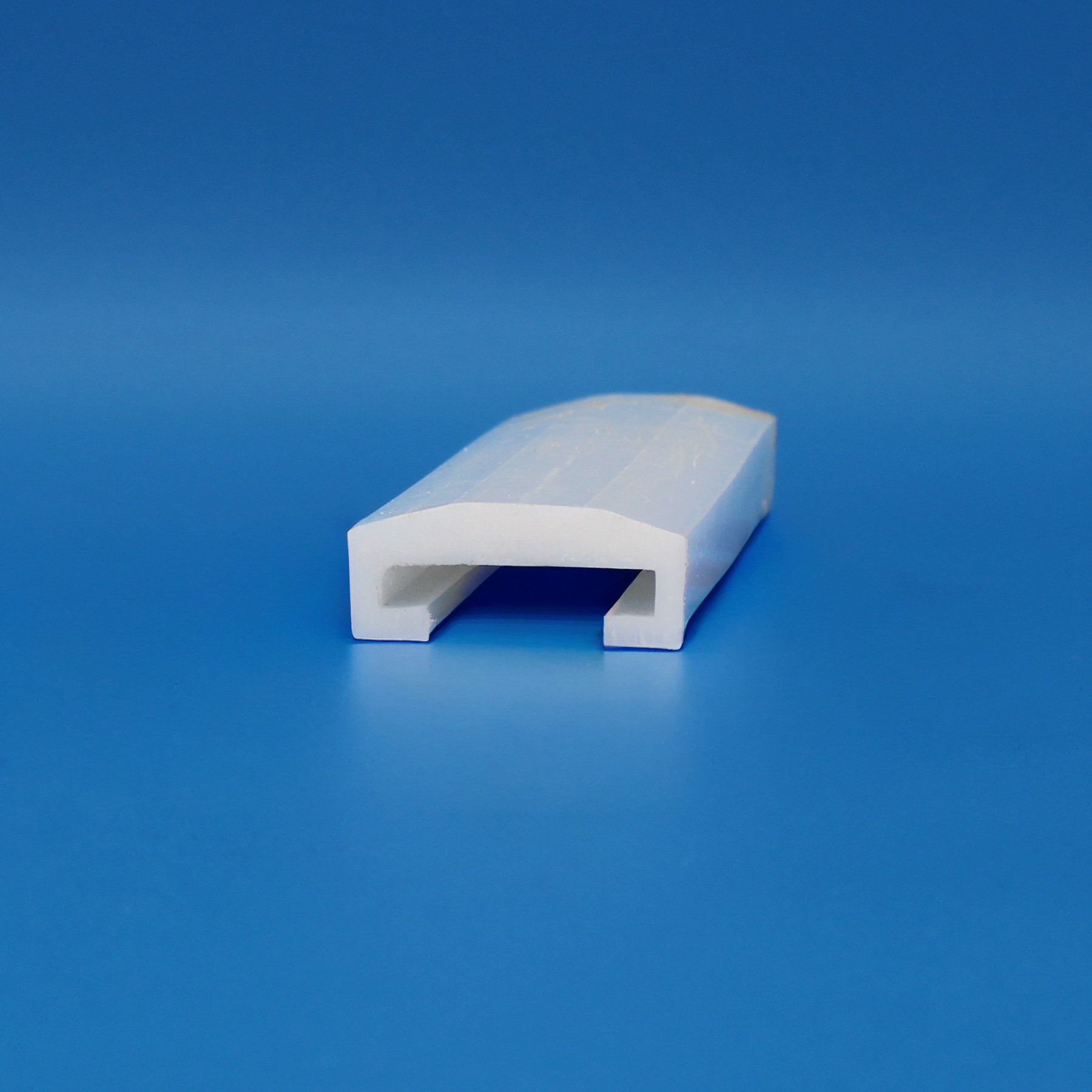

| GRU032010L240 | .625" | 3/16" x 1-1/4" | U | WHITE | 1.55" | 1/8"-3/16" Rail | 20 Ft | UHMW | ||
| GRU032010L120 | .625" | 3/16" x 1-1/4" | U | WHITE | 1.55" | 1/8"-3/16" Rail | 10 Ft | UHMW | ||

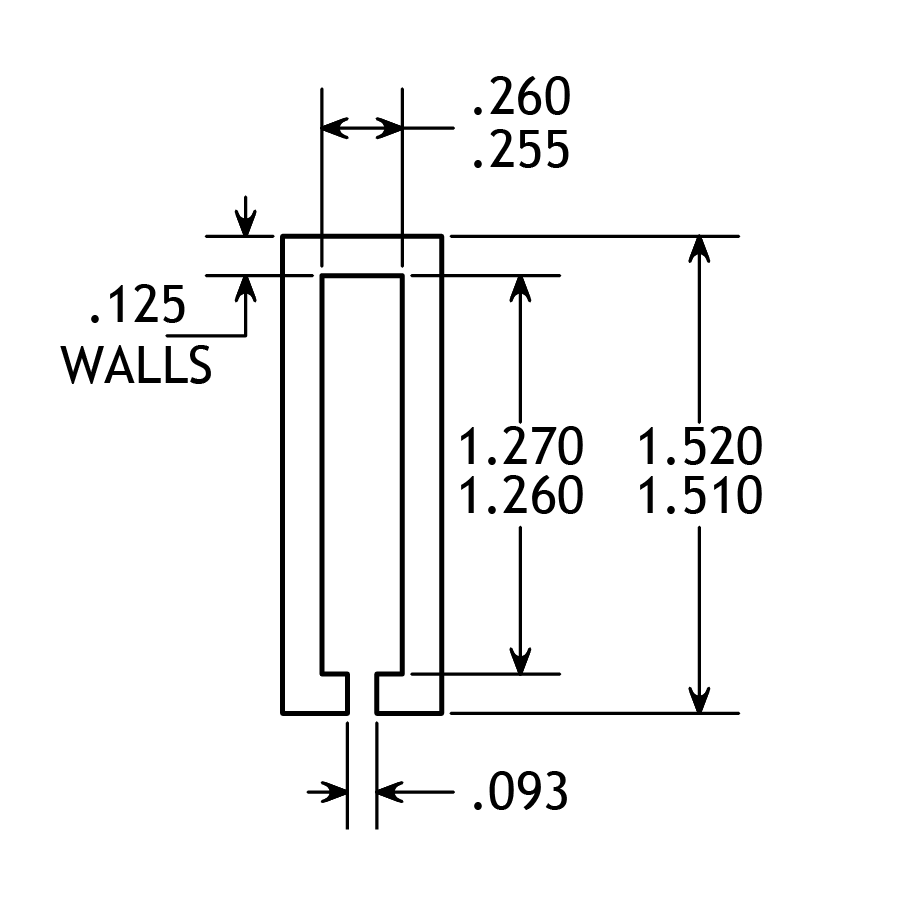

| GRU042024L240 | 1.52" | 1/4" x 1-1/4" | U | WHITE | .51" | 1/4" Rail | 20 Ft | UHMW | ||

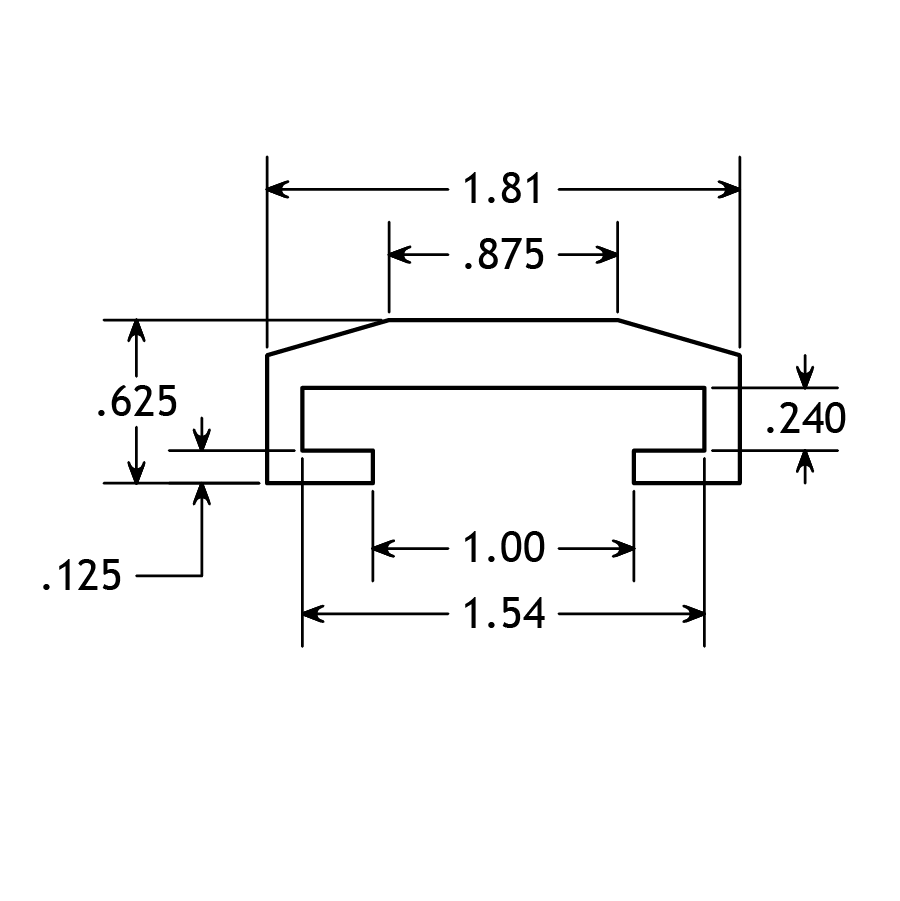

| GRU032410L240 | .625" | 3/16" x 1-1/2" | U | WHITE | 1.81" | 1/8"-3/16" Rail | 20 Ft | UHMW | ||

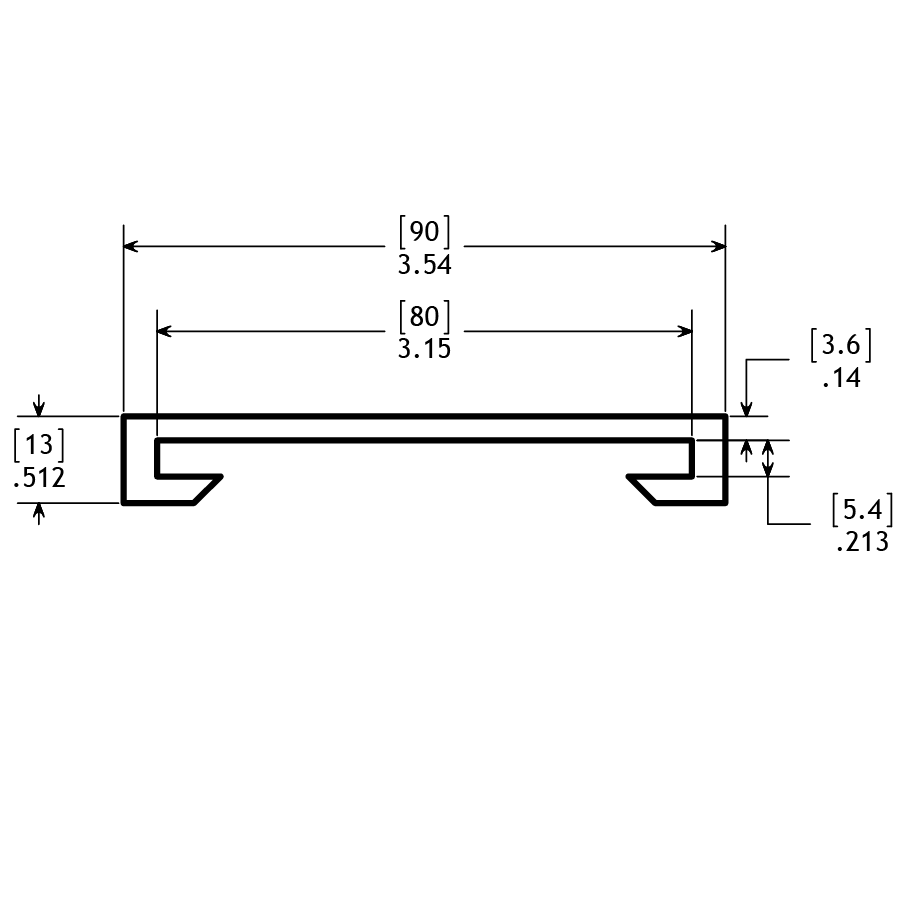

| GRU5.48013MM | 13mm | 5mm x 80mm | U | Black | 90mm | OTHER | 10 Ft | UHMW | ||
| GRU5MM30MML240 | 15mm | 5mm x 30mm | U | WHITE | 30mm | OTHER | 20 Ft | UHMW | ||

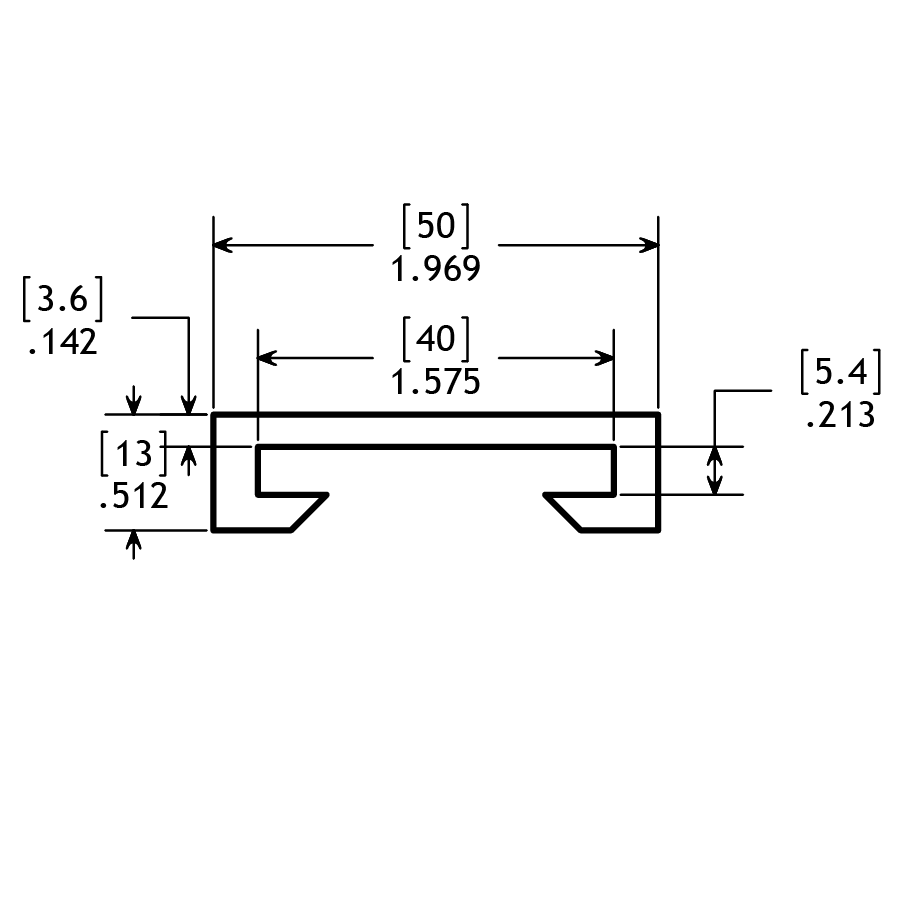

| GRU5.44013MMS | 13mm | 5mm x 40mm | U | WHITE | 50mm | OTHER | 10 Ft | UHMW |
