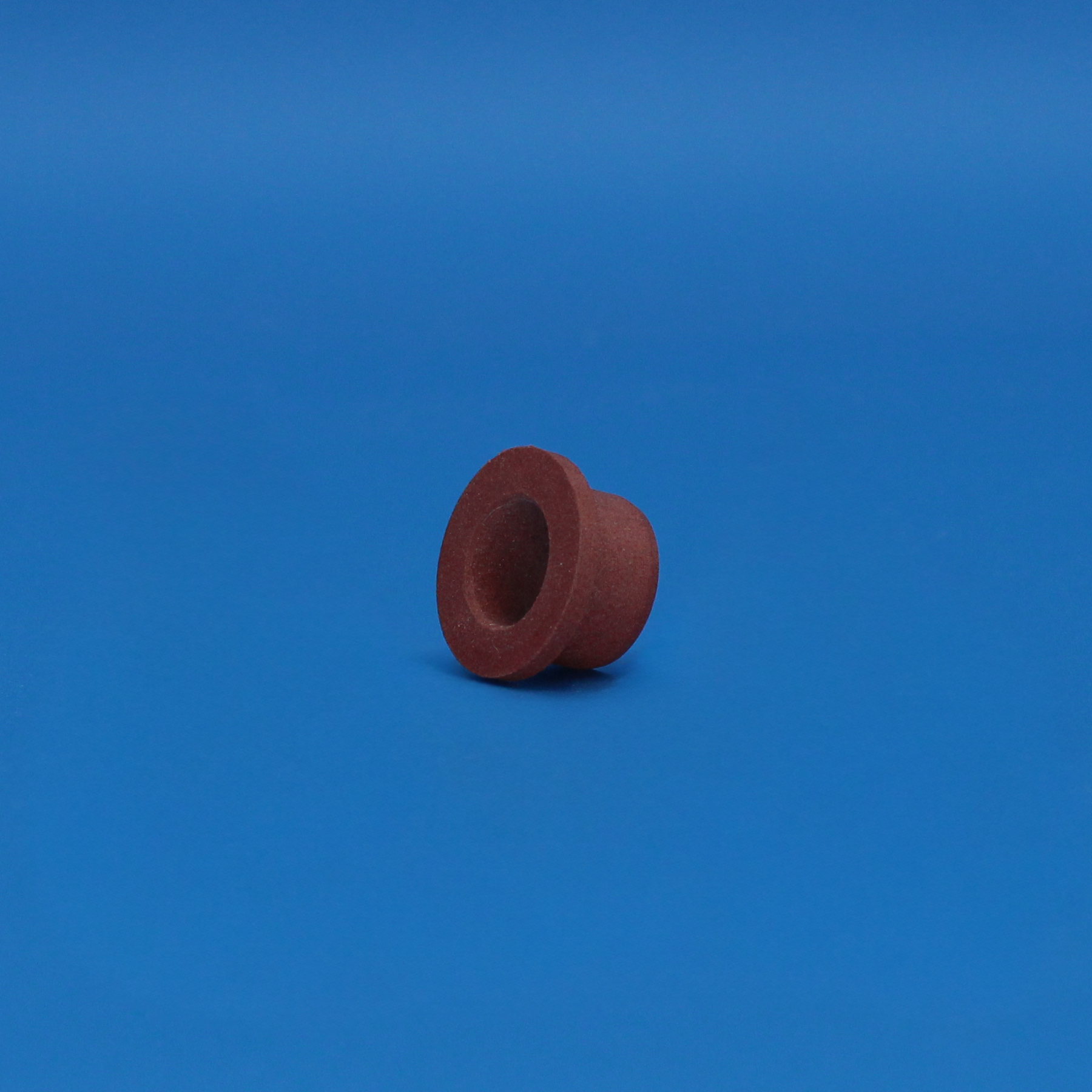

Flange Bearings
| Part No. | Material | ID | OD (ID of Metal Tubing) | Length | Flange Dia. | Material Code | Color | Type | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|
| FLT25MM32MM30MM | PTFE | 25mm | 32mm | 30mm | 39mm | T | WHITE | Flange Bearing | ||
| FLT25MM32MM25MM | PTFE | 25mm | 32mm | 25mm | 39mm | T | WHITE | Flange Bearing | ||
| FLT25MM32MM20MM | PTFE | 25mm | 32mm | 20mm | 39mm | T | WHITE | Flange Bearing | ||
| FLT25MM30MM30MM | PTFE | 25mm | 30mm | 30mm | 39mm | T | WHITE | Flange Bearing | ||
| FLT25MM30MM25MM | PTFE | 25mm | 30mm | 25mm | 39mm | T | WHITE | Flange Bearing | ||
| FLT25MM30MM20MM | PTFE | 25mm | 30mm | 20mm | 35mm | T | WHITE | Flange Bearing | ||
| FLT22MM29MM22MM | PTFE | 22mm | 29mm | 22mm | 36mm | T | WHITE | Flange Bearing | ||
| FLT22MM28MM20MM | PTFE | 22mm | 28mm | 20mm | 34mm | T | WHITE | Flange Bearing | ||
| FLT22MM28MM15MM | PTFE | 22mm | 28mm | 15mm | 34mm | T | WHITE | Flange Bearing | ||
| FLT22MM27MM22MM | PTFE | 22mm | 27mm | 22mm | 32mm | T | WHITE | Flange Bearing | ||
| FLT22MM27MM18MM | PTFE | 22mm | 27mm | 18mm | 35mm | T | WHITE | Flange Bearing | ||
| FLT20MM26MM20MM | PTFE | 20mm | 26mm | 20mm | 32mm | T | WHITE | Flange Bearing | ||
| FLT20MM26MM16MM | PTFE | 20mm | 26mm | 16mm | 32mm | T | WHITE | Flange Bearing | ||
| FLT20MM26MM12MM | PTFE | 20mm | 26mm | 12mm | 32mm | T | WHITE | Flange Bearing | ||
| FLT20MM24MM20MM | PTFE | 20mm | 24mm | 20mm | 28mm | T | WHITE | Flange Bearing | ||
| FLT20MM24MM12MM | PTFE | 20mm | 24mm | 12mm | 28mm | T | WHITE | Flange Bearing | ||
| FLT18MM24MM22MM | PTFE | 18mm | 24mm | 22mm | 30mm | T | WHITE | Flange Bearing | ||
| FLT18MM24MM18MM | PTFE | 18mm | 24mm | 18mm | 30mm | T | WHITE | Flange Bearing | ||
| FLT18MM22MM22MM | PTFE | 18mm | 22mm | 22mm | 26mm | T | WHITE | Flange Bearing | ||
| FLT16MM22MM20MM | PTFE | 16mm | 22mm | 20mm | 28mm | T | WHITE | Flange Bearing | ||
| FLT16MM20MM20MM | PTFE | 16mm | 20mm | 20mm | 24mm | T | WHITE | Flange Bearing | ||
| FLT16MM20MM16MM | PTFE | 16mm | 20mm | 16mm | 24mm | T | WHITE | Flange Bearing | ||
| FLT16MM20MM12MM | PTFE | 16mm | 20mm | 12mm | 24mm | T | WHITE | Flange Bearing | ||
| FLT15MM21MM16MM | PTFE | 15mm | 21mm | 16mm | 27mm | T | WHITE | Flange Bearing | ||
| FLT15MM19MM12MM | PTFE | 15mm | 19mm | 12mm | 23mm | T | WHITE | Flange Bearing | ||
| FLT14MM20MM22MM | PTFE | 14mm | 20mm | 22mm | 26mm | T | WHITE | Flange Bearing | ||
| FLT14MM20MM18MM | PTFE | 14mm | 20mm | 18mm | 26mm | T | WHITE | Flange Bearing | ||
| FLT14MM20MM14MM | PTFE | 14mm | 20mm | 14mm | 26mm | T | WHITE | Flange Bearing | ||
| FLT14MM18MM22MM | PTFE | 14mm | 18mm | 22mm | 22mm | T | WHITE | Flange Bearing | ||
| FLT14MM18MM14MM | PTFE | 14mm | 18mm | 14mm | 22mm | T | WHITE | Flange Bearing | ||
| FLT12MM18MM8MM | PTFE | 12mm | 18mm | 8mm | 24mm | T | WHITE | Flange Bearing | ||
| FLT12MM18MM20MM | PTFE | 12mm | 18mm | 20mm | 24mm | T | WHITE | Flange Bearing | ||
| FLT12MM18MM12MM | PTFE | 12mm | 18mm | 12mm | 24mm | T | WHITE | Flange Bearing | ||
| FLT12MM17MM20MM | PTFE | 12mm | 17mm | 20mm | 22mm | T | WHITE | Flange Bearing | ||
| FLT12MM17MM12MM | PTFE | 12mm | 17mm | 12mm | 22mm | T | WHITE | Flange Bearing | ||
| FLT12MM15MM20MM | PTFE | 12mm | 15mm | 20mm | 18mm | T | WHITE | Flange Bearing | ||
| FLT12MM15MM16MM | PTFE | 12mm | 15mm | 16mm | 18mm | T | WHITE | Flange Bearing | ||
| FLT12MM15MM12MM | PTFE | 12mm | 15mm | 12mm | 18mm | T | WHITE | Flange Bearing | ||
| FLT10MM16MM16MM | PTFE | 10mm | 16mm | 16mm | 22mm | T | WHITE | Flange Bearing | ||
| FLT10MM16MM12MM | PTFE | 10mm | 16mm | 12mm | 22mm | T | WHITE | Flange Bearing | ||
| FLT10MM13MM16MM | PTFE | 10mm | 13mm | 16mm | 16mm | T | WHITE | Flange Bearing | ||
| FLT10MM13MM12MM | PTFE | 10mm | 13mm | 12mm | 16mm | T | WHITE | Flange Bearing | ||
| FLRB8MM12MM8MM | Brg. Grade PTFE | 8mm | 12mm | 8mm | 16mm | RB | Maroon | Flange Bearing | ||
| FLRB8MM12MM16MM | Brg. Grade PTFE | 8mm | 12mm | 16mm | 16mm | RB | Maroon | Flange Bearing | ||
| FLRB8MM12MM12MM | Brg. Grade PTFE | 8mm | 12mm | 12mm | 16mm | RB | Maroon | Flange Bearing | ||
| FLRB6MM9MM10MM | Brg. Grade PTFE | 6mm | 9mm | 10mm | 12mm | RB | Maroon | Flange Bearing | ||
| FLRB5MM8MM5MM | Brg. Grade PTFE | 5mm | 8mm | 5mm | 11mm | RB | Maroon | Flange Bearing | ||
| FLRB5MM8MM10MM | Brg. Grade PTFE | 5mm | 8mm | 10mm | 11mm | RB | Maroon | Flange Bearing | ||
| FLRB3MM6MM4MM | Brg. Grade PTFE | 3mm | 6mm | 4mm | 9mm | RB | Maroon | Flange Bearing | ||
| FLRB35MM40MM25MM | Brg. Grade PTFE | 35mm | 40mm | 25mm | 45mm | RB | Maroon | Flange Bearing |
