Flange Bearings
| Part No. | Material | ID | OD (ID of Metal Tubing) | Length | Flange Dia. | Material Code | Color | Type | Shaft Size | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|

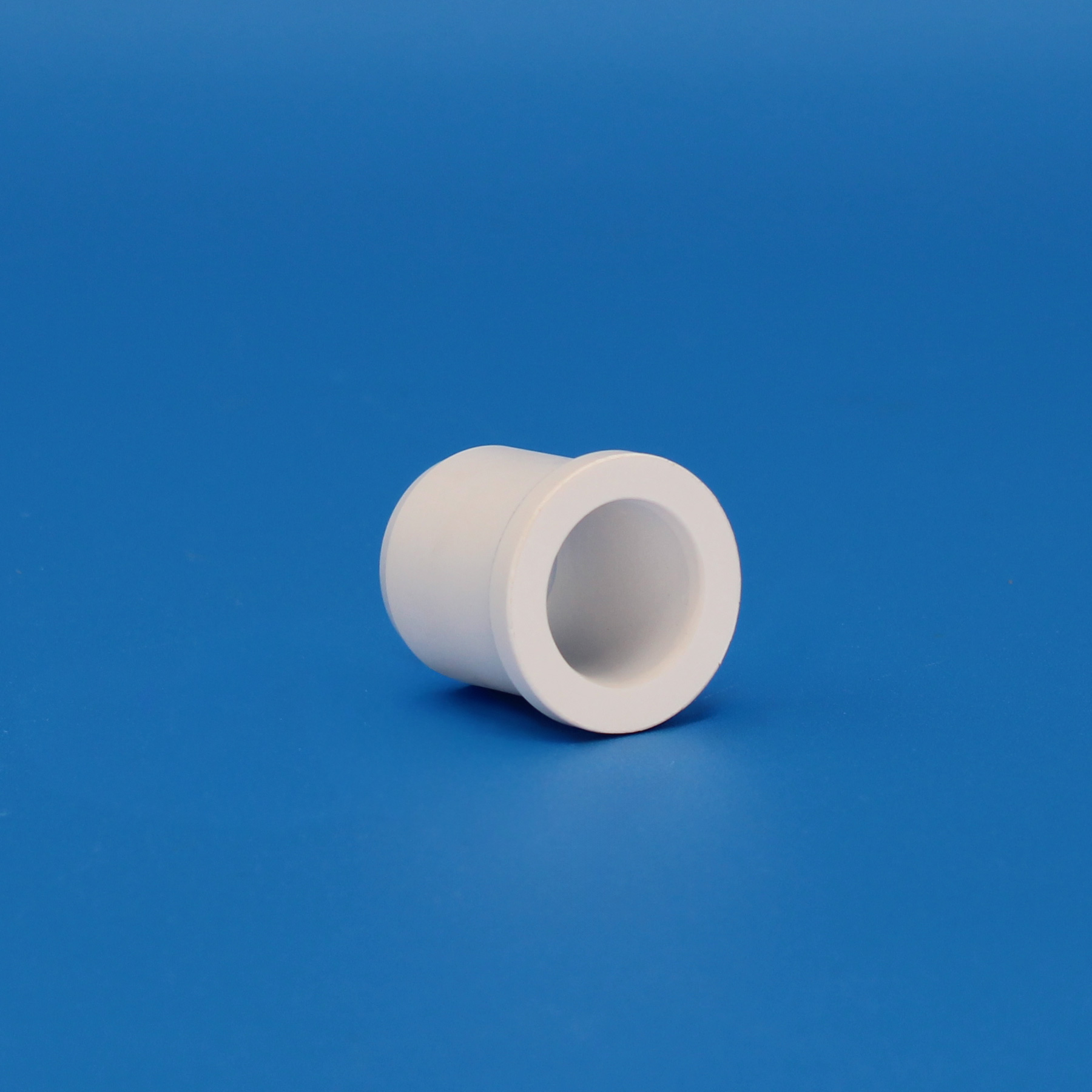

| FLTM8MM12MM10MM | POBLON | 8mm | 12mm | 10mm | 16mm | TM | WHITE | Flange Bearing | |||
| FLTM20MM25MM15MM | POBLON | 20mm | 25mm | 15mm | 30mm | TM | WHITE | Flange Bearing | |||
| FLTM1418024 | POBLON | 0.875" | 1-1/8" | 1-1/2" | 1-3/8" | TM | WHITE | Flange Bearing | |||
| FLTM1216021 | POBLON | 3/4" | 1" | 1-5/16" | 1-3/4" | TM | WHITE | Flange Bearing | |||
| FLTM1216016S | POBLON | 3/4" | 1" | 1" | 1-3/8" | TM | WHITE | Flange Bearing | |||
| FLTM0812019 | POBLON | 1/2" | 3/4" | 1-3/16" | 1" | TM | WHITE | Flange Bearing | |||
| FLTM0610012 | POBLON | 3/8" | 5/8" | 3/4" | 7/8" | TM | WHITE | Flange Bearing | |||
| FLTM0406008S1 | POBLON | 1/4" | 3/8" | 1/2" | 1/2" | TM | WHITE | Flange Bearing | |||

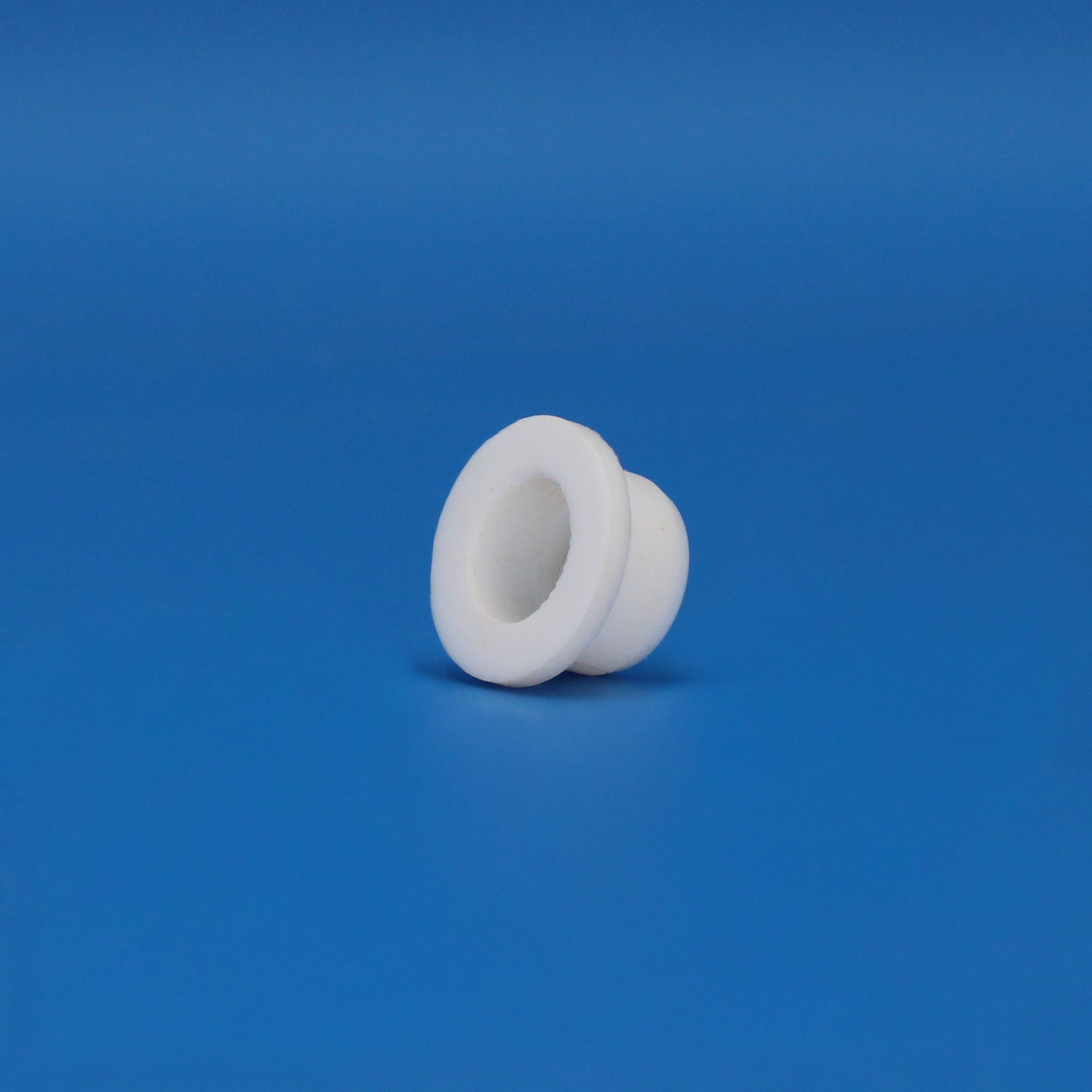

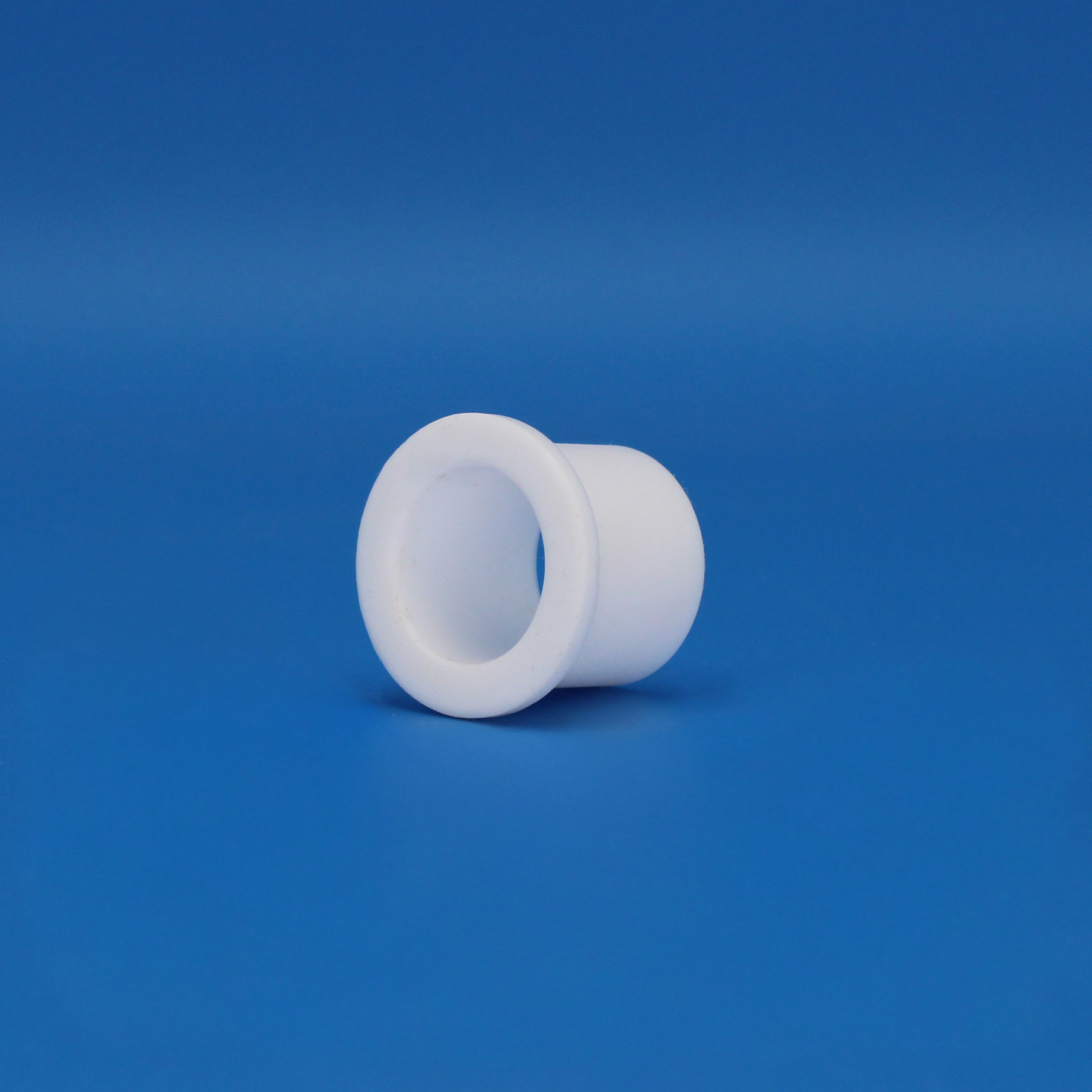

| FLT2226019S | PTFE | 1-3/8" | 1-5/8" | 1-3/16" | 2-3/32" | T | WHITE | Flange Bearing | |||
| FLT2024020NS | PTFE | 1-1/4" | 1-1/2" | 1-1/4" | 1-3/4" | T | WHITE | Flange Bearing | |||
| FLT1622016 | PTFE | 1" | 1-3/8" | 1" | 1-5/8" | T | WHITE | Flange Bearing | |||
| FLT1620016 | PTFE | 1" | 1-1/4" | 1" | 1-7/16" | T | WHITE | Flange Bearing | |||
| FLT1216016S1 | PTFE | 3/4" | 1" | 1" | 1-3/16" | T | WHITE | Flange Bearing | |||
| FLT1216016 | PTFE | 3/4" | 1" | 1" | 1-1/4" | T | WHITE | Flange Bearing | |||
| FLT1012012 | PTFE | 5/8" | 3/4" | 3/4" | 15/16” | T | WHITE | Flange Bearing | |||
| FLT0812016 | PTFE | 1/2" | 3/4" | 1" | 1" | T | WHITE | Flange Bearing | |||
| FLT0812003S | PTFE | 1/2" | 3/4" | 0.188" | 0.925" | T | WHITE | Flange Bearing | |||
| FLT0810012S | PTFE | 1/2" | 5/8" | 3/4" | 7/8" | T | WHITE | Flange Bearing | |||
| FLT0810010S | PTFE | 1/2" | 5/8" | 5/8" | 3/4” | T | WHITE | Flange Bearing | |||
| FLT0810008S | PTFE | 1/2" | 5/8" | 1/2" | T | WHITE | Flange Bearing | 7/8” | |||
| FLT0810006S | PTFE | 1/2" | 5/8" | 3/8” | 7/8" | T | WHITE | Flange Bearing | |||
| FLT0612016S | PTFE | 3/8" | 3/4" | 1" | 1" | T | WHITE | Flange Bearing | |||
| FLT0608006S | PTFE | 3/8" | 1/2" | 3/8” | 5/8” | T | WHITE | Flange Bearing | |||
| FLT0608003 | PTFE | 3/8" | 1/2" | 3/16” | 3/4” | T | WHITE | Flange Bearing | |||
| FLT0406006 | PTFE | 1/4" | 3/8" | 3/8” | 1/2" | T | WHITE | Flange Bearing | |||
| FLT0305004S | PTFE | 3/16” | 5/16” | 1/4” | 7/16” | T | WHITE | Flange Bearing | |||

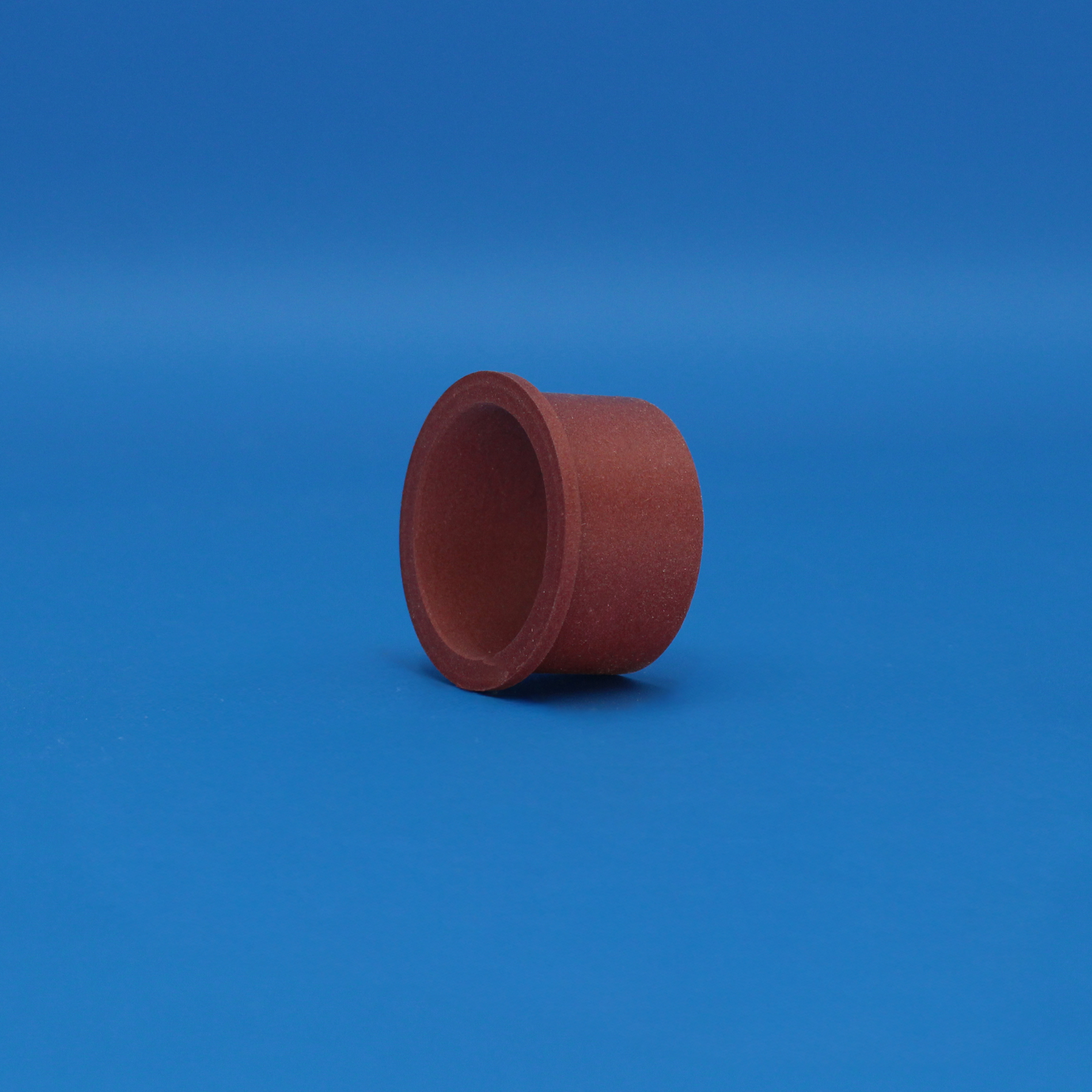

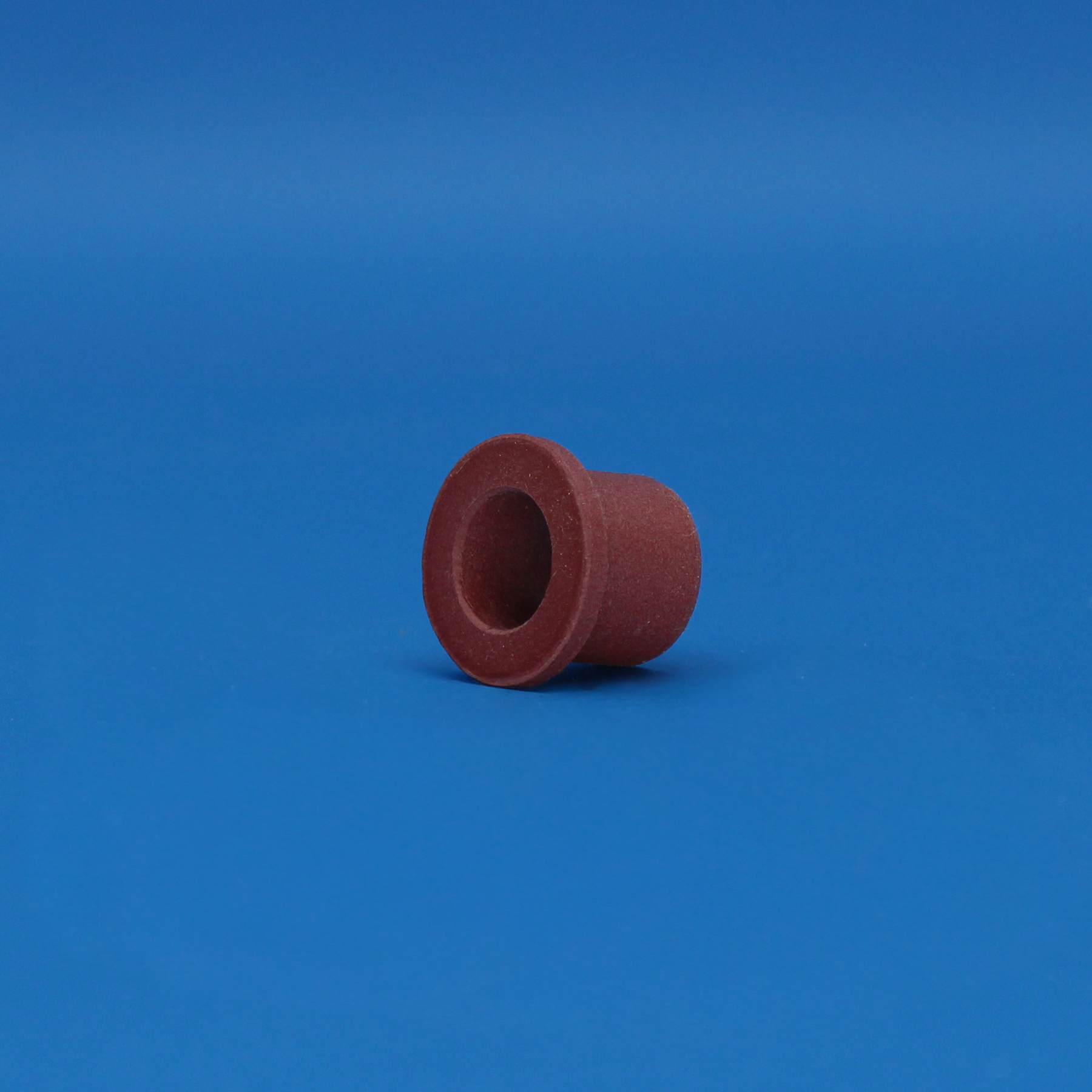

| FLRB30MM38MM30MM | Brg. Grade PTFE | 30mm | 38mm | 30mm | 46mm | RB | Maroon | Flange Bearing | |||
| FLRB19MM25MM30MM | Brg. Grade PTFE | 19mm | 25mm | 30mm | 31mm | RB | Maroon | Flange Bearing | |||
| FLRB15MM19MM12MM | Brg. Grade PTFE | 15mm | 19mm | 12mm | 23mm | RB | Maroon | Flange Bearing | |||
| FLRB12MM22MM25MM | Brg. Grade PTFE | 12mm | 22mm | 25mm | 25mm | RB | Maroon | Flange Bearing | |||
| FLRB10MM14MM15MM | Brg. Grade PTFE | 10mm | 14mm | 15mm | 18mm | RB | Maroon | Flange Bearing | |||
| FLRB0610012 | Brg. Grade PTFE | 3/8" | 5/8" | 3/4" | 0.875" | RB | Maroon | Flange Bearing | |||

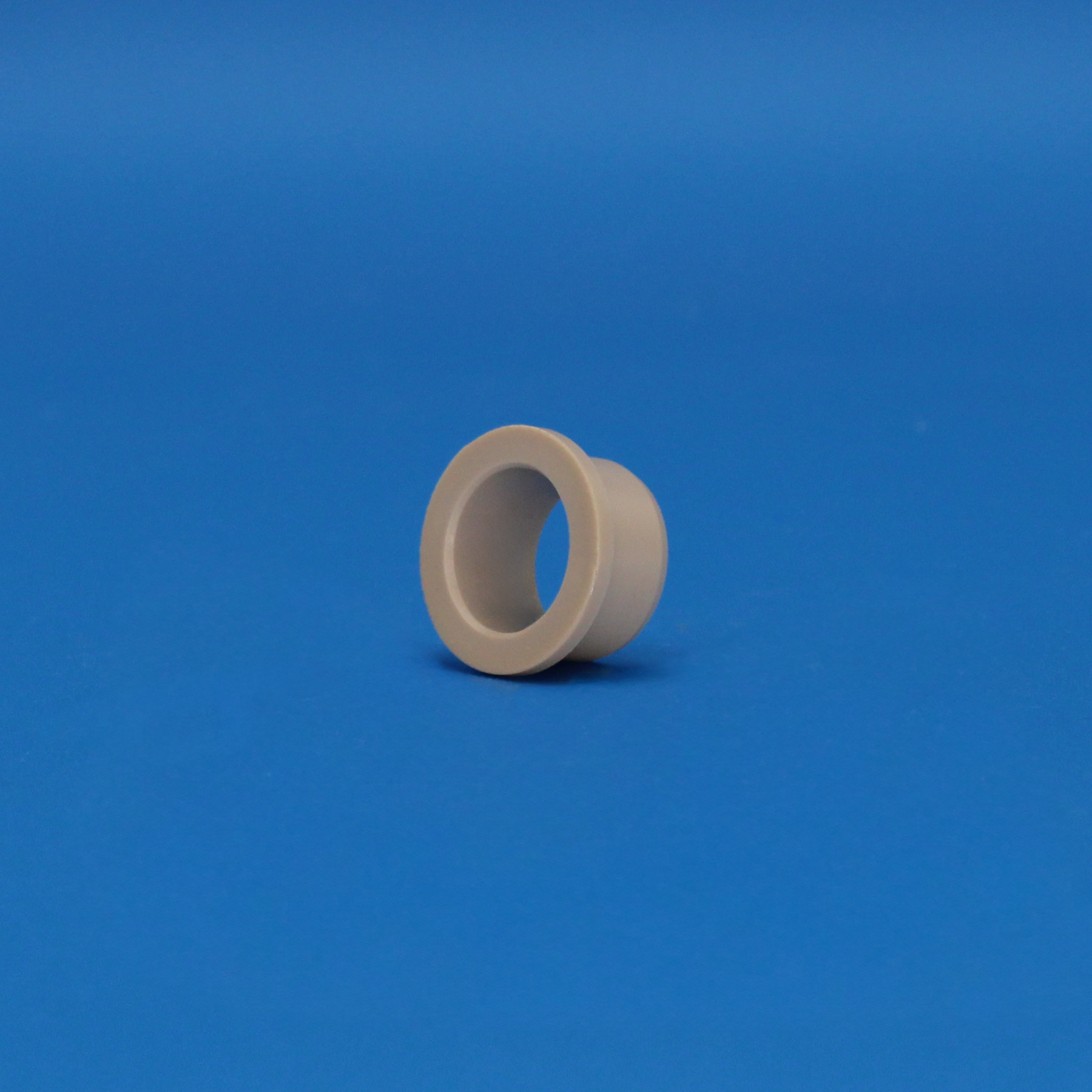

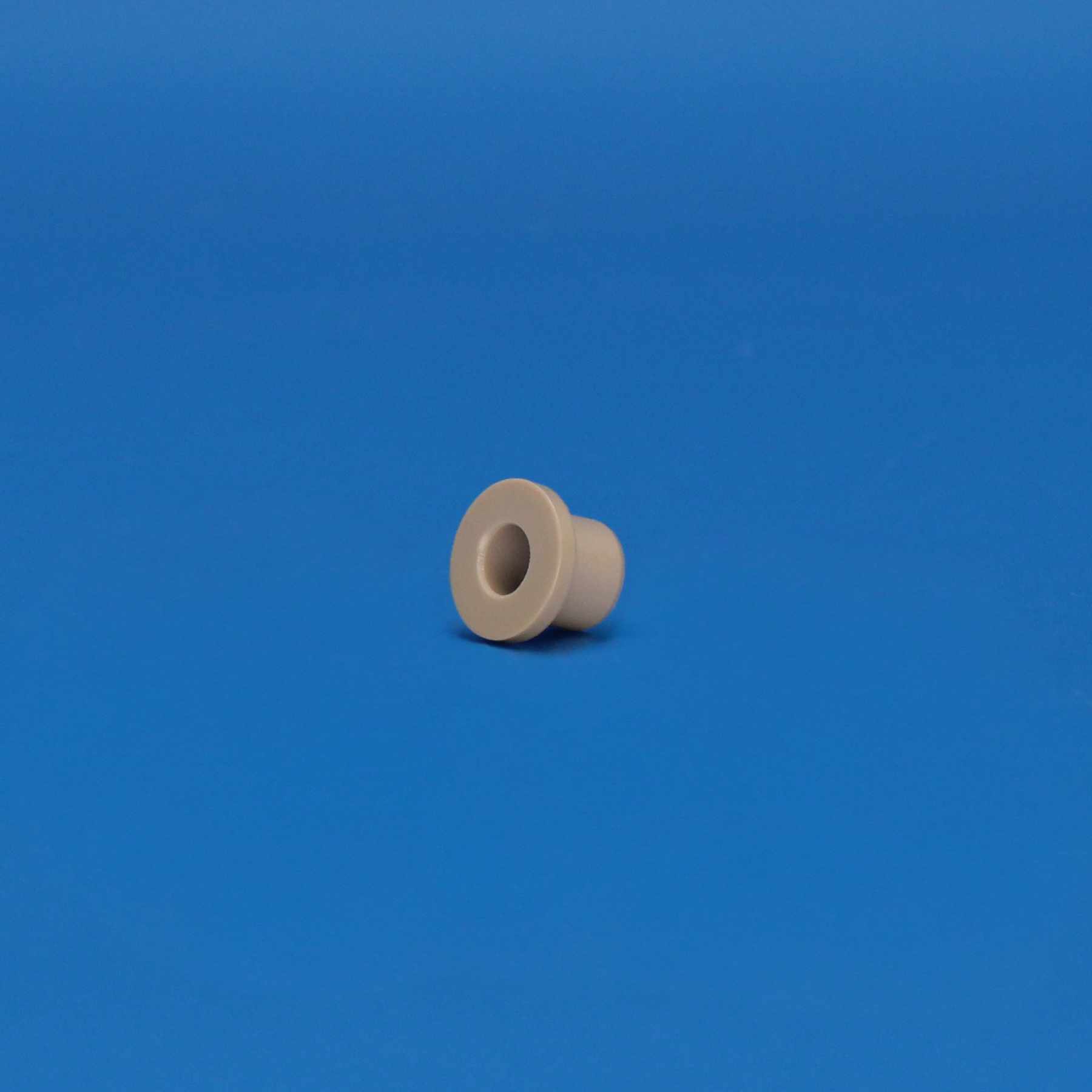

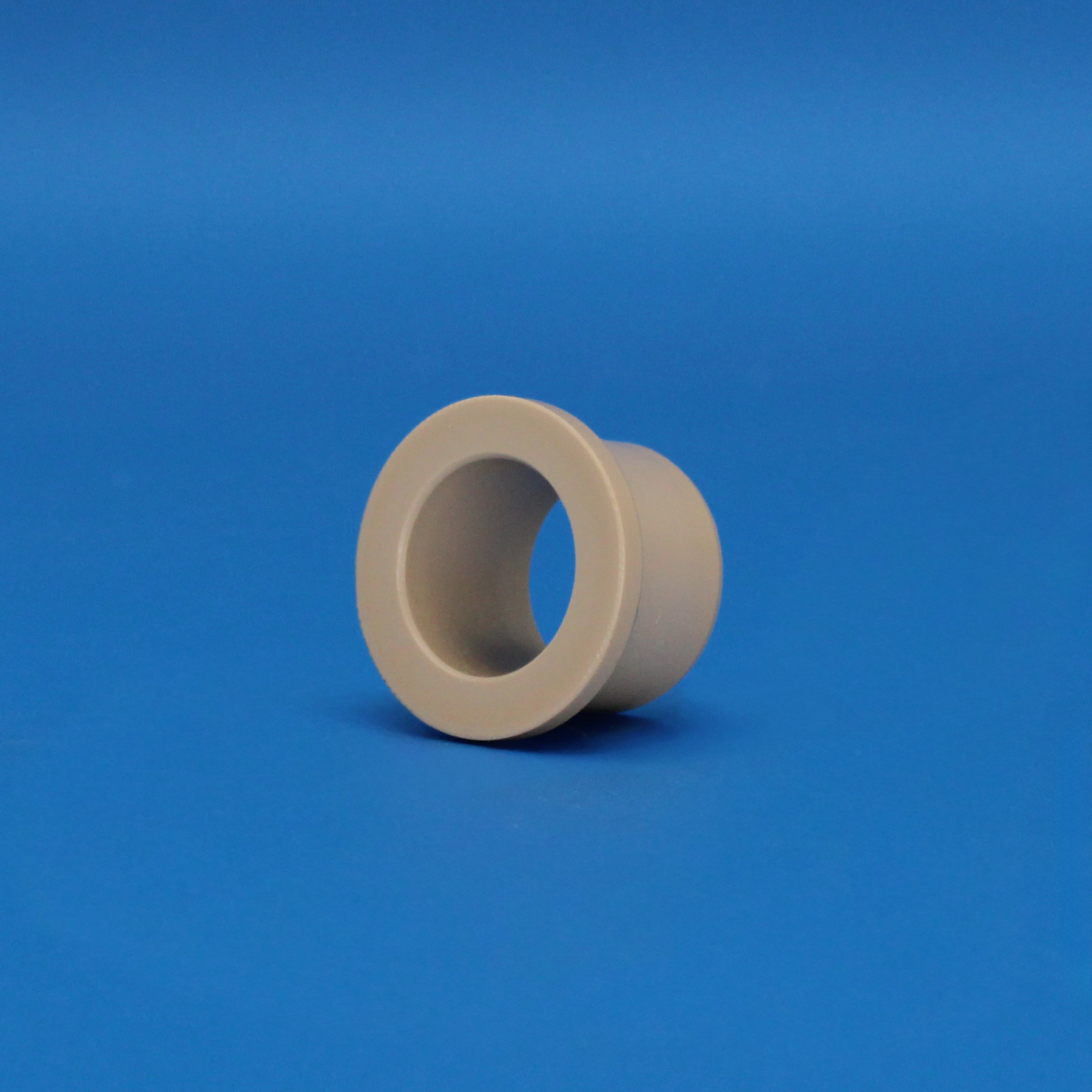

| FLPK8MM12MM12MM | Peek | 8mm | 12mm | 12mm | 16mm | PK | Beige | Flange Bearing | |||
| FLPK50MM60MM50MM | Peek | 50mm | 60mm | 50mm | 70mm | PK | Beige | Flange Bearing | |||
| FLPK50MM60MM32MM | Peek | 50mm | 60mm | 32mm | 70mm | PK | Beige | Flange Bearing | |||
| FLPK20MM26MM16MM | Peek | 20mm | 26mm | 16mm | 32mm | PK | Beige | Flange Bearing | |||
| FLPK20MM26MM12MM | Peek | 20mm | 26mm | 12mm | 32mm | PK | Beige | Flange Bearing | |||
| FLPK1216016 | Peek | 3/4" | 1" | 1" | 1-1/4" | PK | Beige | Flange Bearing | |||
| FLT8MM12MM8MM | PTFE | 8mm | 12mm | 8mm | 16mm | T | WHITE | Flange Bearing | |||
| FLT8MM12MM16MM | PTFE | 8mm | 12mm | 16mm | 16mm | T | WHITE | Flange Bearing | |||
| FLT8MM12MM12MM | PTFE | 8mm | 12mm | 12mm | 16mm | T | WHITE | Flange Bearing | |||
| FLT8MM11MM10MM | PTFE | 8mm | 11mm | 10mm | 14mm | T | WHITE | Flange Bearing | |||

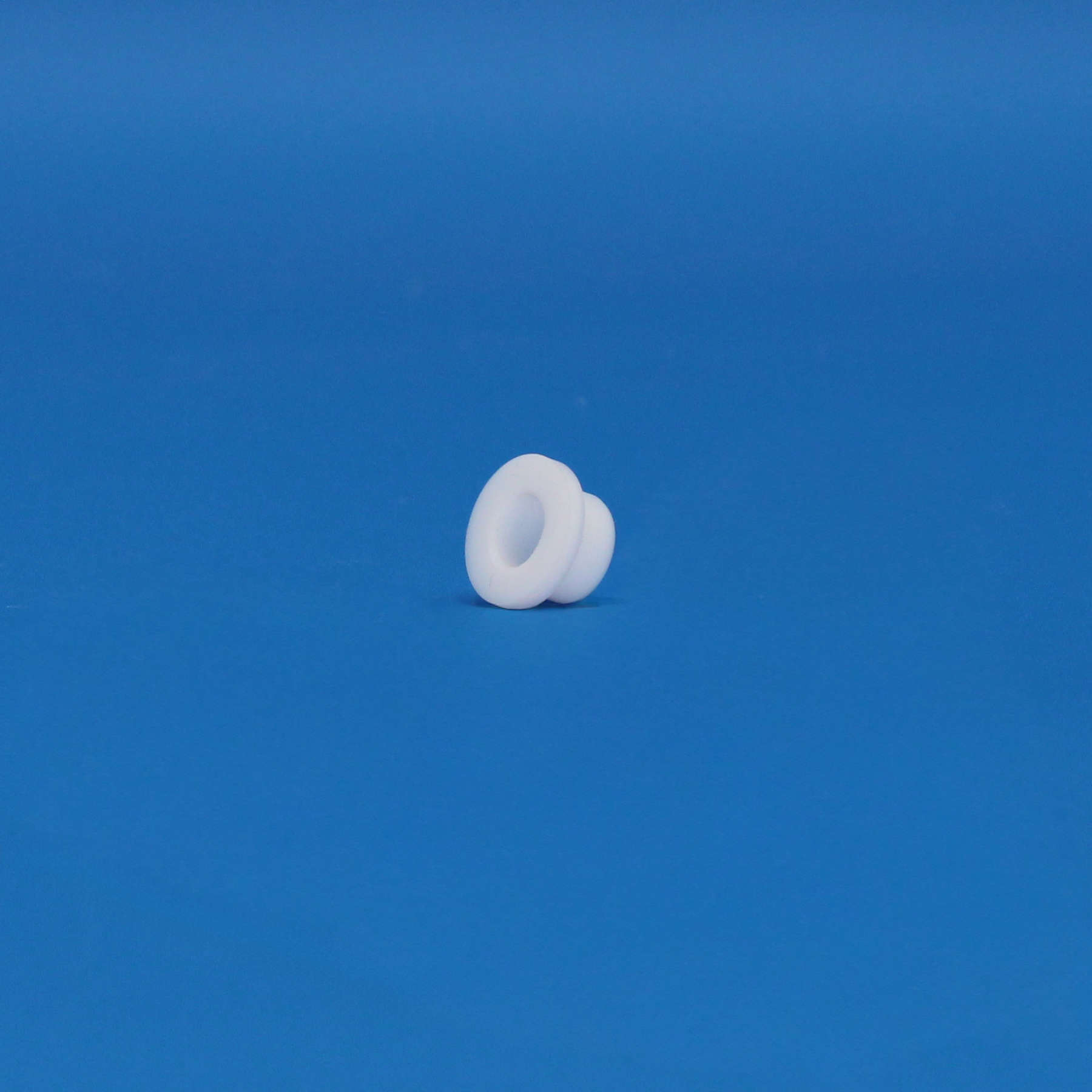

| FLT7MM11MM8MM | PTFE | 7mm | 11mm | 8mm | 15mm | T | WHITE | Flange Bearing | |||
| FLT6MM9MM10MM | PTFE | 6mm | 9mm | 10mm | 12mm | T | WHITE | Flange Bearing | |||
| FLT6MM10MM6MM | PTFE | 6mm | 10mm | 6mm | 12mm | T | WHITE | Flange Bearing | |||
| FLT6MM10MM16MM | PTFE | 6mm | 10mm | 16mm | 14mm | T | WHITE | Flange Bearing | |||
| FLT6MM10MM10MM | PTFE | 6mm | 10mm | 10mm | 14mm | T | WHITE | Flange Bearing | |||
| FLT5MM8MM5MM | PTFE | 5mm | 8mm | 5mm | 11mm | T | WHITE | Flange Bearing | |||
| FLT5MM8MM10MM | PTFE | 5mm | 8mm | 10mm | 11mm | T | WHITE | Flange Bearing | |||
| FLT3MM6MM4MM | PTFE | 3mm | 6mm | 4mm | 9mm | T | WHITE | Flange Bearing |
