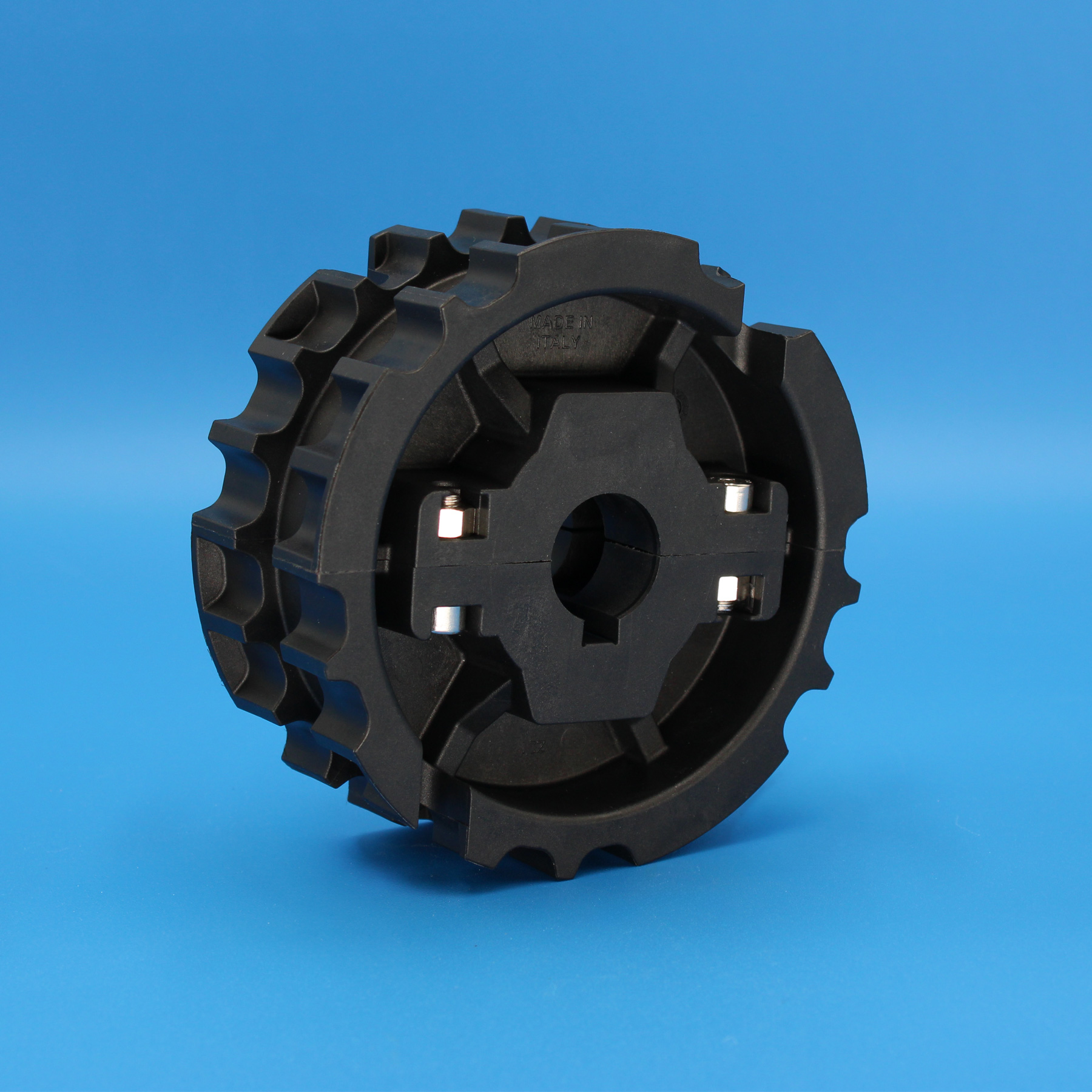

Table Top and Tab Chain Sprockets
| Part No. | Chain/Belt Type | # of Teeth | Bore | Keyway | Style/Type | Material | Hub Diameter | Pitch Diameter | LTB/Width | Material Code | Color | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PP523873591.50BORE | 815 & 820 & 831 | 25 | 1-1/2" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||
| PP523873591.4375BORE | 815 & 820 & 831 | 25 | 1-7/16" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||
| PP52387359 | 815 & 820 & 831 | 25 | 35mm | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||
| PP523873581.25BORE | 815 & 820 & 831 | 25 | 1-1/4" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||
| PP52387358 | 815 & 820 & 831 | 25 | 30mm | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||
| PP523873571.00BORE | 815 & 820 & 831 | 25 | 1" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||
| PP52387357 | 815 & 820 & 831 | 25 | 25mm | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||
| PP535886821.50BORE | 815 & 820 & 831 | 25 | 1-1/2" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||
| PP535886821.4375BORE | 815 & 820 & 831 | 25 | 1-7/16" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||
| PP53588682 | 815 & 820 & 831 | 25 | 35mm | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||
| PP535886811.25BORE | 815 & 820 & 831 | 25 | 1-1/4" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||
| PP53588681 | 815 & 820 & 831 | 25 | 30mm | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||
| PP535886801.00BORE | 815 & 820 & 831 | 25 | 1" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||

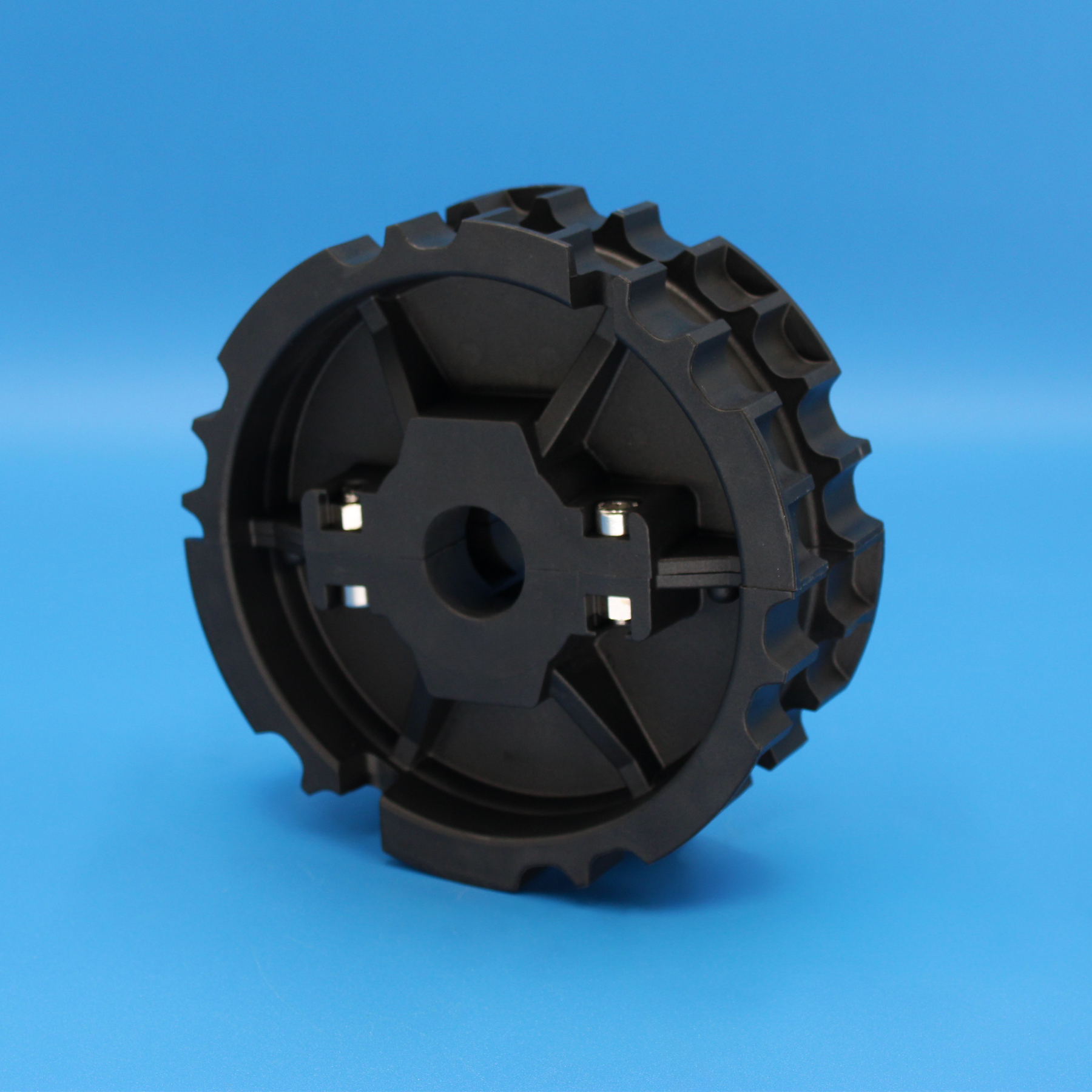

| PP53588680 | 815 & 820 & 831 | 25 | 25mm | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 6.02" | 6.03" | 2.05" | N/A | Black | ||
| PP541891131.5BOREK | 815 & 820 & 831 | 23 | 1-1/2" | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||
| PP541891131.4375BOREK | 815 & 820 & 831 | 23 | 1-7/16" | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||
| PP54189113 | 815 & 820 & 831 | 23 | 35mm | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||
| PP541891121.25BOREK | 815 & 820 & 831 | 23 | 1-1/4" | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||
| PP54189112 | 815 & 820 & 831 | 23 | 30mm | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||
| PP541891111.00BOREK | 815 & 820 & 831 | 23 | 1" | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||
| PP54189111 | 815 & 820 & 831 | 23 | 25mm | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||
| PP540891091.50BORE | 815 & 820 & 831 | 23 | 1-1/2" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||
| PP540891091.4375 | 815 & 820 & 831 | 23 | 1-7/16" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||
| PP54089109 | 815 & 820 & 831 | 23 | 35mm | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||
| PP540891071.25BORE | 815 & 820 & 831 | 23 | 1-1/4" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||
| PP54089107 | 815 & 820 & 831 | 23 | 30mm | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||
| PP540891051.00BORE | 815 & 820 & 831 | 23 | 1" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||

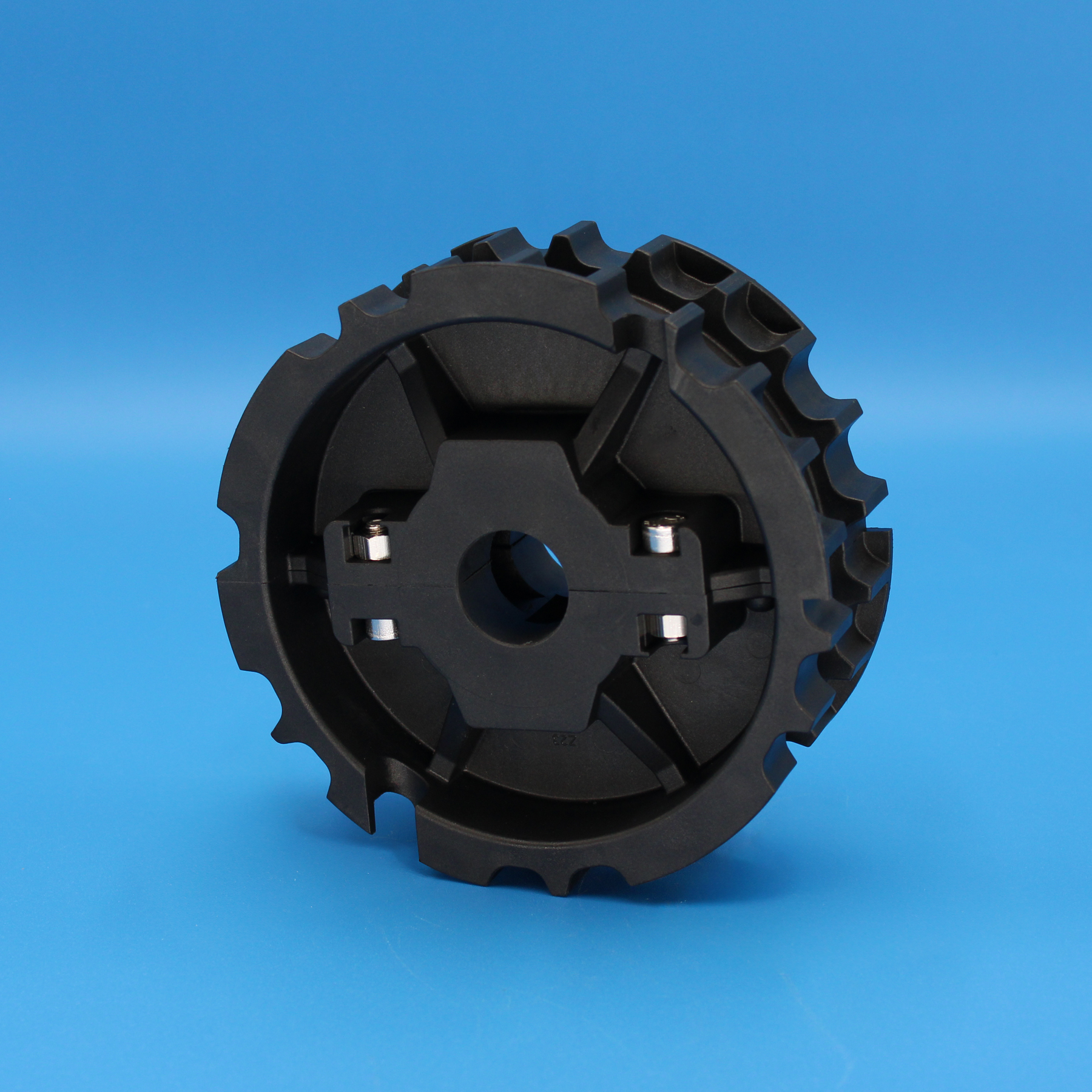

| PP54089105 | 815 & 820 & 831 | 23 | 25mm | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.51" | 5.56" | 2.05" | N/A | Black | ||
| PP543891371.50BOREK | 815 & 820 & 831 | 21 | 1-1/2" | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.09" | 5.04" | 2.05" | N/A | Black | ||
| PP543891371.4375BOREK | 815 & 820 & 831 | 21 | 1-7/16" | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.09" | 5.04" | 2.05" | N/A | Black | ||
| PP54389137 | 815 & 820 & 831 | 21 | 35mm | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.09" | 5.04" | 2.05" | N/A | Black | ||
| PP543891361.25BOREK | 815 & 820 & 831 | 21 | 1-1/4" | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.09" | 5.04" | 2.05" | N/A | Black | ||
| PP54389136 | 815 & 820 & 831 | 21 | 30mm | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.09" | 5.04" | 2.05" | N/A | Black | ||
| PP543891351.00BOREK | 815 & 820 & 831 | 21 | 1" | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.09" | 5.04" | 2.05" | N/A | Black | ||
| PP54389135 | 815 & 820 & 831 | 21 | 25mm | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.09" | 5.04" | 2.05" | N/A | Black | ||
| PP542891331.50BORE | 815 & 820 & 831 | 21 | 1-1/2" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.09" | 5.04" | 2.05" | N/A | Black | ||
| PP542891331.4375BORE | 815 & 820 & 831 | 21 | 1-7/16" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.09" | 5.04" | 2.05" | N/A | Black | ||
| PP54289133 | 815 & 820 & 831 | 21 | 35mm | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.09" | 5.04" | 2.05" | N/A | Black | ||
| PP542891311.25BORE | 815 & 820 & 831 | 21 | 1-1/4" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polyamide | 5.09" | 5.04" | 2.05" | N/A | Black | ||
| PP54289131 | 815 & 820 & 831 | 21 | 30mm | No | Molded Split Table Top and Tab Chain Sprockets | Black Polyamide | 5.09" | 5.04" | 2.05" | N/A | Black | ||
| PP542891291.00BORE | 815 & 820 & 831 | 21 | 1" | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.09" | 5.04" | 2.05" | N/A | Black | ||

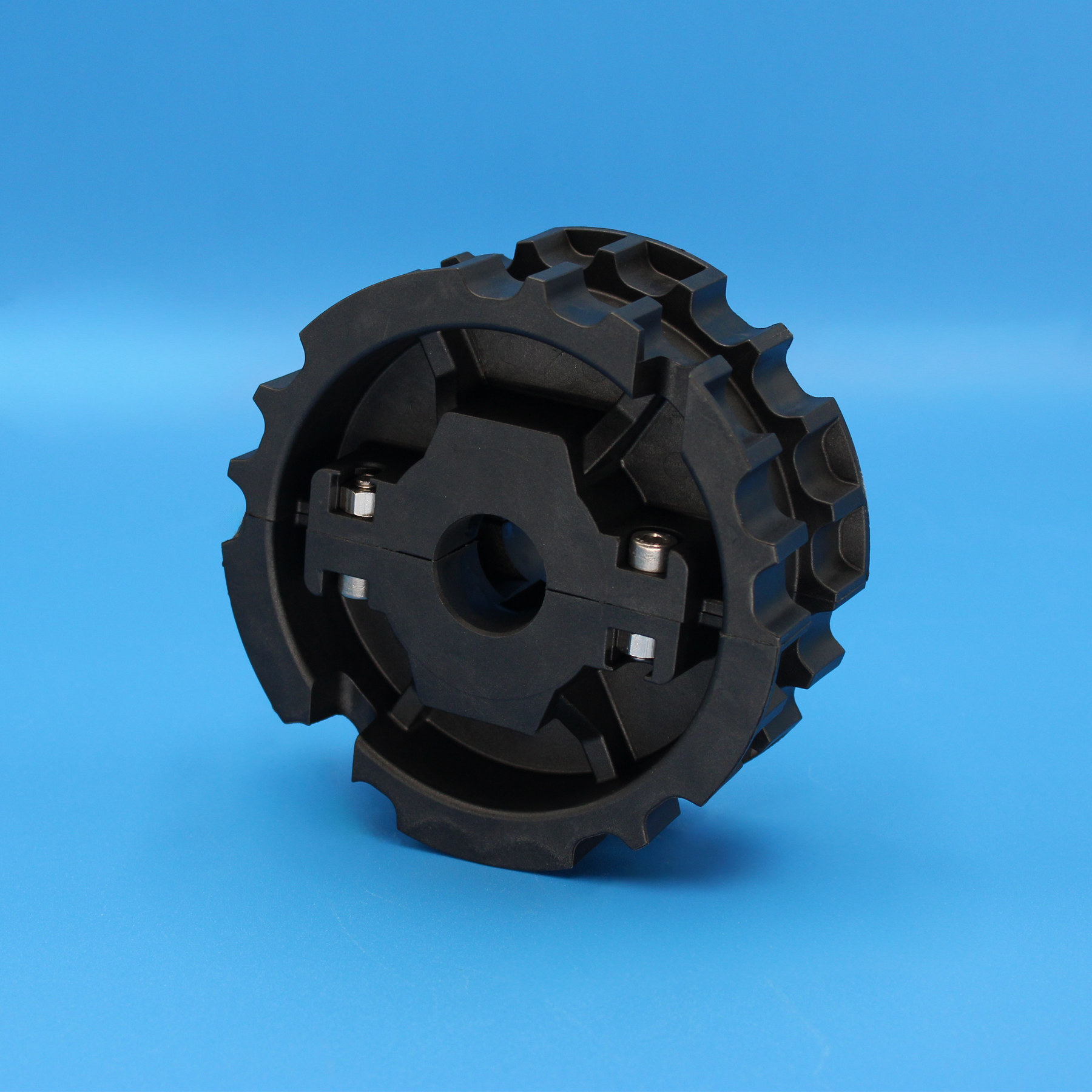

| PP54289129 | 815 & 820 & 831 | 21 | 25mm | No | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.09" | 5.04" | 2.05" | N/A | Black | ||
| PP47285971 | 882 & 882 Tab | 12 | 35mm | No | Molded Split Table Top and Tab Chain Sprockets | Black Polyamide | 5.86" | 5.79" | 2.30" | N/A | Black | ||
| PP473859751.50BOREK | 882 & 882 Tab | 12 | 1-1/2" | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.86" | 5.79" | 2.30" | N/A | Black | ||
| PP473859751.4375BOREK | 882 & 882 Tab | 12 | 1-7/16" | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.86" | 5.79" | 2.30" | N/A | Black | ||
| PP47385975 | 882 & 882 Tab | 12 | 35mm | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.86" | 5.79" | 2.30" | N/A | Black | ||
| PP473859741.25BOREK | 882 & 882 Tab | 12 | 1-1/4" | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.86" | 5.79" | 2.30" | N/A | Black | ||
| PP47385974 | 882 & 882 Tab | 12 | 30mm | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.86" | 5.79" | 2.30" | N/A | Black | ||
| PP473859731.00BOREK | 882 & 882 Tab | 12 | 1" | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.86" | 5.79" | 2.30" | N/A | Black | ||
| PP47385973 | 882 & 882 Tab | 12 | 25mm | Yes | Molded Split Table Top and Tab Chain Sprockets | Black Polymide | 5.86" | 5.79" | 2.30" | N/A | Black |
