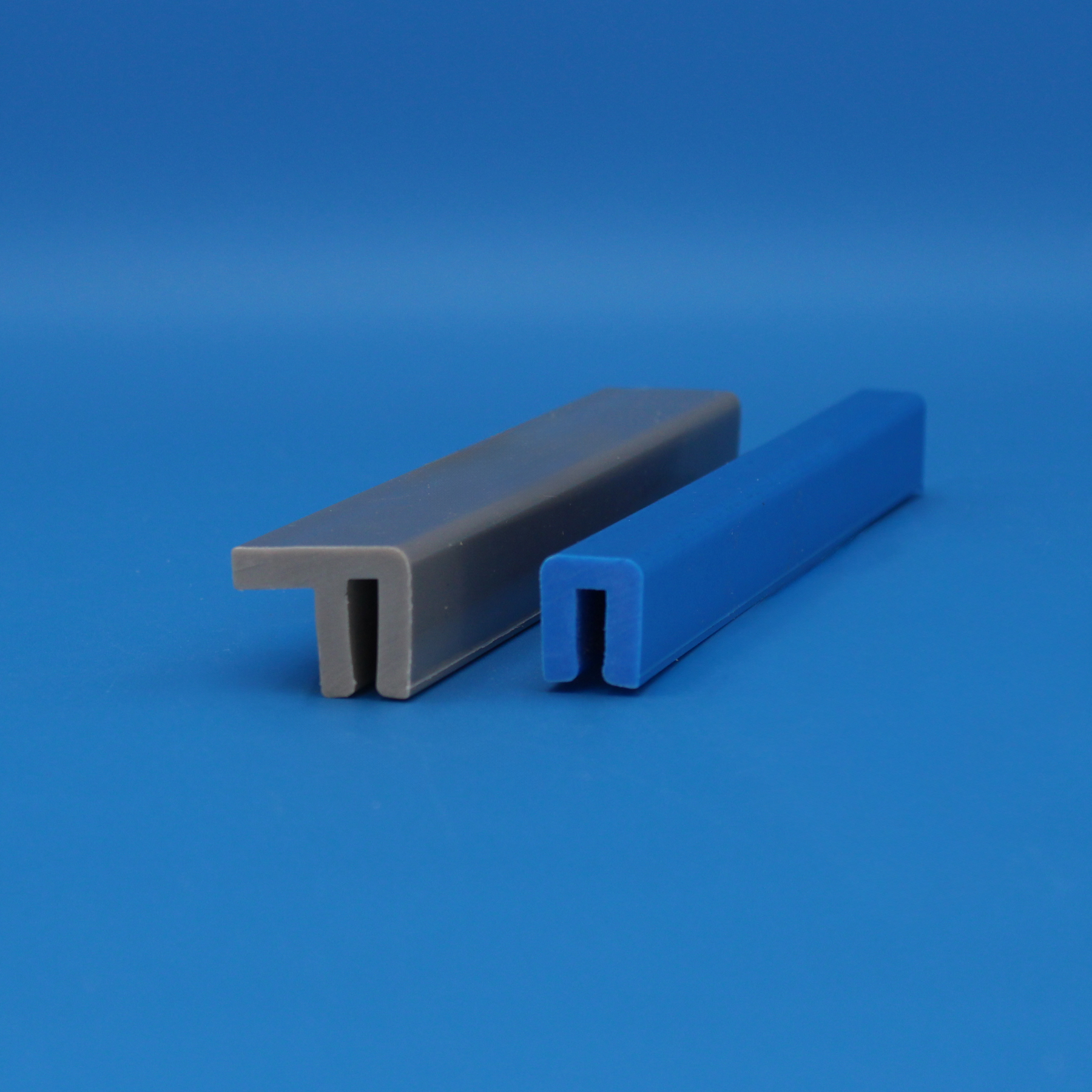

Modular Belt Guides
| Part No. | Material | Length | Type/Rail Size | Height | Material Code | Color | Width | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
| CTAW1210L240 | Blue Lube Filled UHMW | 20FT | 3/16" | .75" | AW | BLUE | .62" | ||
| CGAW032525L120 | Blue Lube Filled UHMW | 10 Ft | 3/16" | 1.6" | AW | BLUE | 1.56" | ||
| CGP032525L120 | PLUS | 10 Ft | 3/16" | 1.6" | P | GREY | 1.56" | ||

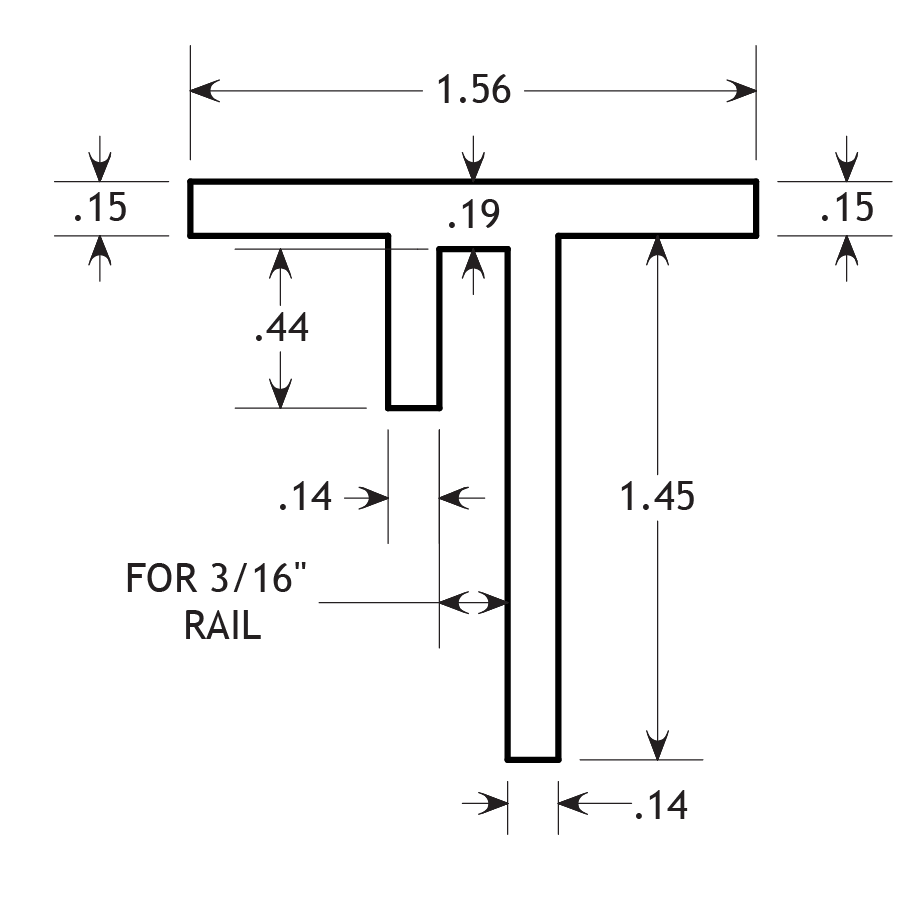

| CGU032525L120 | UHMW | 10 Ft | 3/16" | 1.6" | U | WHITE | 1.56" | ||
| CGAW022525L120 | Blue Lube Filled UHMW | 10 Ft | 1/8" | 1.6" | AW | BLUE | 1.56" | ||
| CGP022525L120 | PLUS | 10 Ft | 1/8" | 1.6" | P | GREY | 1.56" | ||

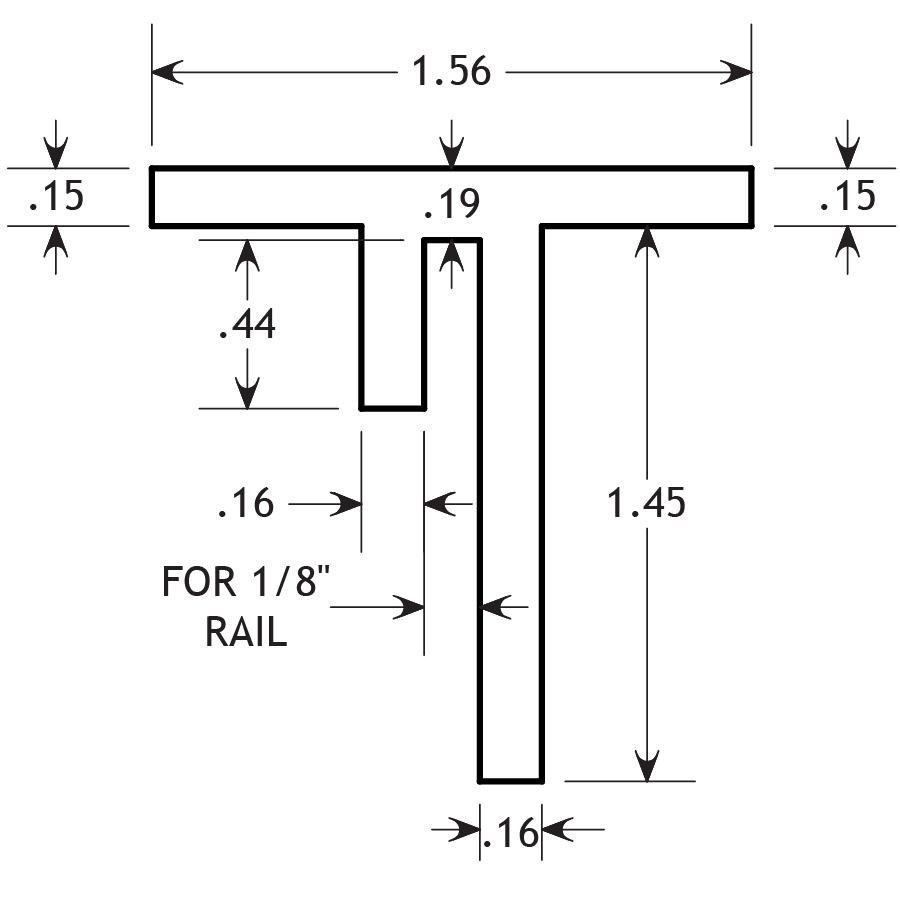

| CGU022525L120 | UHMW | 10 Ft | 1/8" | 1.6" | U | WHITE | 1.56" | ||
| CGAW031625L120 | Blue Lube Filled UHMW | 10 Ft | 3/16" | 1.6" | AW | BLUE | 1" | ||
| CGP031625L120 | PLUS | 10 Ft | 3/16" | 1.6" | P | GREY | 1" | ||

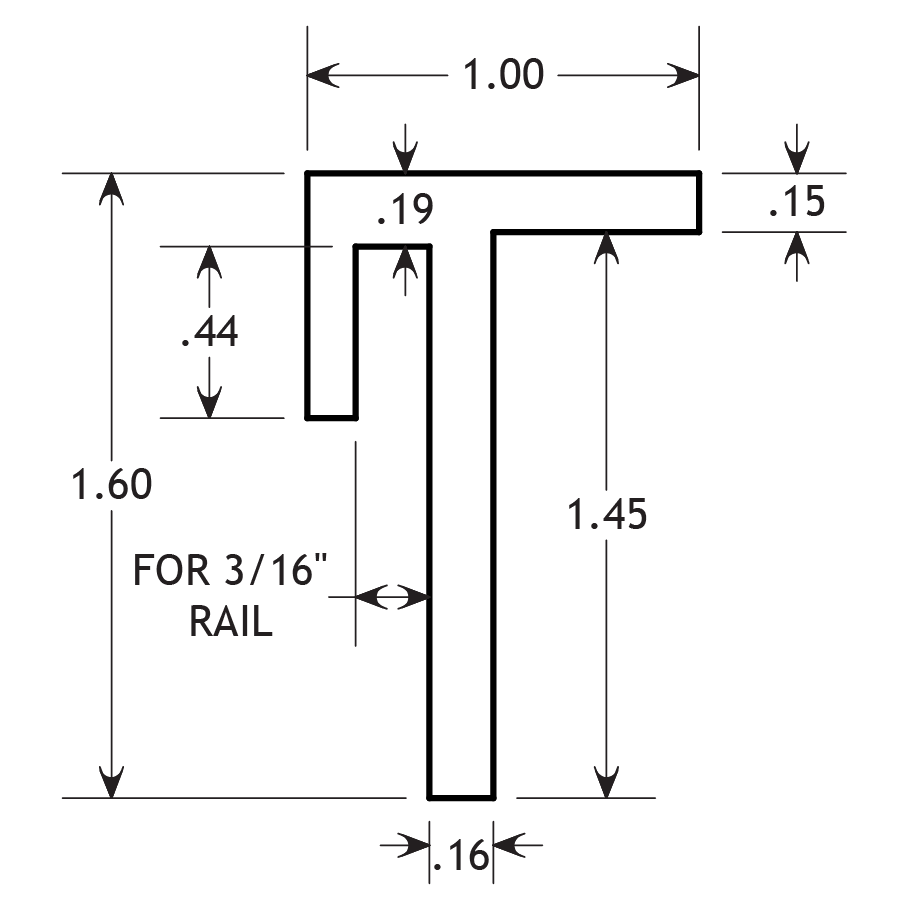

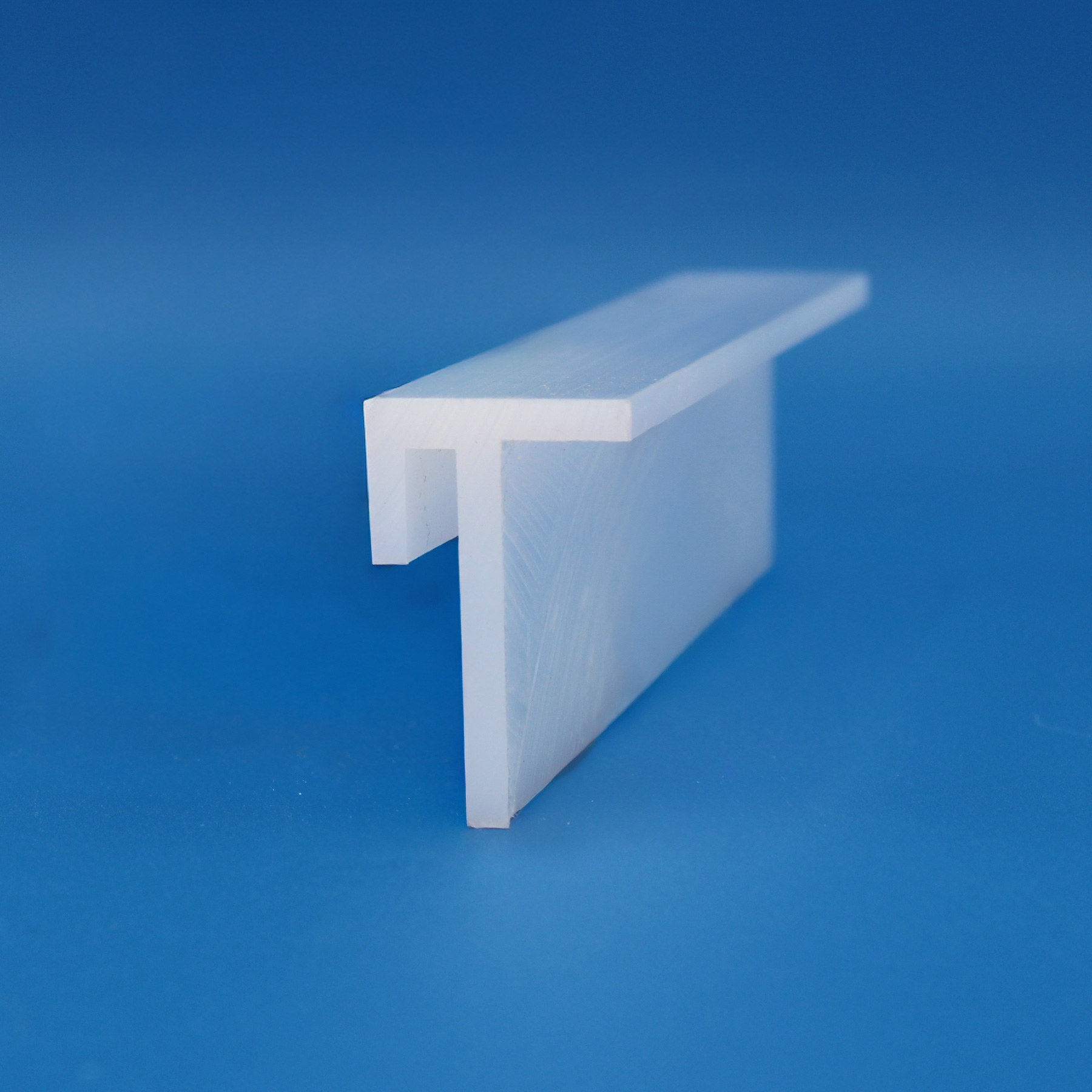

| CGU031625L120 | UHMW | 10 Ft | 3/16" | 1.6" | U | WHITE | 1" | ||
| CGAW021625L120 | Blue Lube Filled UHMW | 10 Ft | 1/8" | 1.6" | AW | BLUE | 1" | ||

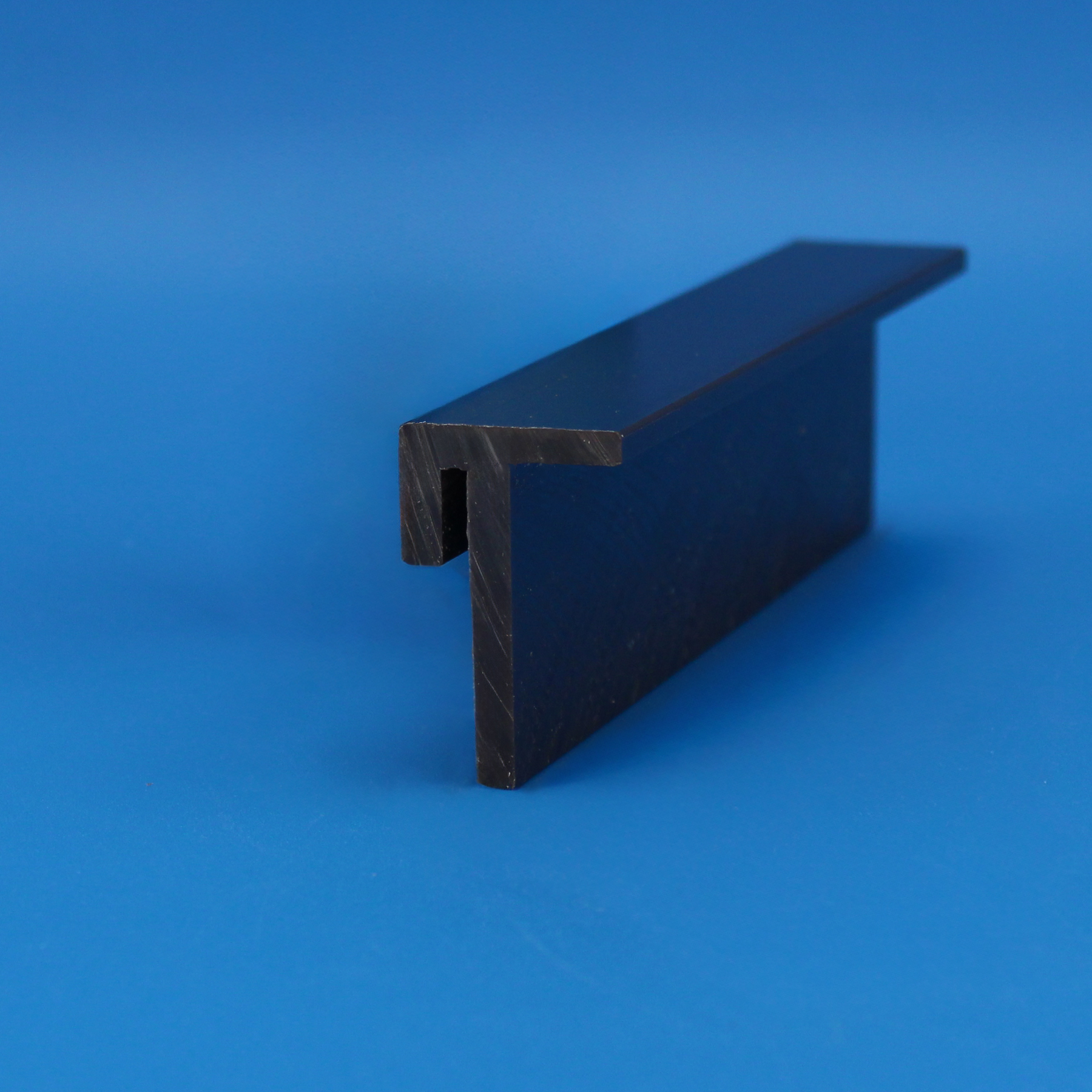

| CGP021625L120 | PLUS | 10 Ft | 1/8" | 1.6" | P | GREY | 1" | ||

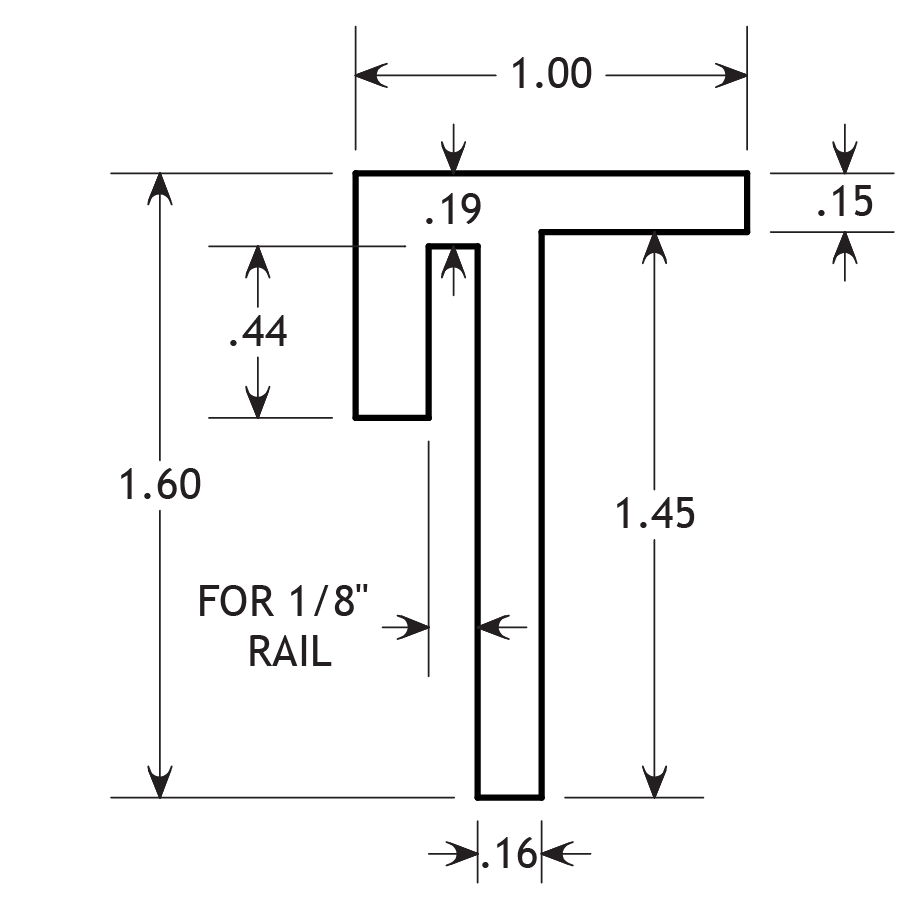

| CGU021625L120 | UHMW | 10 Ft | 1/8" | 1.6" | U | WHITE | 1" | ||

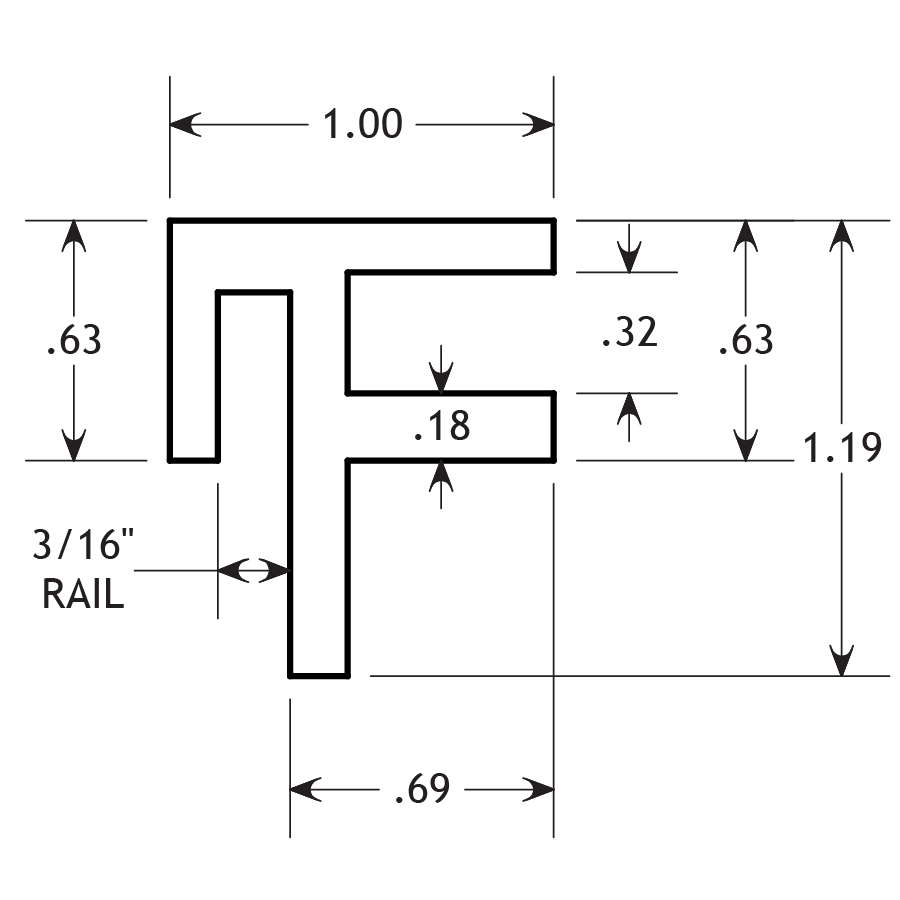

| CGAW031619L120 | Blue Lube Filled UHMW | 10 Ft | 3/16" | 1.19" | AW | BLUE | 1" | ||
| CGP031619L120 | PLUS | 10 Ft | 3/16" | 1.19" | P | GREY | 1" | ||
| CGU031619L120 | UHMW | 10 Ft | 3/16" | 1.19" | U | WHITE | 1" | ||

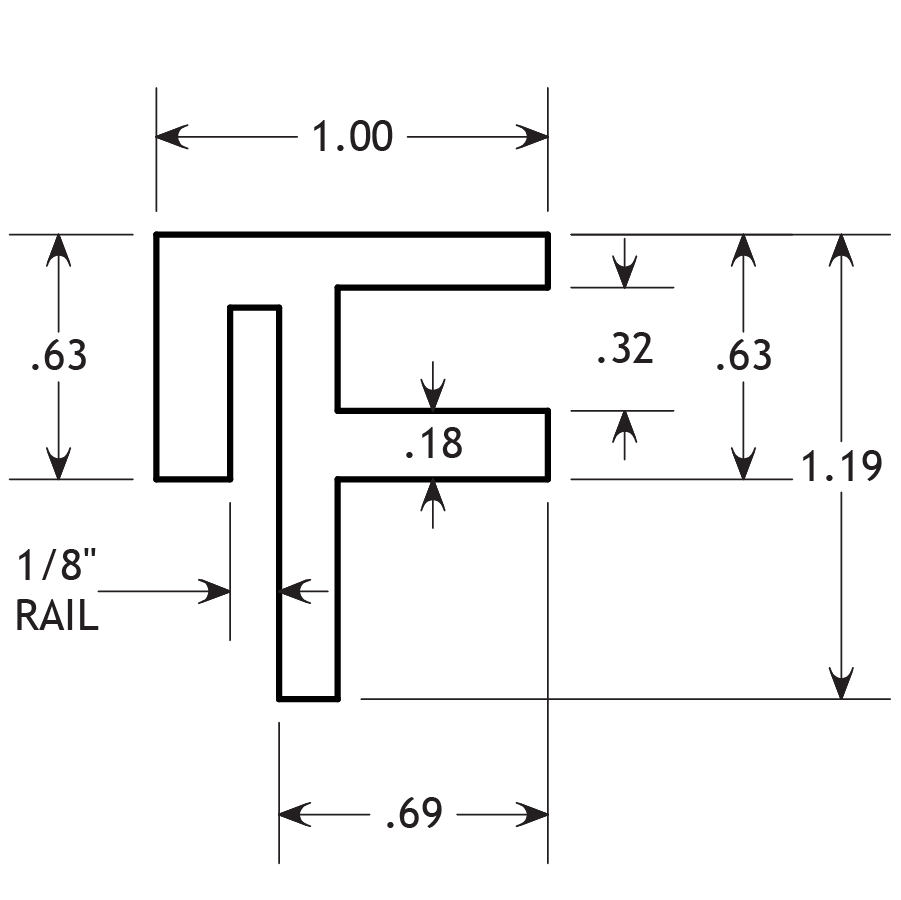

| CGAW021619L120 | Blue Lube Filled UHMW | 10 Ft | 1/8" | 1.19" | AW | BLUE | 1" | ||
| CGP021619L120 | PLUS | 10 Ft | 1/8" | 1.19" | P | GREY | 1" | ||
| CGU021619L120 | UHMW | 10 Ft | 1/8" | 1.19" | U | WHITE | 1" | ||

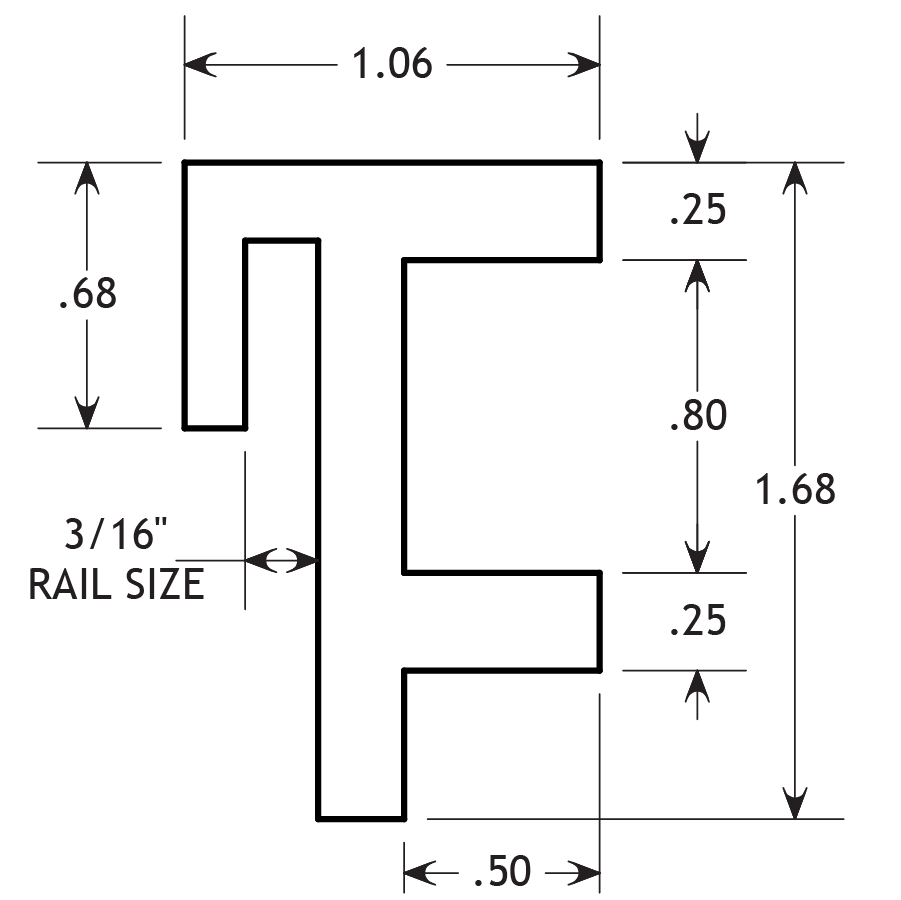

| CGAW031727L120 | Blue Lube Filled UHMW | 10 Ft | 3/16" | 1.68" | AW | BLUE | 1.06" | ||
| CGP031727L120 | PLUS | 10 Ft | 3/16" | 1.68" | P | GREY | 1.06" | ||
| CGU031727L120 | UHMW | 10 Ft | 3/16" | 1.68" | U | WHITE | 1.06" | ||
| CGAW021727L120 | Blue Lube Filled UHMW | 10 Ft | 1/8" | 1.68" | AW | BLUE | 1.06" | ||
| CGP021727L120 | PLUS | 10 Ft | 1/8" | 1.68" | P | GREY | 1.06" | ||

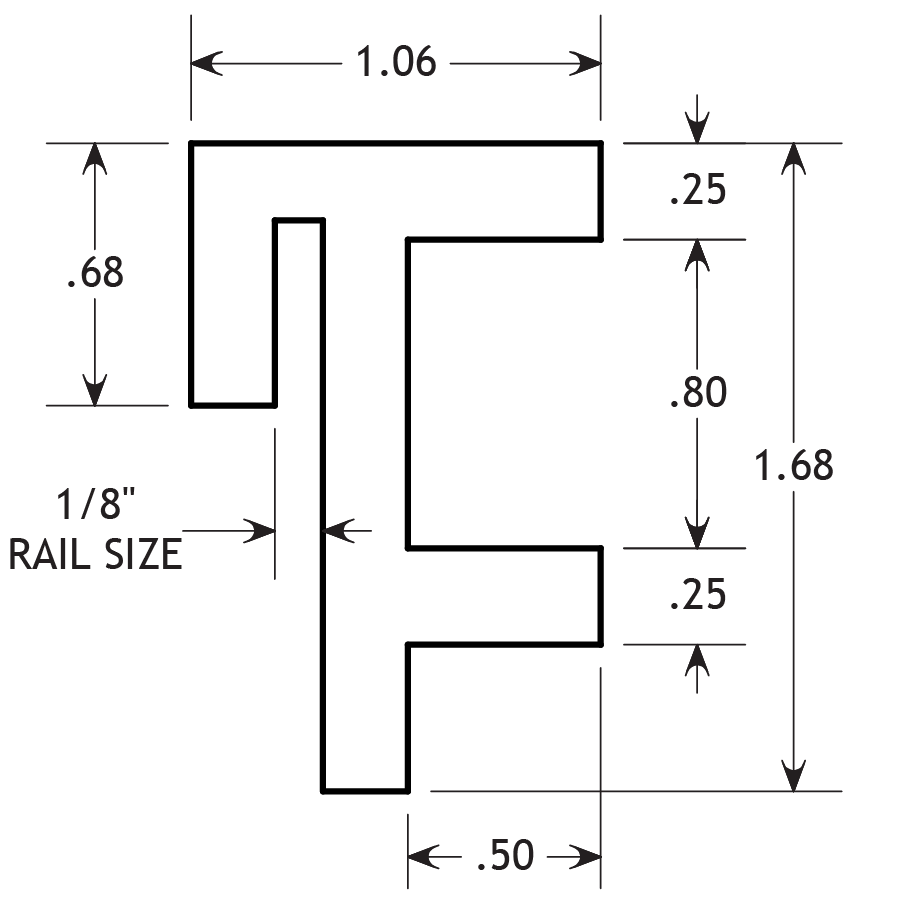

| CGU021727L120 | UHMW | 10 Ft | 1/8" | 1.68" | U | WHITE | 1.06" | ||

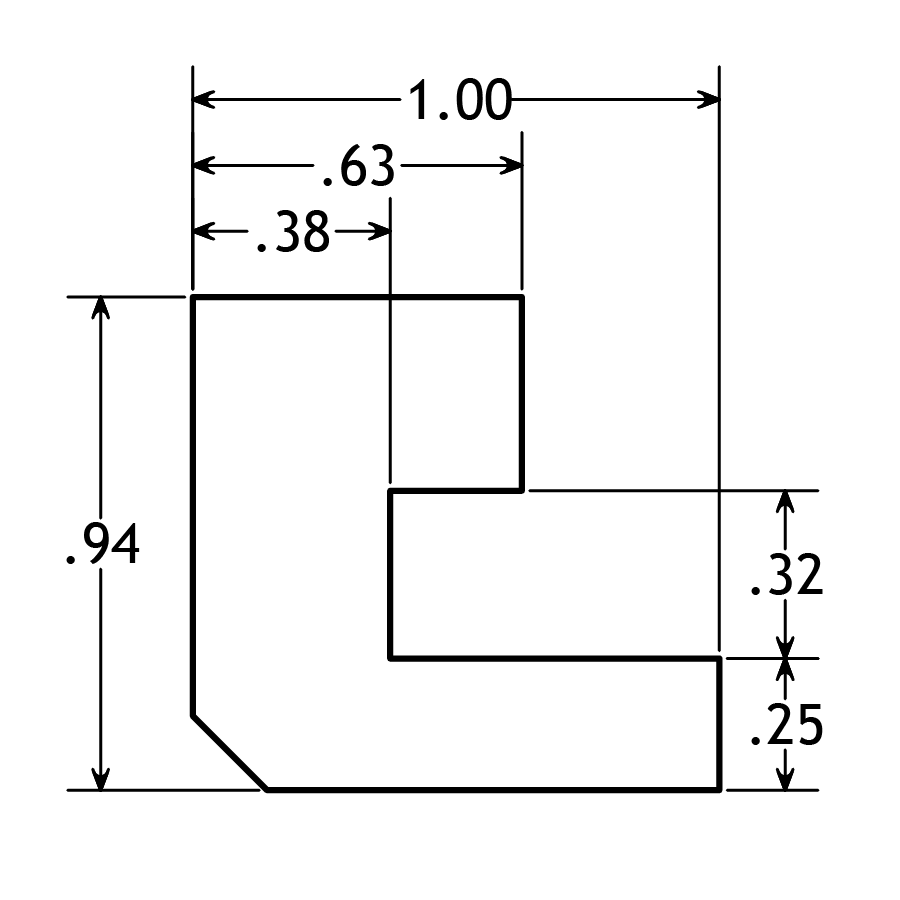

| CTU1516L120 | UHMW | 10 Ft | Tab Chain | .94" | U | WHITE | 1" | ||
| CGU3000TABL120 | UHMW | 10 Ft | Knuckle Chain | .86" | U | WHITE | 4.29" | ||

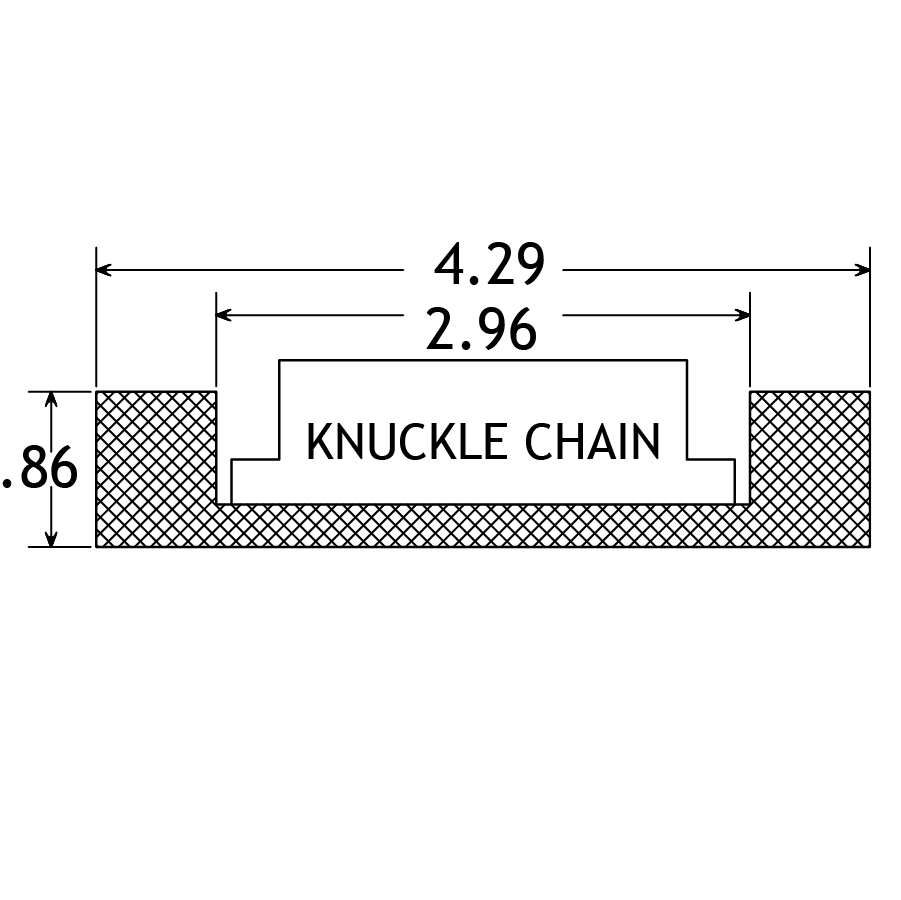

| CGU3000L120 | UHMW | 10 Ft | Knuckle Chain | .86" | U | WHITE | 4.29" | ||

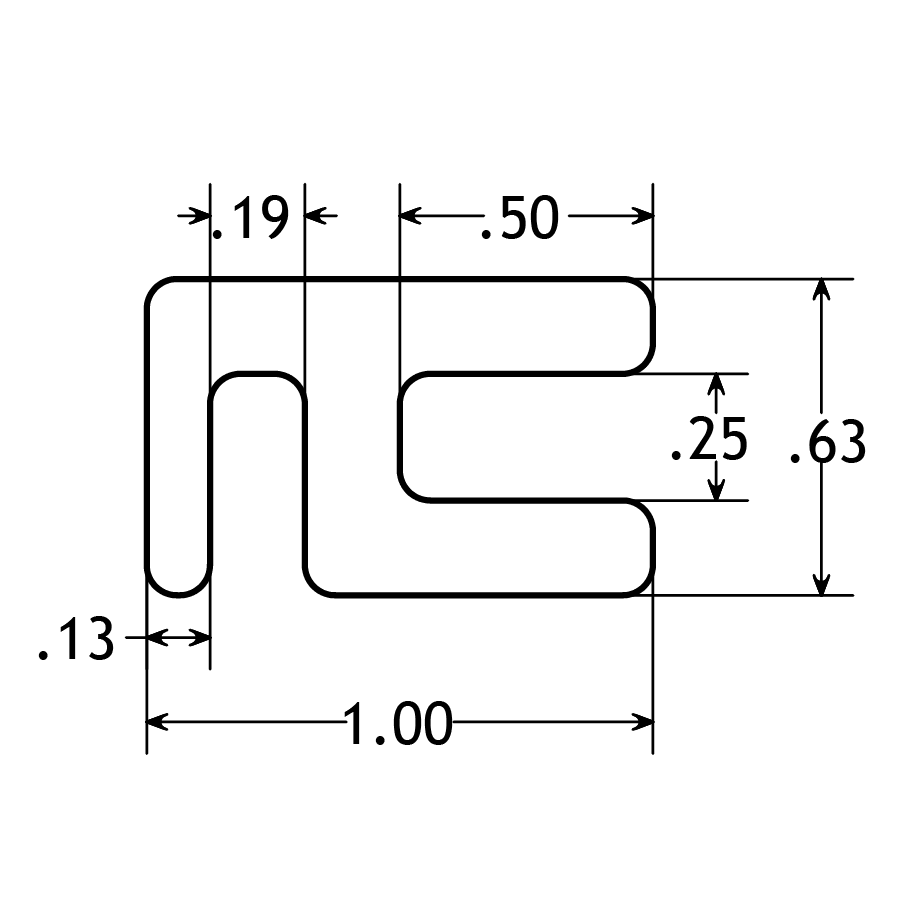

| CTU1016L120 | UHMW | 10 Ft | Tab Chain | .63" | U | WHITE | 1" | ||

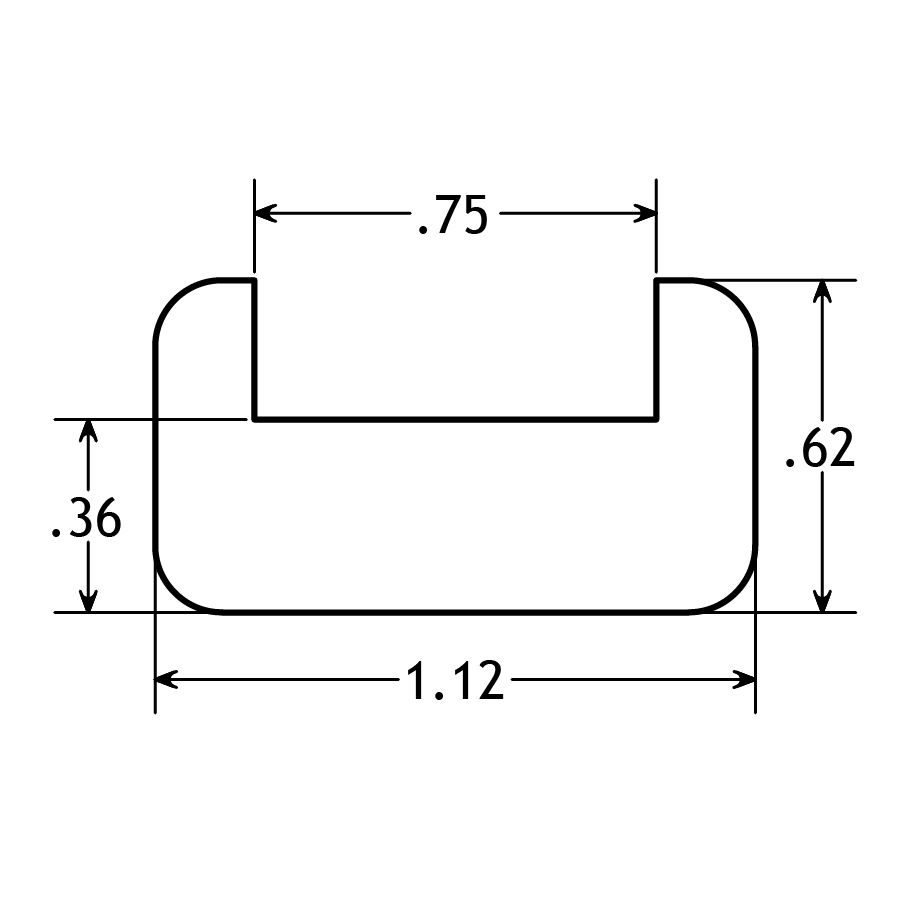

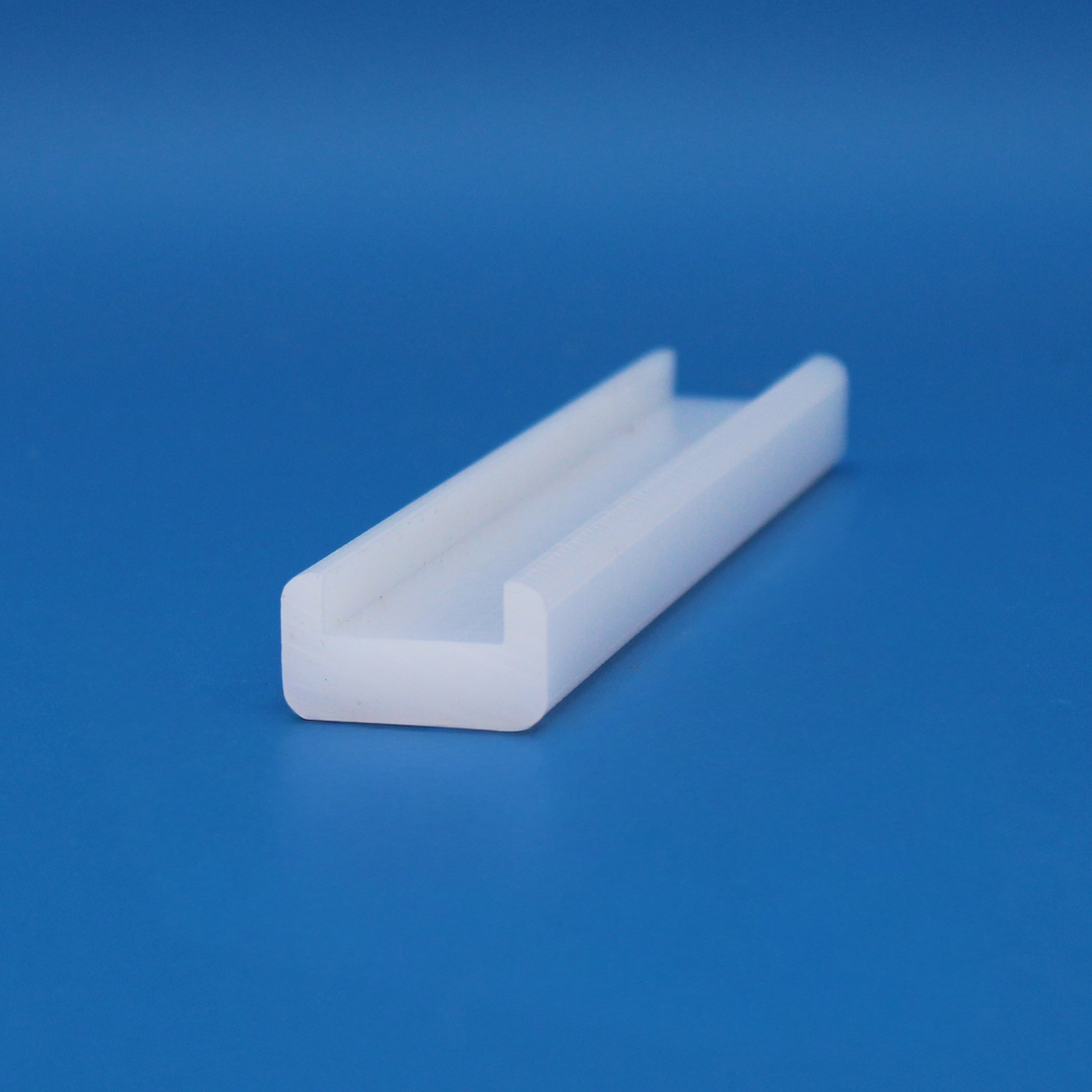

| P1U0412L120 | UHMW | 10 Ft | P1U | .62" | U | WHITE | 1.12" | ||

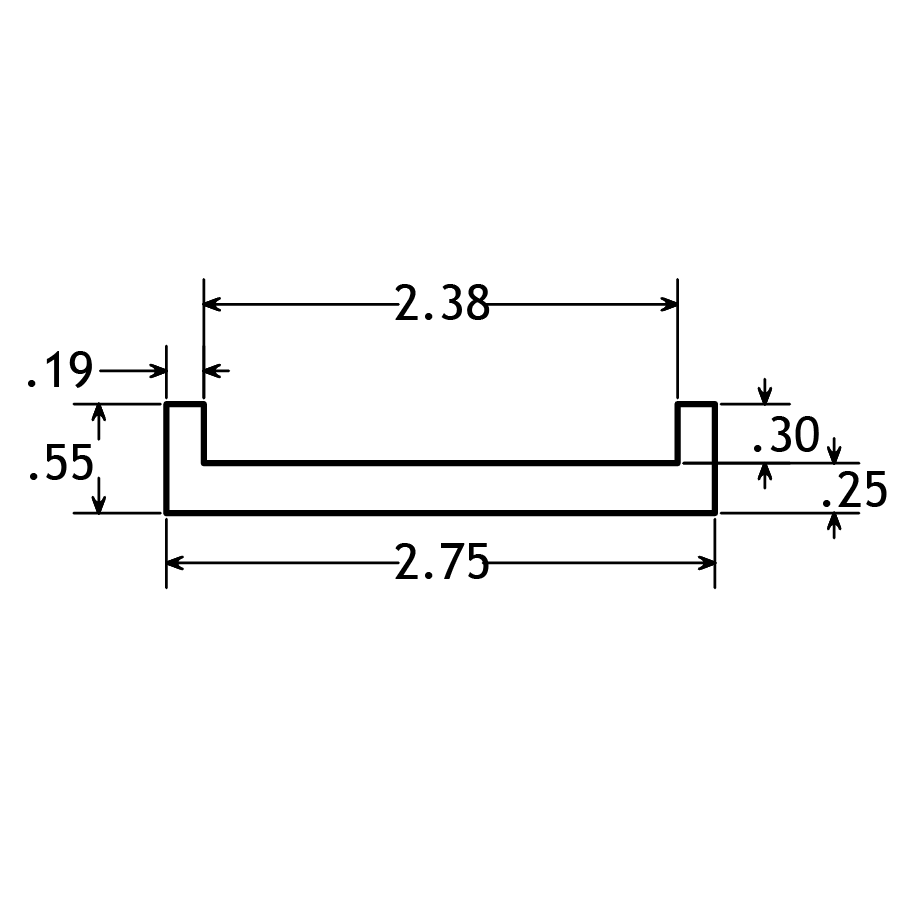

| P1U0538L120G | UHMW | 10 Ft | P1U | .55" | U | Green | 2.75" | ||
| P1U0538L120 | UHMW | 10 Ft | P1U | .55" | U | WHITE | 2.75" | ||

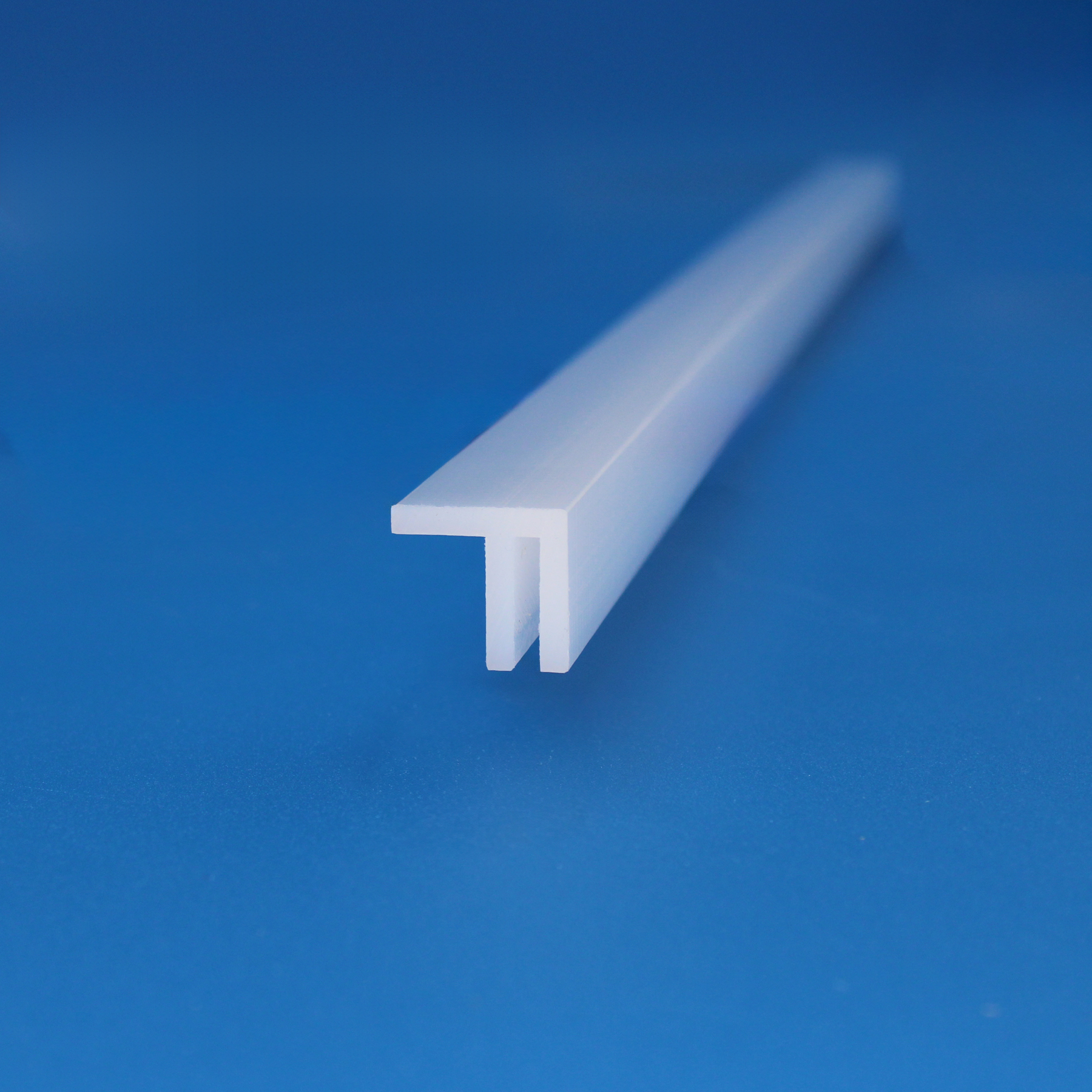

| CTU121302L120 | UHMW | 10 Ft | 1/8" | .75" | U | WHITE | .8125" | ||

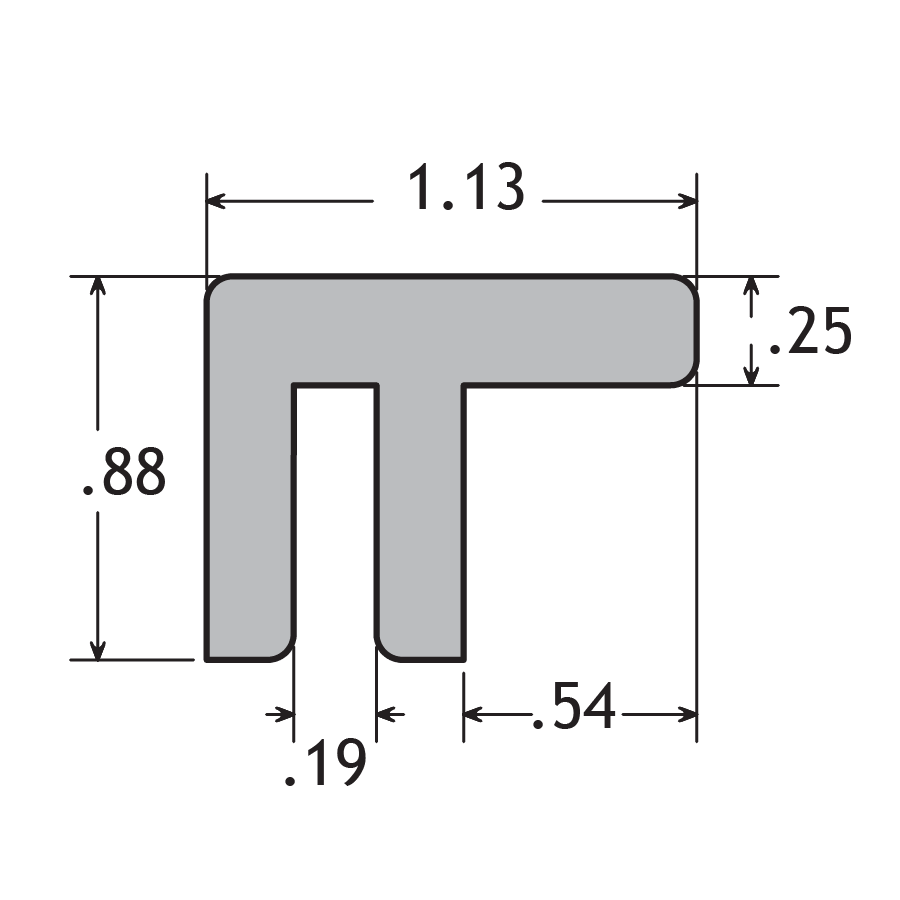

| CTP1518LEGL240 | PLUS | 20 Ft | 3/16" | .88" | U | GREY | 1.13" | ||
| CTP1518LEGL120 | PLUS | 10 Ft | 3/16" | .88" | U | GREY | 1.13" | ||

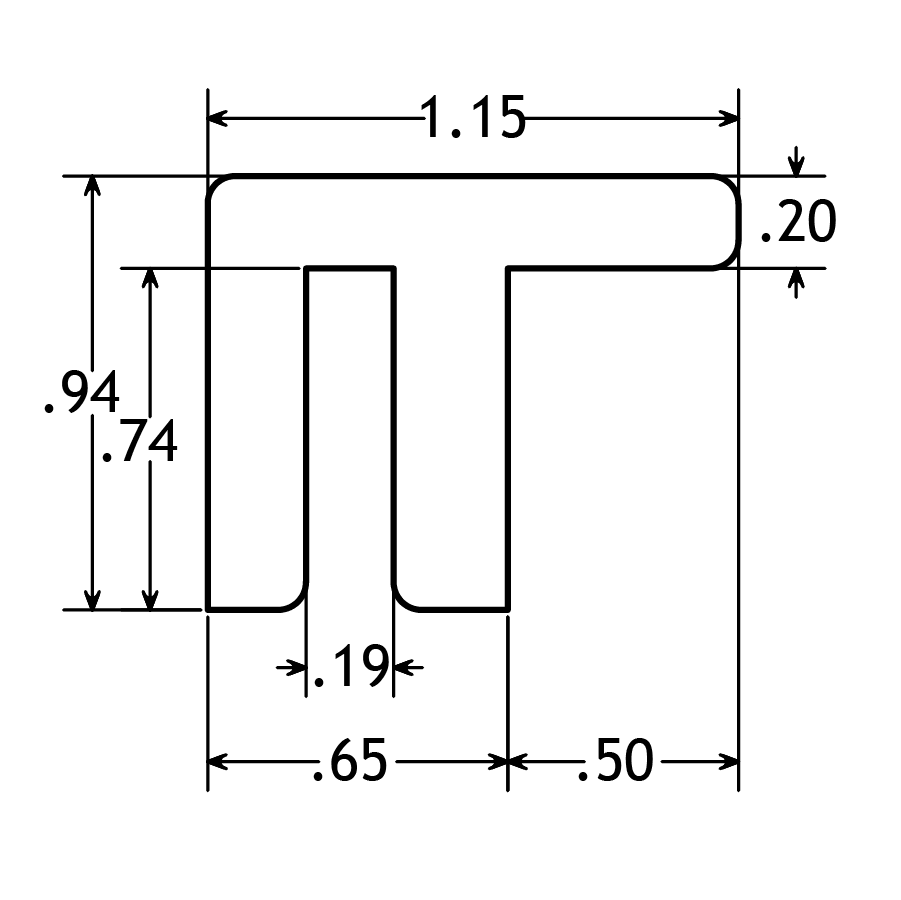

| CTU1518LEGL120 | UHMW | 10 Ft | 3/16" | .94" | U | WHITE | 1.15" | ||

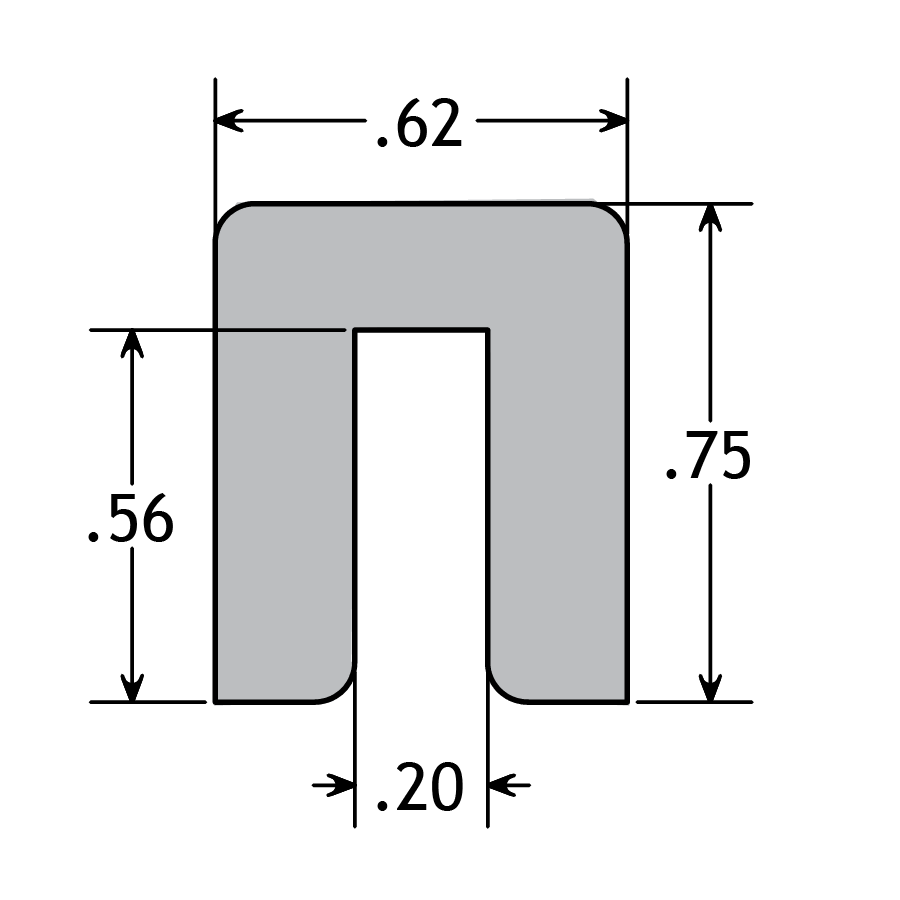

| CTP1210L240 | PLUS | 20 Ft | 3/16" | .75" | U | GREY | .62" | ||
| CTP1210L120 | PLUS | 10 Ft | 3/16" | .75" | U | GREY | .62" | ||

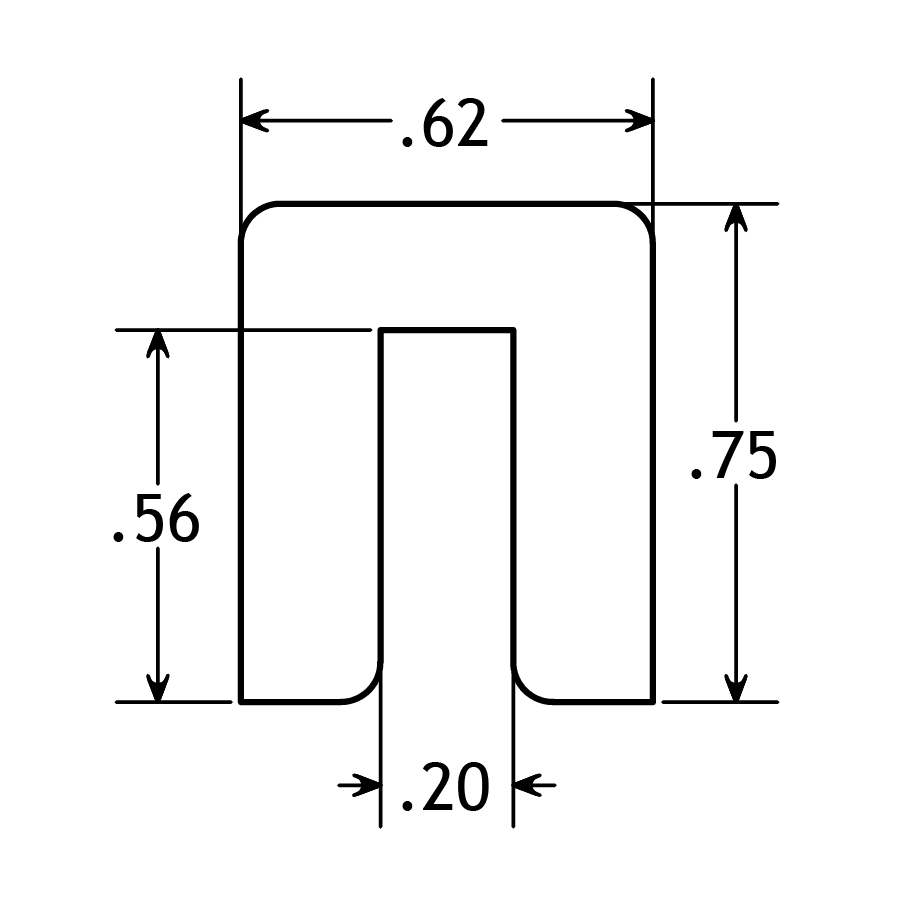

| CTU1210L240 | UHMW | 20 Ft | 3/16" | .75" | U | WHITE | .62" | ||
| CTU1210L120 | UHMW | 10 Ft | 3/16" | .75" | U | WHITE | .62" |
