POBCO Roll End Bearings (Blind Bore)
Available in POBCO-B Wood Bearing Material and a variety of POBCO Plastics including POBCO Ultra-D (UHMWPE), POBCO Plus (food grade fluid lube-filled UHMWPE) POBCO Nylons and POBCO PTFE (High Temp)
Some sizes listed below. Many other sizes available, please inquire.

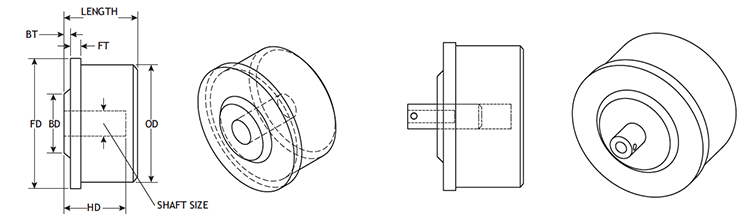

Blind-Bore Roll End Bearings
Blind Bore For Shafts up to 1-1/4" long
| Tubing Outside Dia. FD |
Tubing Gauge | I.D. Metal Tubing OD |
Length | FT | BT | BD | HD | Part No.** |
| 1-1/2 | 16 14 |
1.370 1.334 |
1-1/2 | 3/16 | 1/16 | 1 | 1-1/4 | BB*-24T16 BB*-24T14 |
| 1.660 (1-1/4" Pipe) |
Sch. 40 Sch. 80 |
1.380 1.278 |
1-1/2 | 3/16 | 1/16 | 1 | 1-1/4 | BB*-20P40 BB*-20P80 |
| 1-3/4 | 16 14 |
1.620 1.584 |
1-1/2 | 3/16 | 1/16 | 1 | 1-1/4 | BB*-28T16 BB*-28T14 |
| 1.900 (1-1/2" Pipe) |
Sch. 40 Sch. 80 |
1.610 1.500 |
1-1/2 | 3/16 | 1/16 | 1-1/8 | 1-1/4 | BB*-24P40 BB*-24P80 |
| 2 | 16 14 |
1.870 1.834 |
1-5/8 | 1/4 | 1/8 | 1-1/8 | 1-1/4 | BB*-32T16 BB*-32T14 |
| 2-1/4 | 16 14 |
2.120 2.084 |
1-5/8 | 1/4 | 1/8 | 1-1/4 | 1-1/4 | BB*-36T16 BB*-36T14 |
| 2.375 (2" Pipe) |
Sch. 40 Sch. 80 |
2.067 1.939 |
1-5/8 | 1/4 | 1/8 | 1-3/8 | 1-1/4 | BB*-32P40 BB*-32P80 |
| 2-1/2 | 16 14 |
2.370 2.334 |
1-5/8 | 1/4 | 1/8 | 1-3/8 | 1-1/4 | BB*-40T16 BB*-40T14 |
| 3 | 16 14 |
2.870 2.834 |
1-3/4 | 1/4 | 1/8 | 1-5/8 | 1-1/4 | BB*-48T16 BB*-48T14 |
Blind Bore For Shafts up to 1-3/4” long
| Tubing Outside Dia. FD |
Tubing Gauge | I.D. Metal Tubing OD |
Length | FT | BT | BD | HD | Part No.** |
| 1-1/2 | 16 14 |
1.370 1.334 |
2-1/8 | 3/16 | 1/16 | 1 | 1-3/4 | BL*-24T16 BL*-24T14 |
| 1.740 | 1-1/2" EMT | 1.610 | 2-1/8 | 3/16 | 1/16 | 1 | 1-3/4 | BL*-24EMT |
| 1-3/4 | 16 | 1.620 | 2-1/8 | 3/16 | 1/16 | 1 | 1-3/4 | BL*-28T16 |
| 1.900 (1-1/2" Pipe) |
Sch. 40 Sch. 80 |
1.610 1.500 |
2-1/8 | 3/16 | 1/16 | 1-1/8 | 1-3/4 | BL*-24P40 BL*-24P80 |
| 2 | 18 16 14 11 |
1.902 1.870 1.834 1.760 |
2-1/8 | 3/16 | 1/16 | 1-1/8 | 1-3/4 | BL*-32T18 BL*-32T16 BL*-32T14 BL*-32T11 |
| 2.197 | 2" EMT | 2.067 | 2-1/8 | 1/4 | 1/8 | 1-1/4 | 1-3/4 | BL*-32EMT |
| 2-1/4 | 18 16 14 |
2.152 2.120 2.084 |
2-1/8 | 1/4 | 1/8 | 1-1/4 | 1-3/4 | BL*-36T18 BL*-36T16 BL*-36T14 |
| 2-3/8 | 16 | 2.245 | 2-1/8 | 1/4 | 1/8 | 1-3/8 | 1-3/4 | BL*-38T16 |
| 2.375 (2" Pipe) |
Sch. 40 Sch. 80 |
2.067 1.939 |
2-1/8 | 1/4 | 1/8 | 1-3/8 | 1-3/4 | BL*-32P40 BL*-32P80 |
| 2-1/2 | 18 16 14 11 |
2.402 2.370 2.334 2.260 |
2-1/8 | 1/4 | 1/8 | 1-1/2 | 1-3/4 | BL*-40T18 BL*-40T16 BL*-40T14 BL*-40T11 |
| 2-3/4 | 16 | 2.620 | 2-1/8 | 1/4 | 1/8 | 1-5/8 | 1-3/4 | BL*-44T16 |
| 2.875 (2-1/2" Pipe) |
Sch. 40 Sch. 80 |
2.469 2.323 |
2-1/8 | 1/4 | 1/8 | 1-5/8 | 1-3/4 | BL*-40P40 BL*-40P80 |
| 3 | 18 16 14 |
2.902 2.870 2.834 |
2-1/8 | 1/4 | 1/8 | 1-5/8 | 1-3/4 | BL*-48T18 BL*-48T16 BL*-48T14 |
| 3-1/4 | 16 13 |
3.120 3.060 |
2-1/8 | 1/4 | 1/8 | 1-3/4 | 1-3/4 | BL*-52T16 BL*-52T13 |
*Please Specify Bearing Material
**See Bearing Materials to complete Part Number.
For PVC pip, add suffix -PVC before completing part number.
For metal pipe, add suffix -M before completing part number.
