POBCO Molded Nylon Roll End Bearings

Bearings available for many tube and pipe sizes

Molded Nylon Roll End Bearings

Nylon bearings are designed to perform well in chemical environments, including Acid and Caustic operating conditions. They are
inexpensive and are normally supplied as grey molded blind-bore or thru-bore to press fit into pipe or tubing. Blindbore bearings can be converted to thru-bore by punching out the blind-bore end. Nylon materials are also available in other sizes and shapes such as sleeve bearings and blocks.

Note: POBCO Nylon is food compliant.
POBCO-B lube filled wood is often the best bearing material for acid and caustic operating conditions.

Click here for: Molded Nylon Roll End Bearing Pipe Specifications

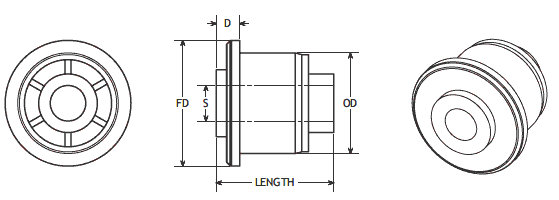

Molded Nylon Roll End Bearings for Pipe
(Thru-Bore)

Thru-Bore
Part No.
Tube
Size
FD-
Tube Dia.
OD-
Tube ID
Length S-
Shaft
D
MN12P4008 3/4" Sch. 40 1.050" .824" 1-3/4" 1/2" 1/4"
MN16P4008 1" Sch. 40 1.315" 1.049" 1-3/4" 1/2" 1/4"
MN20P4008 1-1/4" Sch. 40 1.660" 1.380" 1-3/4" 1/2" 3/8"
MN24P4008 1-1/2" Sch. 40 1.900" 1.610" 1-3/4" 1/2" 3/8"
MN24P4010 1-1/2" Sch. 40 1.900" 1.610" 1-3/4" 5/8" 3/8"
MN24P8008 1-1/2" Sch. 80 1.900" 1.500" 1-3/4" 1/2" 3/8"
MN24P8009 1-1/2" Sch. 80 1.900" 1.500" 1-3/4" 9/16" 3/8"
MN24P8010 1-1/2" Sch. 80 1.900" 1.500" 1-3/4" 5/8" 3/8"
MN32P4008 2" Sch. 40 2.375" 2.067" 1-3/4" 1/2" 3/8"
MN32P4009 2" Sch. 40 2.375" 2.067" 1-3/4" 9/16" 3/8"
MN32P4010 2" Sch. 40 2.375" 2.067" 1-3/4" 5/8" 3/8"
MN32P8008 2" Sch. 80 2.375" 1.939" 1-3/4" 1/2" 3/8"
MN32P8009 2" Sch. 80 2.375" 1.939" 1-3/4" 9/16" 3/8"
MN32P8010 2" Sch. 80 2.375" 1.939" 1-3/4" 5/8" 3/8"



Molded Nylon Roll End Bearings for Tubing
(Thru-Bore)

Thru-Bore
Part No.
Tube
Size
FD-
Tube Dia.
OD-
Tube ID
Length S-
Shaft
D
MN12EMT08 3/4" EMT .922" .824" 1-3/4" 1/2" 3/16"
MN16EMT08 1" EMT 1.163" 1.049" 1-3/4" 1/2" 1/4"
MN20EMT08 1-1/4" EMT 1.510" 1.380" 1-3/4" 1/2" 3/8"
MN20EMT09 1-1/4" EMT 1.510" 1.380" 1-3/4" 9/16" 3/8"
MN20EMT10 1-1/4" EMT 1.510" 1.380" 1-3/4" 5/8" 5/8"
MN24EMT08 1-1/2" EMT 1.740" 1.610" 1-3/4" 1/2" 3/8"
MN24EMT10 1-1/2" EMT 1.740" 1.610" 1-3/4" 5/8" 3/8"
MN24EMT09 1-1/2" EMT 1.740" 1.610" 1-3/4" 9/16" 3/8"
MN32EMT08 2" EMT 2.197" 2.067" 1-3/4" 1/2" 3/8"
MN32EMT09 2" EMT 2.197" 2.067" 1-3/4" 9/16" 3/8"
MN32EMT10 2" EMT 2.197" 2.067" 1-3/4" 5/8" 3/8"
MN361608 2-1/4" 16 ga. 2.250" 2.120" 1-3/4" 1/2" 3/8"
MN361609 2-1/4" 16 ga. 2.250" 2.120" 1-3/4" 9/16" 3/8"
MN361808 2-1/4" 18 ga. 2.250" 2.120" 1-3/4" 1/2" 3/8"
MN361809 2-1/4" 18 ga. 2.250" 2.120" 1-3/4" 9/16" 3/8"
MN401608 2-1/2" 16 ga. 2.500" 2.370" 1-3/4" 1/2" 3/8"
MN401609 2-1/2" 16 ga. 2.500" 2.370" 1-3/4" 9/16" 3/8"
MN441607 2-3/4" 16 ga. 2.750" 2.620" 1-3/4" 7/16" 3/8"

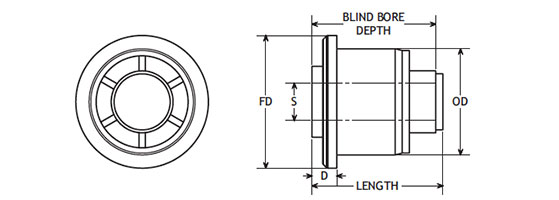

Molded Nylon Roll End Bearings for Pipe
(Blind-Bore)


Part No.
Tube
Size
FD-
Tube
Dia.
OD-
Tube
ID
Depth Length S-
Shaft
D
BBMN12P4008 3/4" Sch. 40 1.050" .824" 1.75” 1.85” 1/2" 1/4"
BBMN16P4008 1" Sch. 40 1.315" 1.049" 1.75” 1.85” 1/2" 1/4"
BBMN20P4008 1-1/4" Sch. 40 1.660" 1.380" 1.75” 1.85” 1/2" 3/8"
BBMN24P4008 1-1/2" Sch. 40 1.900" 1.610" 1.75” 1.85” 1/2" 3/8"
BBMN24P4010 1-1/2" Sch. 40 1.900" 1.610" 1.75” 1.85” 5/8" 3/8"
BBMN24P8008 1-1/2" Sch. 80 1.900" 1.500" 1.75” 1.85” 1/2" 3/8"
BBMN24P8009 1-1/2" Sch. 80 1.900" 1.500" 1.75” 1.85” 9/16" 3/8"
BBMN24P8010 1-1/2" Sch. 80 1.900" 1.500" 1.75” 1.85” 5/8" 3/8"
BBMN32P4008 2" Sch. 40 2.375" 2.067" 1.75” 1.85” 1/2" 3/8"
BBMN32P4009 2" Sch. 40 2.375" 2.067" 1.75” 1.85” 9/16" 3/8"
BBMN32P4010 2” Sch. 40 2.375" 2.067" 1.75” 1.85” 5/8" 3/8"
BBMN32P8008 2" Sch. 80 2.375" 1.939" 1.75” 1.85” 1/2" 3/8"
BBMN32P8009 2" Sch. 80 2.375" 1.939" 1.75” 1.85” 9/16" 3/8"
BBMN32P8010 2" Sch. 80 2.375" 1.939" 1.75” 1.85” 5/8" 3/8"

Molded Nylon Roll End Bearings for Tubing
(Blind-Bore)


Part No.
Tube
Size
FD-
Tube
Dia.
OD-
Tube
ID
Depth Length S-
Shaft
D
BBMN12EMT08 3/4" EMT .922" .824" 1.75” 1.85” 1/2" 3/16"
BBMN16EMT08 1" EMT 1.163" 1.049" 1.75” 1.85” 1/2" 1/4"
BBMN20EMT08 1-1/4" EMT 1.510" 1.380" 1.75” 1.85” 1/2" 3/8"
BBMN20EMT09 1-1/4" EMT 1.510" 1.380" 1.75” 1.85” 9/16" 3/8"
BBMN20EMT10 1-1/4" EMT 1.510" 1.380" 1.75” 1.85” 5/8" 3/8"
BBMN24EMT08 1-1/2" EMT 1.740" 1.610" 1.75” 1.85” 1/2" 3/8"
BBMN24EMT10 1-1/2" EMT 1.740" 1.610" 1.75” 1.85” 5/8" 3/8"
BBMN24EMT09 1-1/2" EMT 1.740" 1.610" 1.75” 1.85” 9/16" 3/8"
BBMN32EMT08 2" EMT 2.197" 2.067" 1.75” 1.85” 1/2" 3/8"
BBMN32EMT09 2" EMT 2.197" 2.067" 1.75” 1.85” 9/16" 3/8"
BBMN32EMT10 2" EMT 2.197" 2.067" 1.75” 1.85” 5/8" 3/8"
BBMN361608 2-1/4" 16 ga. 2.250" 2.120" 1.75” 1.85” 1/2" 3/8"
BBMN361609 2-1/4" 16 ga. 2.250" 2.120" 1.75” 1.85” 9/16" 3/8"
BBMN361808 2-1/4" 18 ga. 2.250" 2.120" 1.75” 1.85” 1/2" 3/8"
BBMN361809 2-1/4" 18 ga. 2.250" 2.120" 1.75” 1.85” 9/16" 3/8"
BBMN401608 2-1/2" 16 ga. 2.500" 2.370" 1.75” 1.85” 1/2" 3/8"
BBMN401609 2-1/2" 16 ga. 2.500" 2.370" 1.75” 1.85” 9/16" 3/8"
