POBCO Hanger Bearings
Materials Available POBCO-B Wood Bearing Material and a variety of POBCO Plastics including
POBCO UHMW, Plus (lube-Filled UHMW), Nylon*, Nylon MD*, PTFE, POBLON and ERTALYTE®
* Nylon & Nylon MD (Nylatron®) DF Series Supplied with Locking Tabs (Not Pins) to prevent rotation in Hanger.

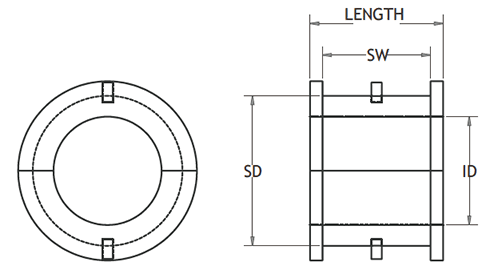

Hanger Styles 20B, 26B, 28B, 220, 226, 326
ID |
SD |
SW |
Length |
Part No.* |
1" |
1-1/2" |
1-1/16" |
1-7/16" |
DF*-162423 |
1-1/4" |
2-1/8" |
1-9/16" |
1-15/16" |
DF*-203431 |
1-1/2" |
2-1/8" |
1-9/16" |
1-15/16" |
DF*-243431 |
2" |
2-3/4" |
1-9/16" |
1-15/16" |
DF*-324431 |
2-7/16" |
3-1/4" |
2-3/8" |
2-15/16" |
DF*-395247 |
3" |
4" |
2-3/8" |
2-15/16" |
DF*-486447 |
3-7/16" |
4-3/4" |
3-1/8" |
3-15/16" |
DF*-557663 |
3-15/16" |
5-1/4" |
3-1/8" |
3-15/16" |
DF*-638463 |
4-7/16" |
5-13/16" |
4-1/4" |
4-15/16" |
DF*-719379 |
|
 |

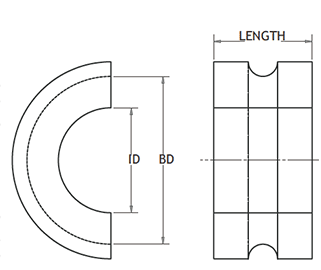

Hanger Styles 17, 18B, 19B, 40
ID |
BD |
Length |
Part No.* |
1" |
1-1/2" |
1-7/16" |
CA*-162423 |
1-1/2" (6" trough) |
2" |
1-15/16" |
CA*-243231 |
1-1/2" (9" trough) |
2-3/8" |
1-15/16" |
CA*-243831 |
2" |
3" |
1-15/16" |
CA*-324831 |
2-7/16" |
3-11/16" |
2-15/16" |
CA*-395947 |
3" |
4-1/8" |
2-15/16" |
CA*-486647 |
3-7/16" |
4-11/16" |
3-15/16" |
CA*--557563 |
|
 |

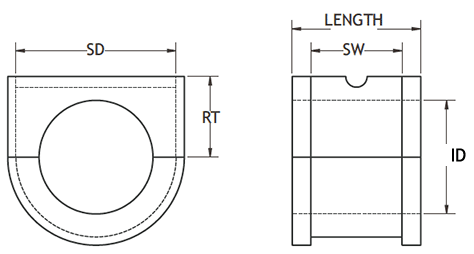

Hanger Styles 16B, 216, 216F, 230, 316
ID |
SD |
SW |
RT |
Length |
Part No.* |
1" |
1-9/16" |
1-1/8" |
1" |
1-7/16" |
RH*-162523 |
1-1/2" |
2-1/4" |
1-3/8" |
1-3/8" |
1-15/16" |
RH*-243631 |
2" |
3-14/" |
1-5/8" |
1-5/8" |
1-15/16" |
RH*-325231 |
2-7/16" |
4" |
1-5/8" |
2-1/8" |
2-15/16" |
RH*-396447 |
3" |
4-1/2" |
2-1/8" |
2-1/4" |
2-15/16" |
RH*-487247 |
3-7/16" |
4-7/8" |
2-11/16" |
2-7/16" |
3-15/16" |
RH*-557863 |
3-15/16" |
5-3/8" |
3" |
2-11/16" |
3-15/16" |
RH*-638663 |
4-7/16" |
6-3/16" |
4-1/4" |
3-1/4" |
4-15/16" |
RH*-719979 |
|
 |

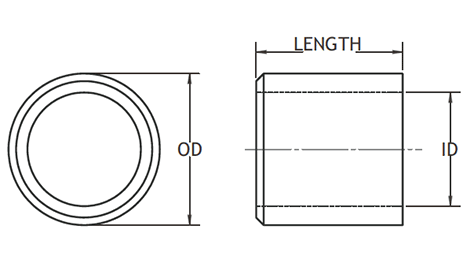

Hanger Styles 200A, 300A
ID |
OD |
Length |
Part No.* |
1-1/2" |
2" |
1-5/16" |
SL*-243231 |
2" |
2-1/2" |
1-15/16" |
SL*-324031 |
2-7/16" |
2-15/16" |
2-15/16" |
SL*-394747 |
3" |
3-1/2" |
2-15/16" |
SL*-485647 |
3-7/16" |
4-1/8" |
3-15/16" |
SL*-556563 |
* Please specify Bearing Material ¾ Other Sizes, Plastics and Shapes Available ¾ |
 |
