POBCO Heavy Duty ABEC-1 Precision Roll End Bearings

Black Thermoplastic Housings (conductive polypropylene) with precision chrome shielded bearing offer higher load and higher speed capabilities and quiet operation.

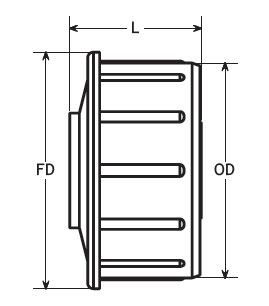

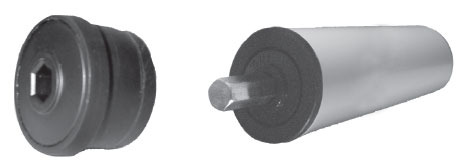

ABEC1 Sketch ABEC1 Photo

POBCO Part#	Suitable For	Bore	FD	OD	Length
HDTP24P4007CS	1-1/2" Sch. 40 Pipe	7/16 Hex	1.87	1.61	1.13
HDTP31T1607CS	1.90, 16 Gauge	7/16 Hex	1.89	1.77	1.22
HDTP40T1111CS	2-1/2" Dia., 11 Gauge	11/16 Hex	2.47	2.26	1.39

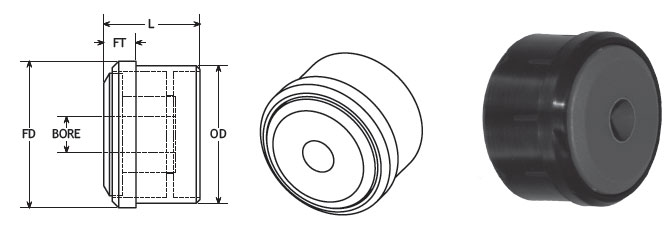

POBCO Idler Roll End Ball Bearing

Black polyamide housing with grey polyamide protective shield cover. Chrome steel bearing type #6202-2RS inside. Metric size only. Light Duty Application

Idler Roll End Ball Bearing

POBCO Part#	Suitable For	Bore	FD	OD	Length	FT
LDTP50mm12mm	50mm Dia. 1.5mm Wall Tubing	12mm	50mm	47mm	30mm	11mm
LDTP50mm14mm	50mm Dia. 1.5mm Wall Tubing	14mm	50mm	47mm	30mm	11mm
