POBCO Lumber Chain Guides

Guide for 81X and H78 chain are commonly furnished in Natural UHMW or Black Hi-Wear UHMW for additional abrasion resistance. Send your drawing or sample for custom quotation.

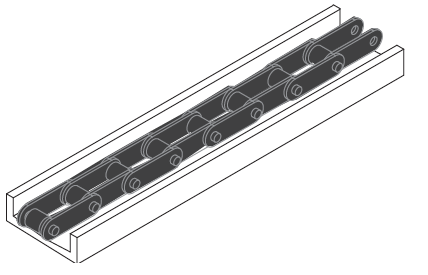

Lumber Chain Guide

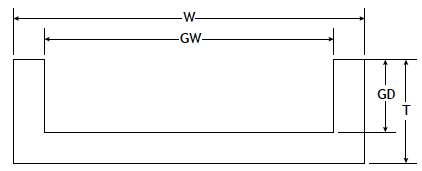

Style 1
PART NO.	T	W	GD	GW	CHAIN NO.	MATERIAL
CGU4010L120	1	3	5/8	2-1/2	81X	UHMW
CGU5614L120	1-1/4	4-1/4	7/8	3-1/2	H78	UHMW
CGCP3416L120	1-1/2	3-1/8	1	2-1/8	81X	Black Hi-Wear UHMW
CGCP4412L120	1-1/4	3-3/4	3/4	2-3/4	81X	Black Hi-Wear UHMW
CGCP5614L120	1-1/4	4-1/4	7/8	3-1/2	H78	Black Hi-Wear UHMW

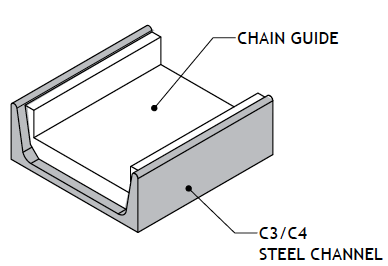

Machined to Fit Inside C3 or C4 Steel Channel

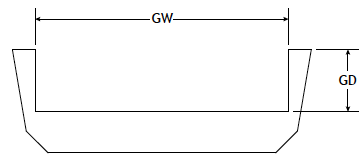

Style 2
PART NO.	CHANNEL	GW	GD	CHAIN NO.	MATERIAL
CGU4912L120S	C4	3-1/16	3/4	81X	UHMW
CGU3112L120S	C3	1-15/16	3/4	81X	UHMW
CGCP4912L120S	C4	3-1/16	3/4	81X	Black Hi-Wear UHMW
CGCP3112L120S	C3	1-15/16	3/4	81X	Black Hi-Wear UHMW

Lumber Chain Guide

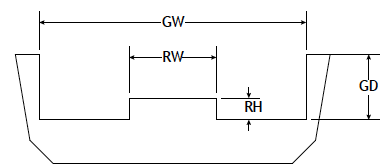

Style 3
PART NO.	CHANNEL	GW	GD	RW	RH	CHAIN NO.	MATERIAL
CGU3106L120S	C4	1-15/16	3/8	1	1/8	81X	UHMW
CGU3105L120S	C3	1-15/16	5/16	1	1/8	81X	UHMW
CGCP3106L120S	C4	1-15/16	3/8	1	1/8	81X	Black Hi-Wear UHMW
CGCP3105L120S	C3	1-15/16	5/16	1	1/8	81X	Black Hi-Wear UHMW
