POBCO Wear Strip

Chain and Cable Guides

Roller Chain Guide Available in POBCO-B Wood Bearing Material and a variety of POBCO Plastics, including:

Guide Rail Wear Strip Profile 1
Profile 1
Guide Rail Wear Strip Profile 2
Profile 2

Chain and Cable Guides Profile 1 and 2

ANSI
Chain
No.
T** W** GD GW Part No.*
2040
2050
2060
2080
2100
2120
5/16
3/8
3/8
1/2
5/8
5/8
1-1/4
1-1/4
1-1/2
2
2-1/4
2-3/4
1/8
5/32
3/16
1/4
5/16
3/8
7/8
1
1-1/4
1-9/16
1-7/8
2-1/4
P*-2040L
P*-2050L
P*-2060L
P*-2080L
P*-2100L
P*-2120L




Guide Rail Wear Strip Profile 3
Profile 3
Guide Rail Wear Strip Profile 4
Profile 4
Guide Rail Wear Strip Profile 5
Profile 5
Guide Rail Wear Strip Profile 6
Profile 6

Chain and Cable Guides Profile 3&4

ANSI
Chain
No.
T** W** GD GW RH Part No.*
2040
2050
2060
2080
2100
2120
1/2
1/2
5/8
5/8
3/4
7/8
1
1-1/4
1-1/2
2
2-1/4
3
1/4
9/32
5/16
3/8
7/16
9/16
3/4
1
1-1/4
1-1/2
1-13/16
2-1/4
1/8
5/32
3/16
1/4
5/16
3/8
P*-2040L
P*-2050L
P*-2060L
P*-2080L
P*-2100L
P*-2120L

Chain and Cable Guides Profile 5&6

ANSI
Chain
No.
T** W** RW RH Part No.*
2040
2050
2060
2080
2100
2120
5/16
5/16
5/16
3/8
1/2
1/2
1
1-1/4
1-1/4
1-1/2
2
2-1/4
.290
.350
.480
.600
.720
15/16
.100
.120
.140
.180
.260
.260
P*-2040L
P*-2050L
P*-2060L
P*-2080L
P*-2100L
P*-2120L

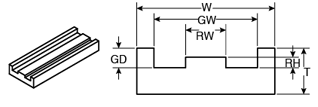

Guide Rail Wear Strip Profile 7
Profile 7

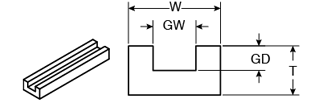

Guide Rail Wear Strip Profile 8
Profile 8

Chain and Cable Guides Profile 7

ANSI
Chain
No.
T** W** GD GW RW RH Part No.*
2040
2050
2060
2080
2080
2100
5/16
3/8
1/2
1/2
1/2
5/8
1
1-1/4
1-1/2
2
2-1/16
2-1/4
.140
3/16
.213
1/4
1/4
5/16
11/16
13/16
1-1/8
1-7/16
1-1/2
1-3/4
1/4
5/16
7/16
9/16
9/16
.72
.080
.100
.115
.130
.130
.210
P7*-2040L
P7*-2050L
P7*-2060L
P7*-2080L
P7*-2080HL
P7*-2100L

Chain and Cable Guides Profile 8

Cable
Size
T** W** GD GW Part No.*
3/8 Diameter
1/2 Diameter
5/8 Diameter
1/2
5/8
3/4
15/16
1-13/16
1-5/16
1/4
3/8
7/16
7/16
9/16
11/16
P8*-06L
P8*-08L
P8*-10L


POBCO® Plastic Drive Rivets
POBCO Plastic Drive Rivet

L H Grip Part
No.
Min. Max.
3/4" .111 3/16" 1/2" RN-0412
1" .111 1/4" 3/4" RN-0416

POBCO Nylon Mounting Pin


POBCO Nylon Mounting Pin
#PMP-0306
3/16" O.D. x 3/8" Lg.

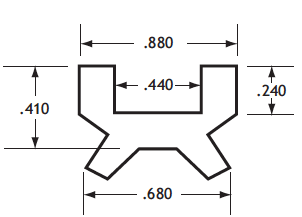

Ultra-D Cable Guide
Ultra-D Cable Guide
# CHCU2120L120


*Profile No. & Material Code No. must be added to Part No.
**T and W dimensions are standard.
Other thicknesses, widths and lengths available.
