POBCO Ultra-D Coiled Wear Strip

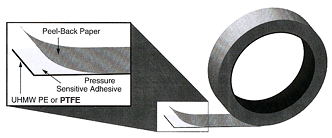

With or Without Pressure Sensitive Adhesive PSA
- Continuous coils yield less waste and are easy to store and handle.
- With PSA, allows less labor-intensive installation.
- With PSA, best option when mechanical fastening is not practical.
- Applications are many and include conveyor side liner, drawer and
door glides, wear strips, chain guides, scraper blades, and chute liners.
Thickness Range .003" to.125" (+/-10%)
Width Range 1/4" to 18" (+/-1/32")
Lengths normally 50 or 100 ft coils
Natural (for FDA/USDA compliance)
Black Color (outdoor use or cosmetic reasons) see details below
| Common Sizes - Others Available - Please Inquire | ||
Dimensions |
Part Number with PSA |
Part Number without PSA |
| .010 x 1/2" | WT*010008C50A | WT*010008C50 |
| .010 x 1" | WT*010016C50A | WT*010016C50 |
| .010 x 1-1/2" | WT*010024C50A | WT*010024C50 |
| .010 x 3" | WT*010048C50A | WT*010048C50 |
| .030 x 1/2" | WT*030008C50A | WT*030008C50 |
| .030 x 1" | WT*030016C50A | WT*030016C50 |
| .030 x 1 1/2" | WT*030024C50A | WT*030024C50 |
| .030 x 3" | WT*030048C50A | WT*030048C50 |
| .040 x 1/2" | WT*040008C50A | WT*040008C50 |
| .040 x 1" | WT*040016C50A | WT*040016C50 |
| .040 x 1 1/2" | WT*040024C50A | WT*040024C50 |
| .040 x 3" | WT*040048C50A | WT*040048C50 |
| .060 x 1/2" | WT*060008C50A | WT*060008C50 |
| .060 x 1" | WT*060016C50A | WT*060016C50 |
| .060 x 1 1/2" | WT*060024C50A | WT*060024C50 |
| .060 x 3" | WT*060048C50A | WT*060048C50 |
| .125 x 1/2" | WT*125008C50A | WT*125008C50 |
| .125 x 1" | WT*125016C50A | WT*125016C50 |
| .125 x 1 1/2" | WT*125024C50A | WT*125024C50 |
| .125 x 3" | WT*125048C50A | WT*125048C50 |
| .250 x 1" | N/A | WS*0416C100 |
| .250 x 1 1/2" | N/A | WS*0424C100 |
| .250 x 2" | N/A | WS*0432C100 |
| .250 x 3" | N/A | WS*0448C100 |
*Black is special run only for 1/4" thick. Minimums may apply.
**Add "B" to the end of the part number if required in BLACK color.
***Technical data available, please inquire.
****Special lengths and tolerances may be available, please inquire.
*****HIGH TEMP MATERIALS AVAILABLE - PLEASE INQUIRE
