POBCO Ultra D Treatment/Sewer System Wear Strip

Ultra D: UHMWPE Plastic

Materials:

ULTRA-D Starter Wearstrip ULTRA-D Filler Wearstrip


  For use with 1-3/8" Weld Washers

  For use with 1-3/8" Weld Washers

Ultra-D Starter Wearstrip

Part
Number

Thickness

Width

Length

Center
Line

WTSU-1 3/8" 2-5/8" 120° 1-5/16"
WTSU-2 3/8" 34" 120° 1-1/2"
WTSU-3 1/2" 2-1/2" 120° 1-1/4"
WTSU-4 1/2" 3" 120° 1-1/2"
WTSU-5 1/2" 3-1/2" 120° 1-3/4"
WTSU-6 1/2" 4" 120° 2"
WTSU-7 1/2" 5" 120° 2-1/2"
WTSU-8 5/8" 2-1/2" 120° 1-1/4"
WTSU-9 5/8" 3" 120° 1-1/2"
WTSU-10 5/8" 4" 120° 1/4"
WTSU-11 5/8" 5" 120° 2-1/2"

Ultra-D Starter Wearstrip

Part
Number

Thickness

Width

Length

Center
Line

WTFU-1 3/8" 2-5/8" 120° 1-5/16"
WTFU-2 3/8" 34" 120° 1-1/2"
WTFU-3 1/2" 2-1/2" 120° 1-1/4"
WTFU-4 1/2" 3" 120° 1-1/2"
WTFU-5 1/2" 3-1/2" 120° 1-3/4"
WTFU-6 1/2" 4" 120° 2"
WTFU-7 1/2" 5" 120° 2-1/2"
WTFU-8 5/8" 2-1/2" 120° 1-1/4"
WTFU-9 5/8" 3" 120° 1-1/2"
WTFU-10 5/8" 4" 120° 1/4"
WTFU-11 5/8" 5" 120° 2-1/2"



POBCO Weld Washers and Plastic Plugs

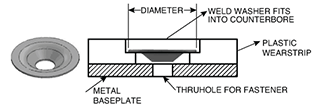

Water treatment wearstrips are fastened using stainless or carbon steel weld washers, and are covered with Ultra-D Plastic Plugs (Press Fit). Fastening Water Treatment Wearstrips

Weld Washers

Part
Number

Material

Diameter

WWCS22 Carbon Steel 1-3/8"
WWSS22 Stainless Steel 1-3/8"



ie. PPU-2208 1-3/8" Dia. x 1/2' Thick Plastic Plug

POBCO Tongue and Groove Wear Strip

Available in a variety of POBCO Plastics, including POBCO Ultra-D (UHMWPE), POBCO Plus (Food grade Fluid Lube-Filled UHMWPE), POBCO PTFE (Hi-Temp), POBCO SRU (Static-reduced UHMWPE), POBCO UH (Hi-Temp UHMWPE), POBCO Acetal (Delrin®) and POBCO NYLONS

Tongue and Groove Wear Strip

Part
Number*

Thickness

Length

TGWS*-0420L24 1/4" 24"
TGWS*-0620L24 3/8" 24"
TGWS*-0820L24 1/2" 24"
TGWS*-1220L24 3/4" 24"

POBCO Plastic Tongue & Groove Wear Strips are used in applications where an added Expansion and Contraction factor is necessary to provide binding and bucking.

Other Sizes & Shapes are Available
*Please Specify Material
**1/4" Plastic Drive Rivets
